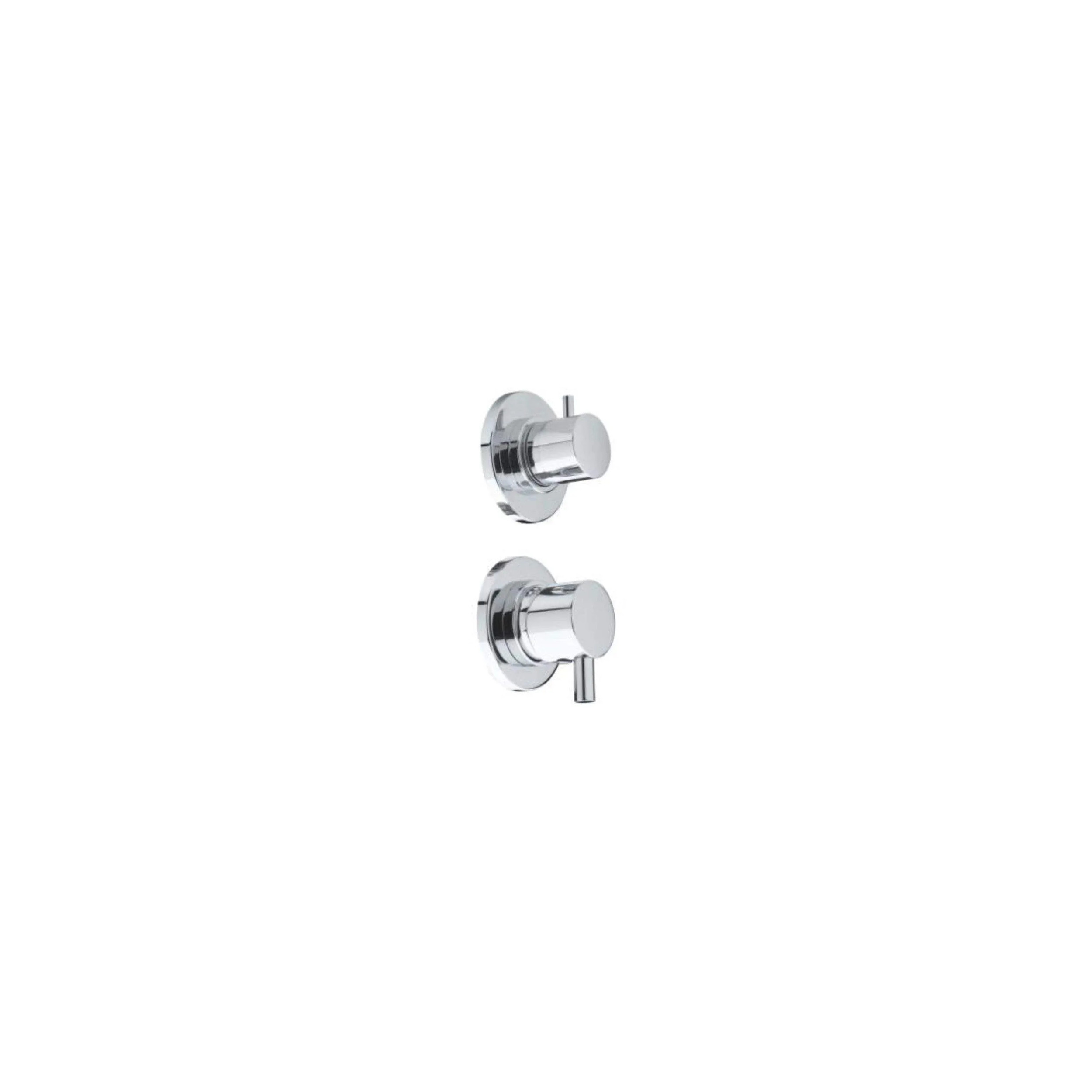

Chrome shower enclosure mixer with 3 functions

3-way shower fitting for thin walls of full shower enclosures, totems or shower columns.
Also suitable for boats, campers, chalets, mobile homes.

Access to wear parts (mechanical cartridge and reversing cartridge) from the front of the valve without removing the valve.

Chrome plated single lever shower mixer with 3 functions.

- Three functions, with 6 positions (3 main and 3 mixed).
- Chrome finish.
- Short metal Lotto shifters.
- Ceramic disc cartridge for mixer taps, diameter 40mm.
- Reversing cartridge with ceramic discs.
- Two 1/2" (15/21) female side feeds.
- Three 3/8" (12/17) female outlets.
- A high outlet, ideal to feed a head shower, a left side outlet for a hand shower, a right side outlet for side showers.
- Fixed centre distance.
- Fixing supplied for thin wall max. thickness 10 mm.
- Ring nut of the reverser in brass, external diameter 56 mm.
- Brass mixing valve clamping nut ring, external diameter 60 mm.
- Two chrome-plated rosettes in ABS.
- Reversing rose without pictograms.
