Bonde de douche 90 mm, sortie verticale 40 mm TOURBILLON, grille plate inox brossé
€32.83
Tax Included
(27.36 €HT + Ecotaxe €0.02HT)
Référence WIRQUIN : 30723747
Emplacement magasin :
Shower drain WIRQUIN 30723747 The shower drain TOURBILLON is designed for a tray Ø90 mm with a vertical outlet of Ø40 mm. Featuring a flat brushed stainless steel grille, it offers a maximum flow rate of 1500 liters per hour. Ideal for installation in compliance with the NF EN274 standard.
Safety guarantees
Delivery policy
Returns policy
Shower drain TOURBILLON, tray Ø90 mm, vertical outlet Ø40 mm, flat brushed stainless steel grille, NF EN274

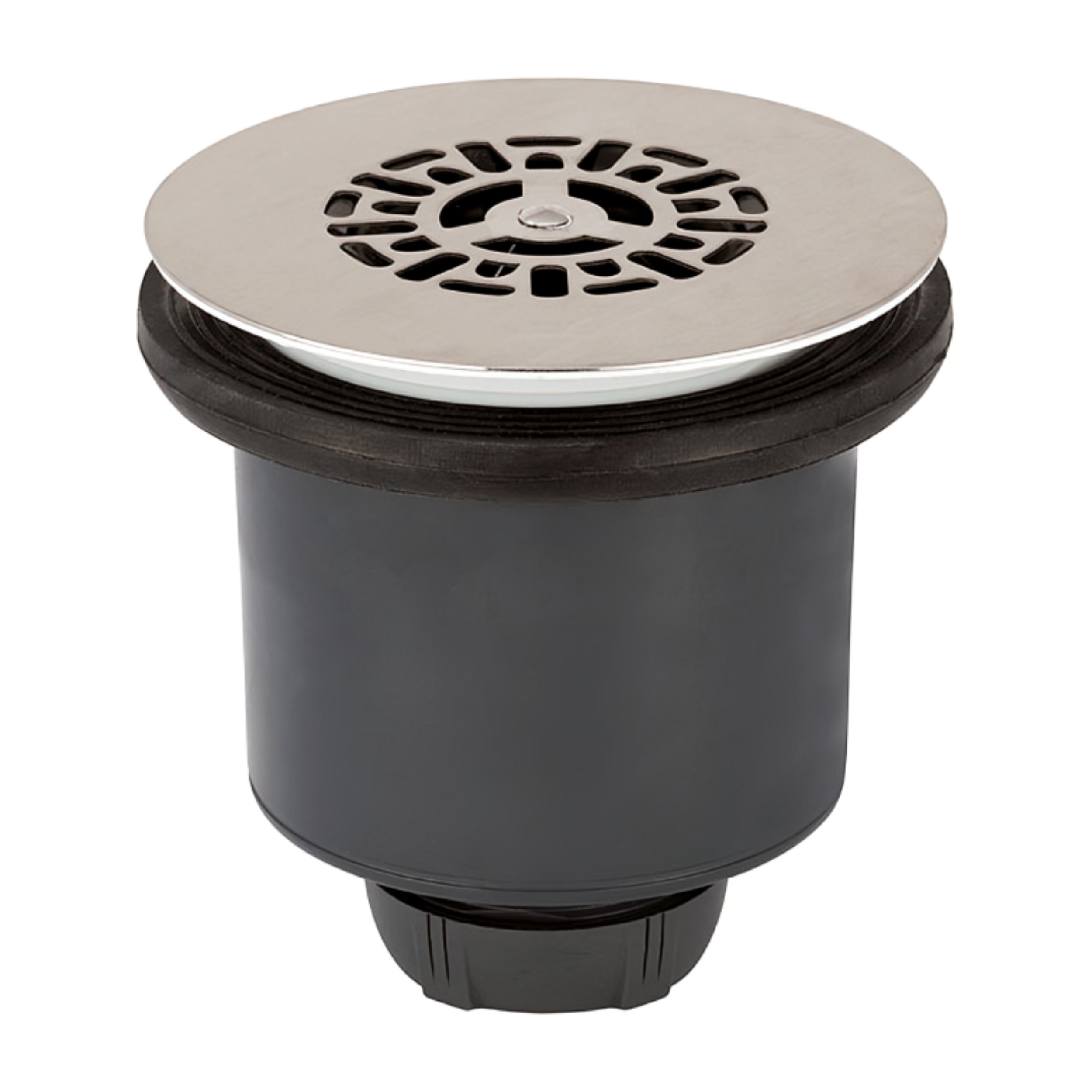

The shower drain TOURBILLON is designed to equip trays with Ø90 mm. It is indicated to be compliant with the EN274 standard and certified NF. The drain is equipped with a flat brushed stainless steel grille and a removable basket accessible from the top.

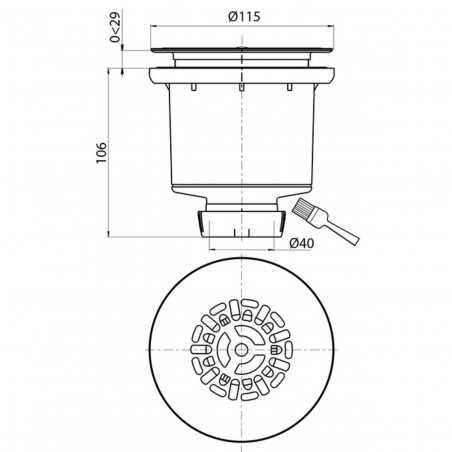

The flow rate is given at 25 L/min under 15 mm of water height. The drain has a covering seal, a water seal of 50 mm, and a vertical outlet Ø40 mm that can be screwed or glued. The space required under the tray is indicated as 106 mm.
- Product type: Shower drain
- Range / model: TOURBILLON
- Application: For tray Ø90 mm
- Compliance: EN274
- Certification: NF
- Grille: Flat
- Material of the grille: Brushed stainless steel
- Cleaning: Removable basket accessible from the top
- Flow rate: 25 L/min under 15 mm of water height
- Seal: Covering seal
- Water seal: 50 mm
- Outlet: Vertical
- Outlet diameter: Ø40 mm
- Connection: To be screwed or glued
- Space required under tray: 106 mm
- Barcode: 3375537235995
- Packaging: Box
- Manufacturer: WIRQUIN
- Reference: 30723747
Discover all the products in the WIRQUIN range.
3 Items
Data sheet
- Width (cm):
- 11.5
- Height (cm):
- 10.60
- Packaging:
- 1
- Nominal diameter (DN in mm) :
- 40
- Finishes :
- Inox brossé
- Maximum flow :
- 1500
- Certification:
- NF / EN274
- Fastening method :
- visser / à coller
Specific References
- EAN13
- 3375537235995
- EAN-13
- 3375537235995
- Location
- Reference to display
- WIRBO30723747
- Supplier reference
- 30723747
