Shower drain 90 mm, vertical outlet 40 mm TOURBILLON, brushed stainless steel flat grid
€32.83
Tax Included
(27.36 €HT + Ecotaxe €0.02HT)
Référence WIRQUIN : 30723747
Emplacement magasin : A3-G-082
WIRQUIN 30723747 Shower Drain The shower drain TOURBILLON is designed for a Ø90 mm shower tray with a vertical outlet of Ø40 mm. Equipped with a flat brushed stainless steel grid, it offers a maximum flow rate of 1500 liters per hour. Ideal for an installation compliant with NF EN274 standard.
Safety guarantees
Delivery policy
Returns policy
TOURBILLON Shower Drain, Ø90 mm shower tray, Ø40 mm vertical outlet, flat brushed stainless steel grid, NF EN274

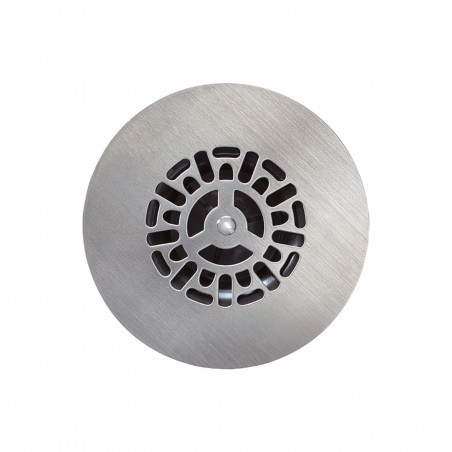

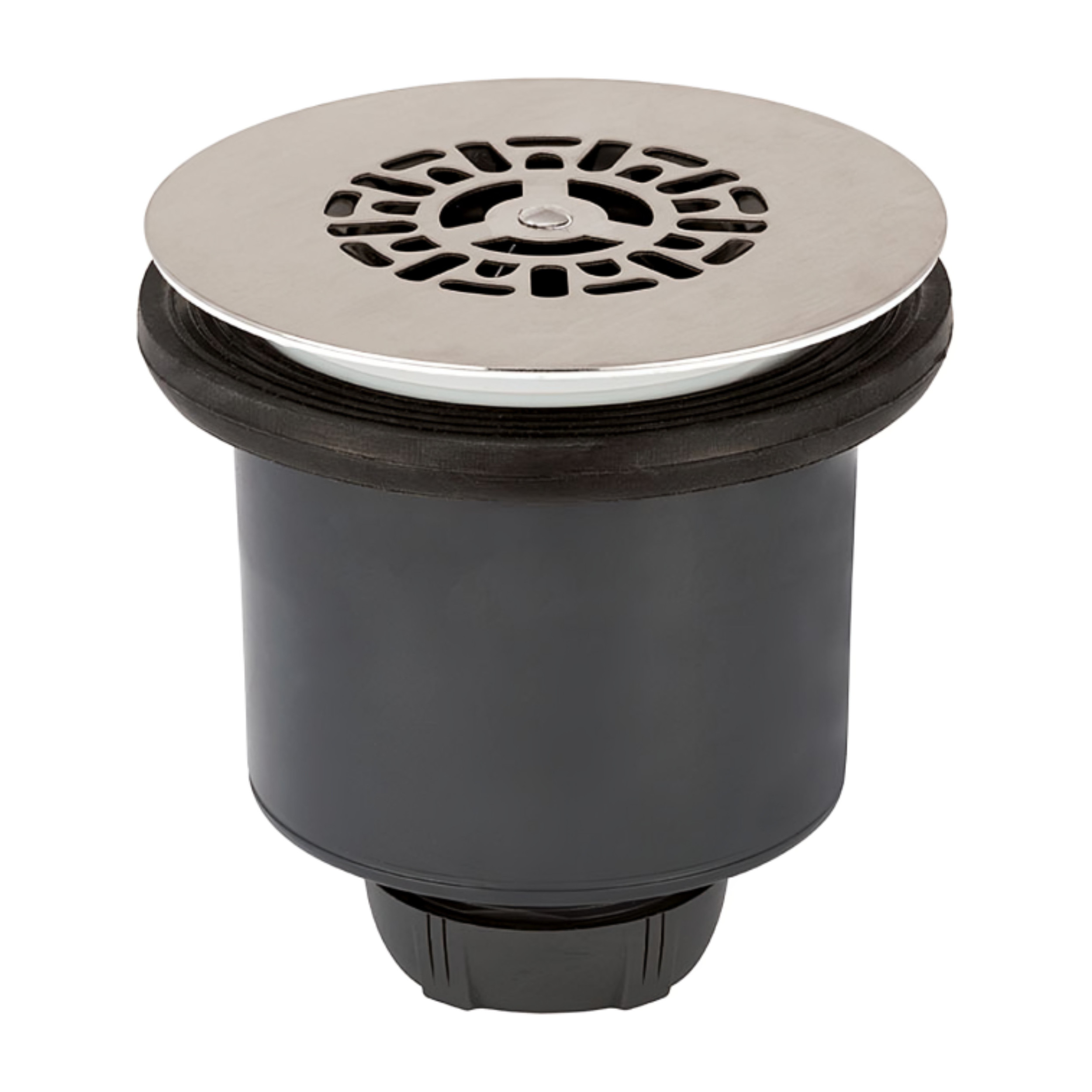

The TOURBILLON shower drain is designed to equip Ø90 mm shower trays. It is indicated as compliant with EN274 standard and certified NF. The drain is equipped with a flat brushed stainless steel grid and a removable basket accessible from the top.
The flow rate is given at 25 L/min under 15 mm of water height. The drain features a covering seal, a water seal of 50 mm, and a Ø40 mm vertical outlet to be screwed or glued. The under-tray clearance is indicated at 106 mm.
- Product type: Shower drain
- Range / model: TOURBILLON
- Application: For Ø90 mm shower tray
- Compliance: EN274
- Certification: NF
- Grid: Flat
- Grid material: Brushed stainless steel
- Cleaning: Removable basket accessible from the top
- Flow rate: 25 L/min under 15 mm of water height
- Seal: Covering seal
- Water seal: 50 mm
- Outlet: Vertical
- Outlet diameter: Ø40 mm
- Connection: To be screwed or glued

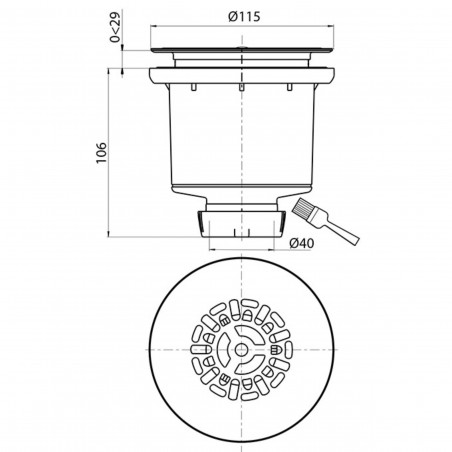

- Under-tray clearance: 106 mm
- Gencod: 3375537235995
- Packaging: Box
- Manufacturer: WIRQUIN
- Reference: 30723747
Discover all products from the WIRQUIN range.
1 Item
Data sheet
- Width (cm):
- 11.5
- Height (cm):
- 10.60
- Packaging:
- 1
- Nominal diameter (DN in mm) :
- 40
- Finishes :
- Inox brossé
- Maximum flow :
- 1500
- Certification:
- NF / EN274
- Fastening method :
- visser / à coller
Specific References
- EAN13
- 3375537235995
- EAN-13
- 3375537235995
- Location
- A3-G-082
- Reference to display
- WIRBO30723747
- Supplier reference
- 30723747
