Recommended operating pressure :
Flow :
- 6 l/mn at 3 bars by built-in flow limiter
- Flow rate adjustment by means of a threaded ring
- Anti-water hammer device
Flow time :
- 30 seconds (-10 / +5 seconds)
Hydraulic supply :
- Male G 3/4'' (20x27) in cold or premixed water
Thermal resistance :
- This valve resists a temperature of 75°C for 30 minutes in thermal shocks
Security:
- Non-rotating knob tamperproof by the user
- Red dot marker, wear-resistant and non-removable
Delivered with :
- 1 Flat gasket
- 1 Filter gasket
- 1 Clamp
- 2 Nuts 3/4'' (20x27) for 14x16 mm tube

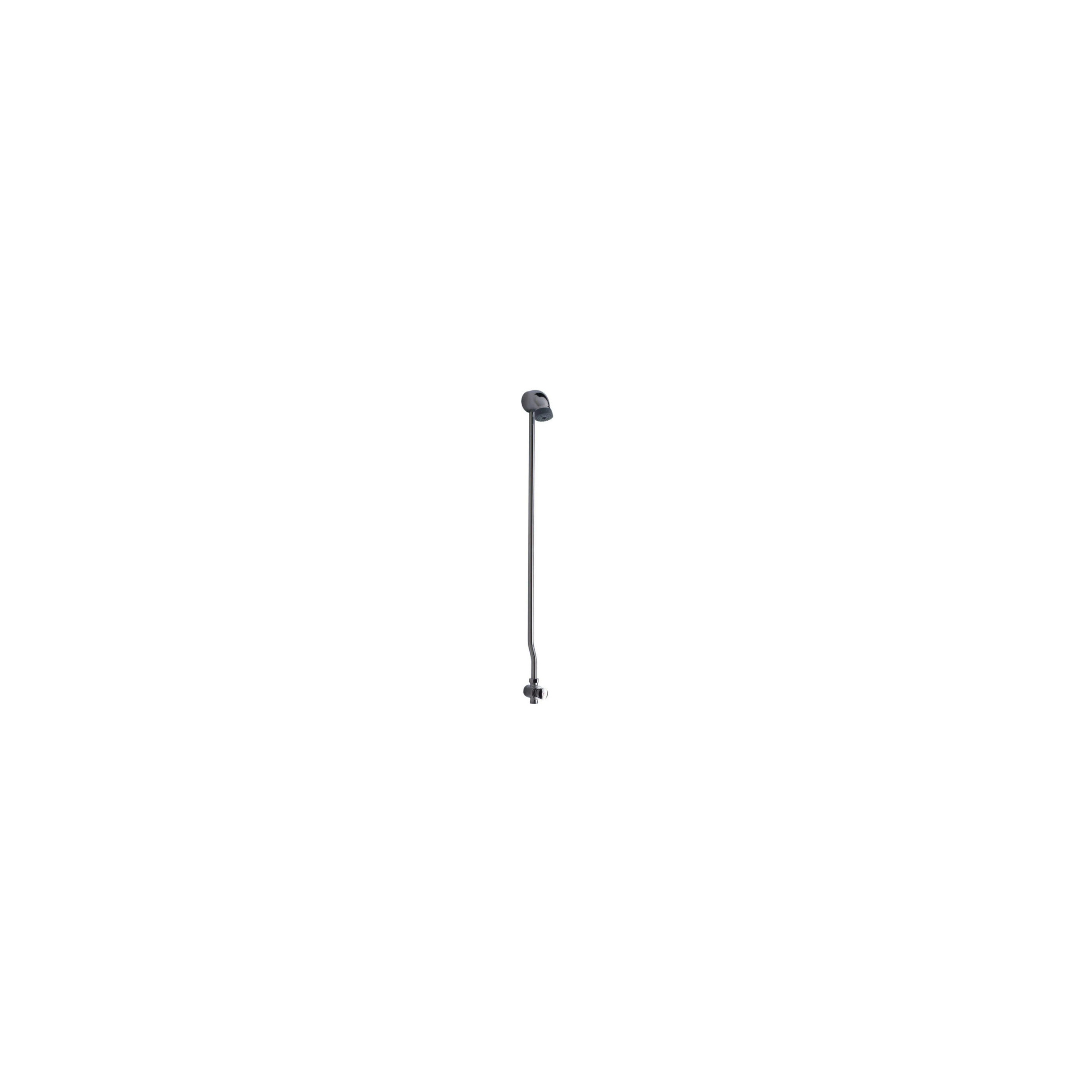

- 1 Fixed shower head with anti-limestone pins
Standards / Approvals :
- Acoustic class II
- Brass body in compliance with NF EN1982 / NF EN12164 / NF EN12165 standards
- Nickel-Chromium surface treatment according to NF EN12540
- Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
