Silent float valve horizontal SIAMP 95L WC supply 12x17

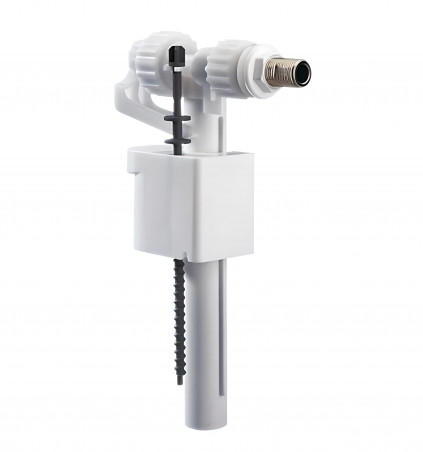

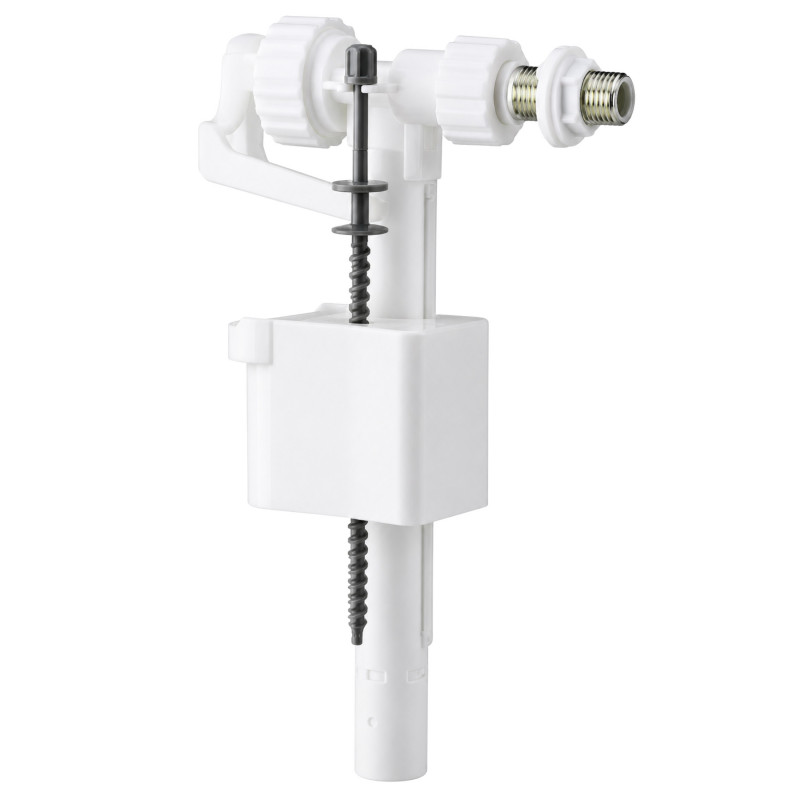

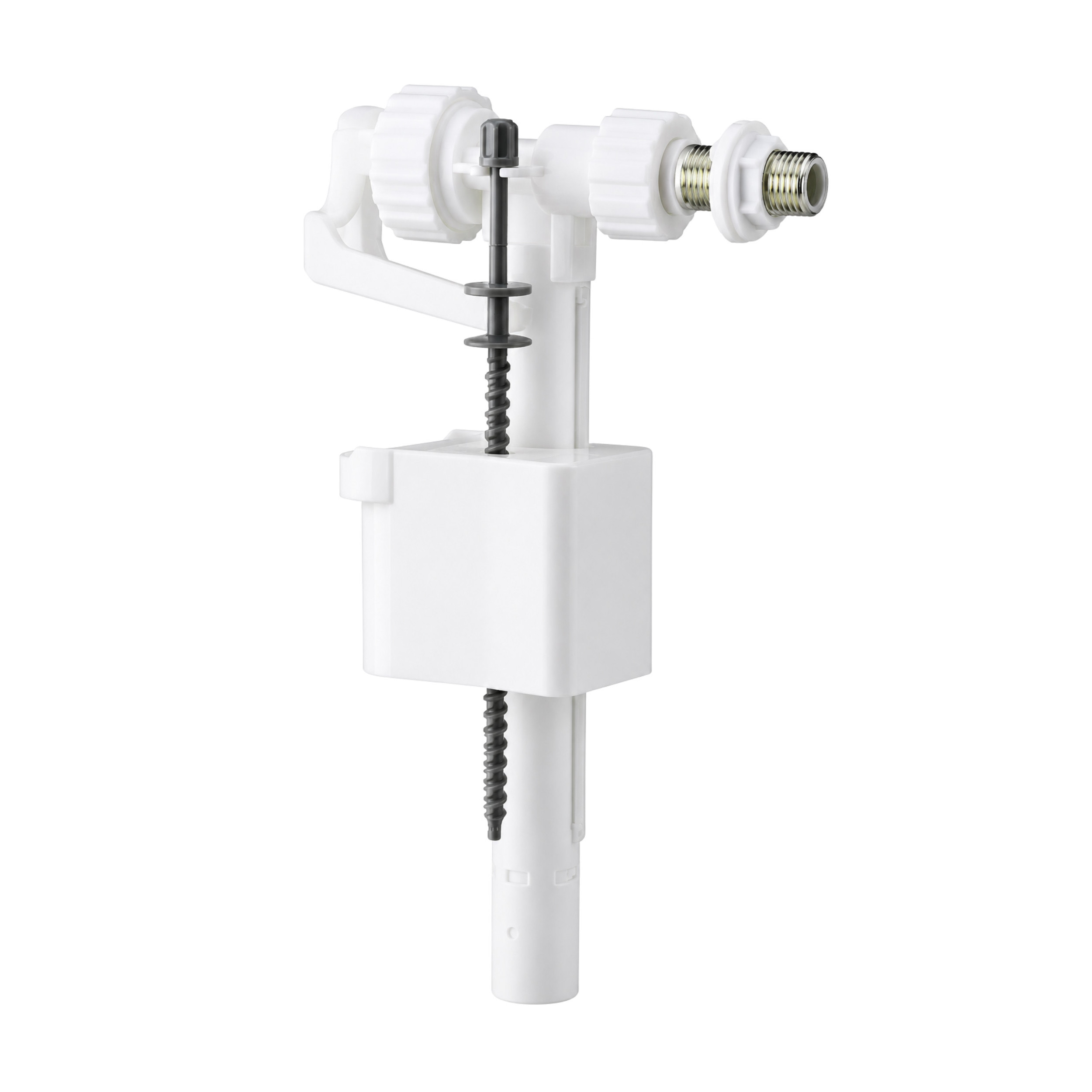

Silent horizontal float valve SIAMP 95L

The compact 95L float valve from SIAMP is designed for toilets with side supply, meeting KIWA, WRAS, DIN, and NF standards. This model is compatible with most cisterns, whether ceramic or plastic, and can be installed both as a first installation and as a replacement.

Equipped with a cuttable tube, it easily adapts to low-height cisterns. The integrated hydraulic closure prevents water hammer during filling, while its silent operation, acoustically classified as 1, ensures optimal comfort. The anti-siphon system adds to its quality, and the adjustable water level allows for water savings. Maintenance is easily done without disassembling the supply.

Technical specifications

• Manufacturer reference: 30950010
• EAN: 3247230002740
• Brand: SIAMP
• Type: Float valve
• Range: Compact 95L
• Supply: Side
• Closure type: Hydraulic
• Acoustic class: Class I
• NF: Yes

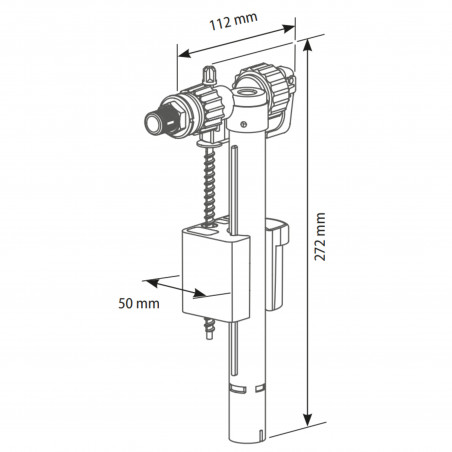

• Height: 270 mm
• Width: 112 mm
• Depth: 50 mm
• Operating range: 0.5 to 10 bars
• Pressure peak tolerance: up to 16 bars
• Filling flow rate at 3 bars: 8.4 L/min
• Connection material: Brass
• Connection finish: Nickel-plated
• Connection fitting: Male
• Inlet thread: 3/8" (12 x 17)
• Color: White
• Packaging: 1
• Warranty: 2 years
• Origin: Monaco
• Weight: 0.500 kg

Instructions for use

• Installation with side supply using 3/8" nickel-plated brass nipple.
• Cuttable tube for adaptation to low cisterns.
• Maintenance without disassembly.
• Integrated water level adjustment.
• Integrated anti-siphon.

Observations

• Compatible with adjacent and semi-low cisterns according to distributors.
• Check compatibility with your cistern before purchase.
