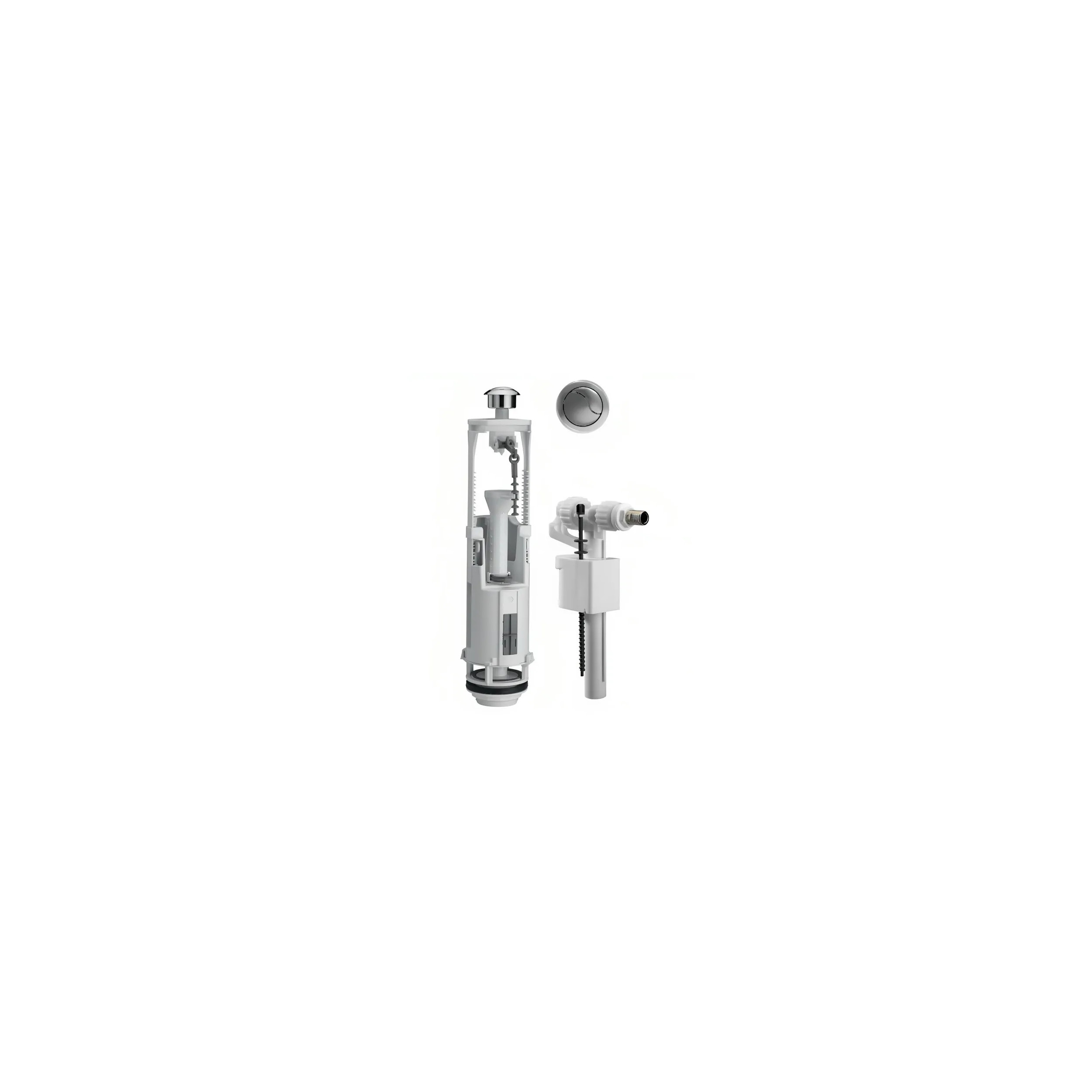

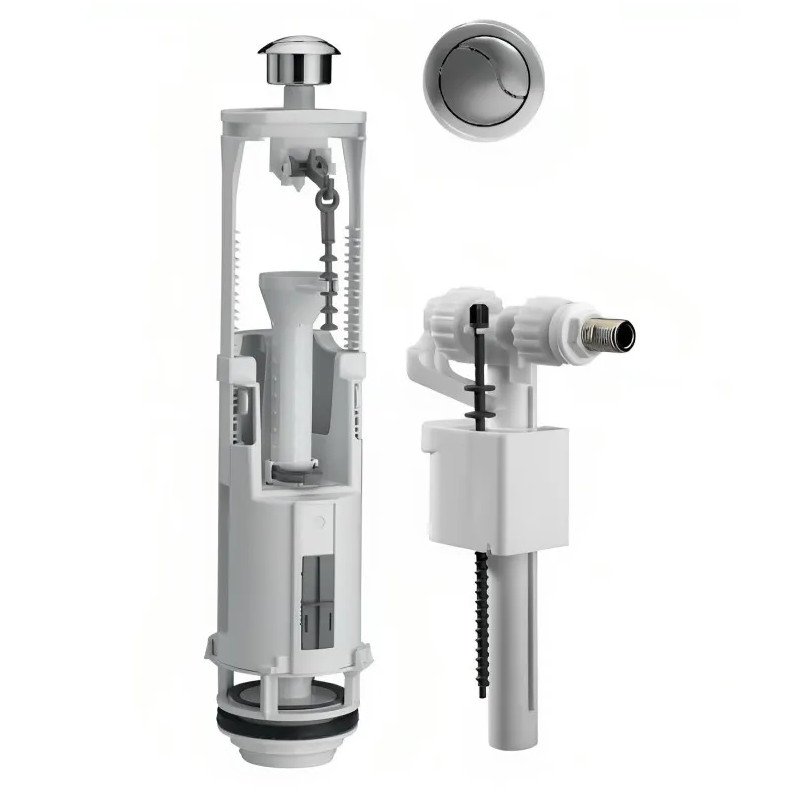

Complete OPTIMA S flush system for toilet with dual volume and 95L float

Complete OPTIMA S dual flush system with 95L float reference 37940010.

This flush mechanism is installed on SIAMP drains for renovating old mechanisms or for new installations if the cistern is dismantled.

- Telescopic overflow: manually adjustable without cutting

- Height-adjustable bracket in 10 mm increments, allows maintaining the cistern lid

- Dual volume push button with or without rosette

- Actuation force less than 20N

- Button offset tolerance +/- 15 mm

- Adjustable small flush and residual water level

- Powerful flush flow rate (3.5 l/s)

- Drain: made of ABS, very robust

- Flap: made of NR/EPDM ensures perfect sealing

- Drain seal: made of molded SBS elastomer, its elasticity and shape enhance sealing at the bottom of the cistern

- Bowl seal: made of foam, compensates for irregularities in the toilet bowl

Compact dual volume water-saving flush mechanism certified NF, model with bracket allowing the fixation of the cistern lid with significant possible offset, adjustable small flush and residual water level, adjustable telescopic overflow without cutting, self-adjusting button and chrome cup.

Adjustable height between 282 and 432 mm, lid hole diameter between 16 and 50 mm, evacuation hole diameter between 58 and 72 mm.

Delivered complete with bowl/cistern sealing gasket and cistern fixing screws
