Automatic Nickel Satin PVD Kitchen Sink Drain, Space Saving

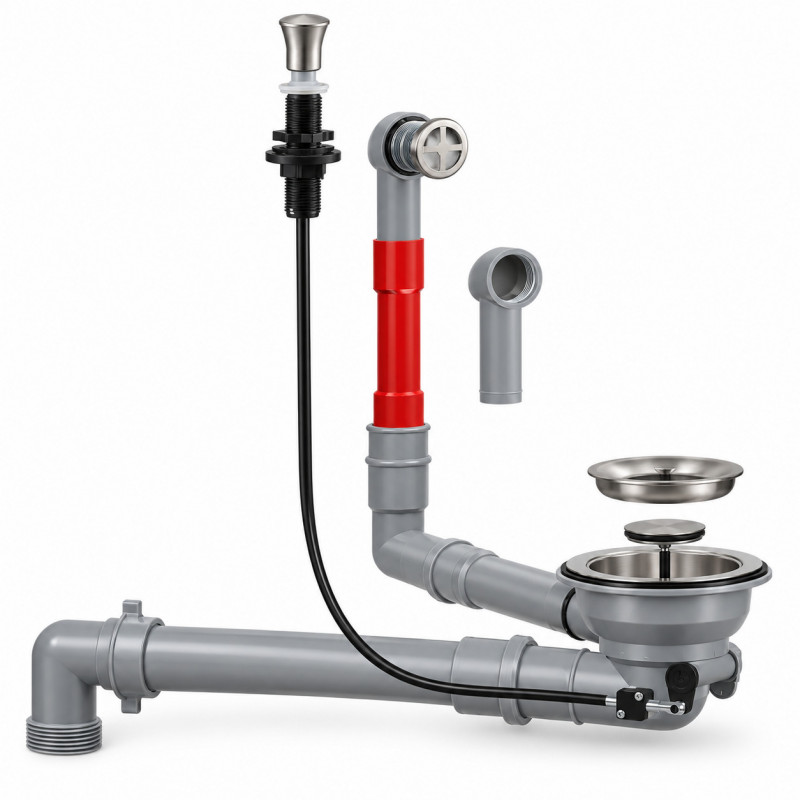

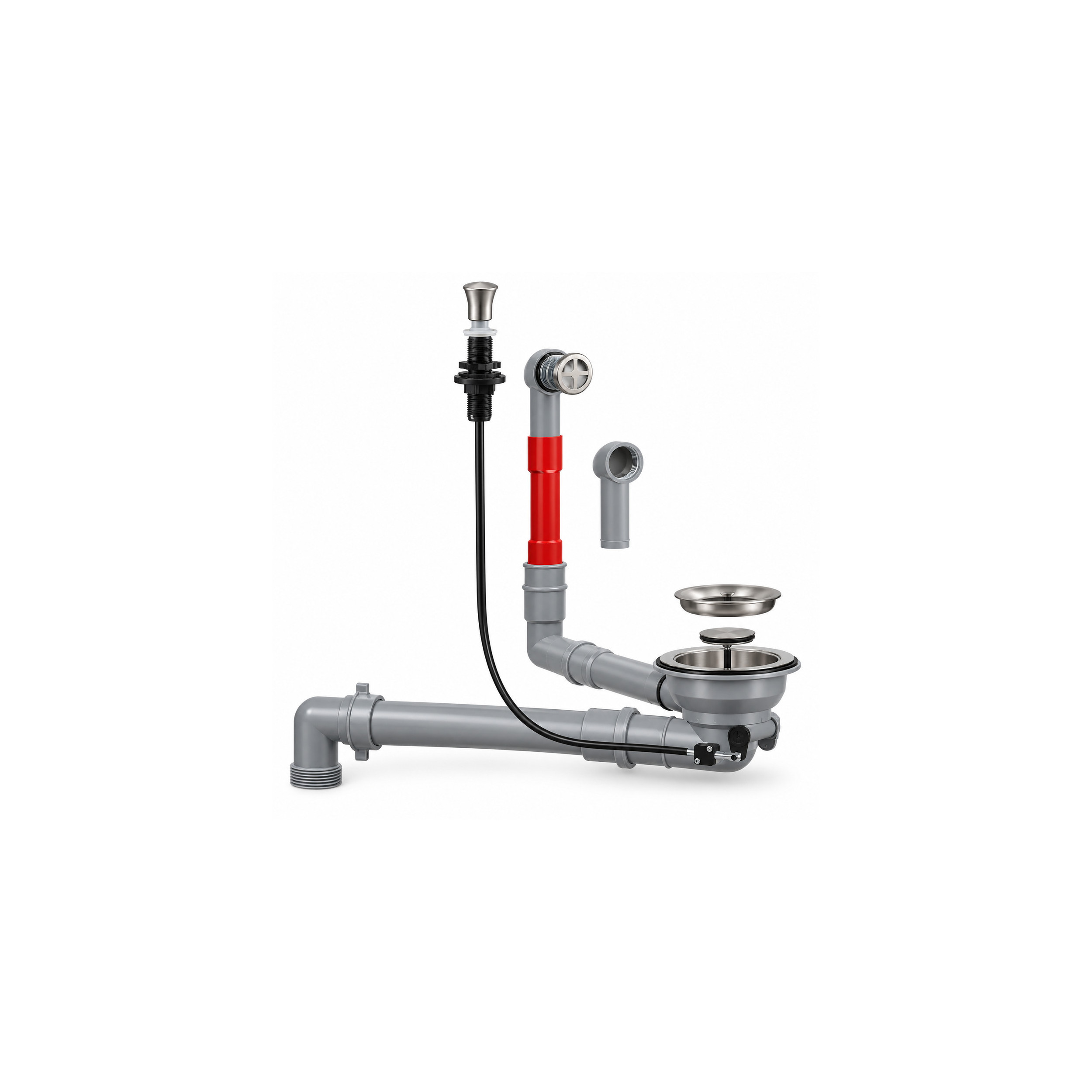

The LIRA automatic kitchen sink drain, reference 1755.510.SK, is designed to optimize the space under your sink thanks to its space-saving configuration. Its PVD satin nickel finish offers an elegant and modern appearance.

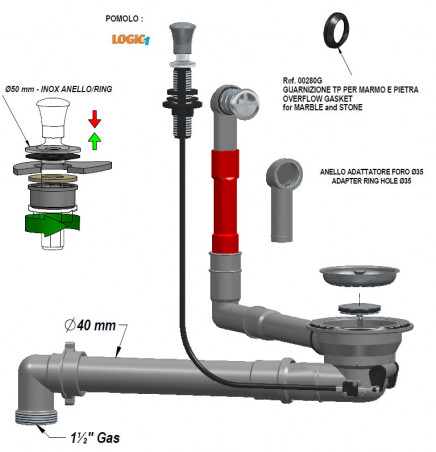

This Universale Salterello Basso model is equipped with a round TPT overflow and a 560 mm cable control, operated via the LOGIC1 button. The connection is made in 1½” Gas, with a drainage tube diameter of 40 mm. The product complies with EN 274 standard, ensuring its quality and durability.

Technical Specifications

• Product type: Space-saving automatic kitchen sink drain
• Model: Universale Salterello Basso / Universal Low Space Saver
• Overflow type: Round TPT
• Finish: PVD satin nickel
• Control: LOGIC1 button
• Cable: 560 mm
• Central screw: 23.3 / 39 / 47 mm
• Outlet thread: 1½” G40 EU
• Button type: P
• Button drilling: Min Ø21 mm / Max Ø35 mm
• Button diameter: Ø15 mm

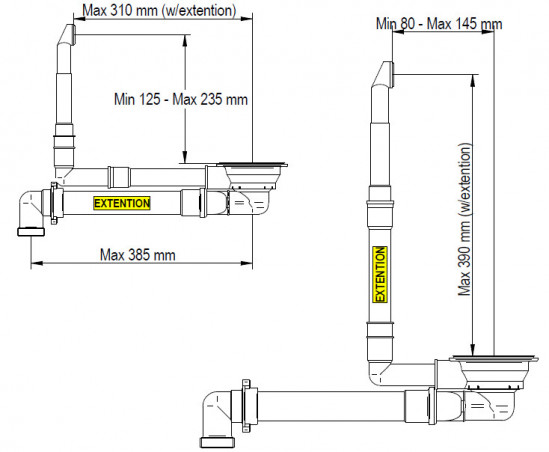

• Horizontal extension: Max 310 mm
• Adjustable horizontal height: Min 125 mm - Max 235 mm
• Maximum horizontal length: Max 385 mm
• Vertical extension: Min 80 mm - Max 145 mm
• Maximum vertical height with extension: Max 390 mm
• Tube diameter: Ø40 mm
• Connection: 1½” Gas
• Overflow ring: Ø50 mm stainless steel
• Adapter ring: For Ø35 mm hole
• Overflow gasket: Reference 00280G
• Standard: EN 274
• Manufacturer: LIRA
• Manufacturer reference: 1755.510.SK
• Internal reference: LIRVI1755510SK
• Warranty: 2 years
