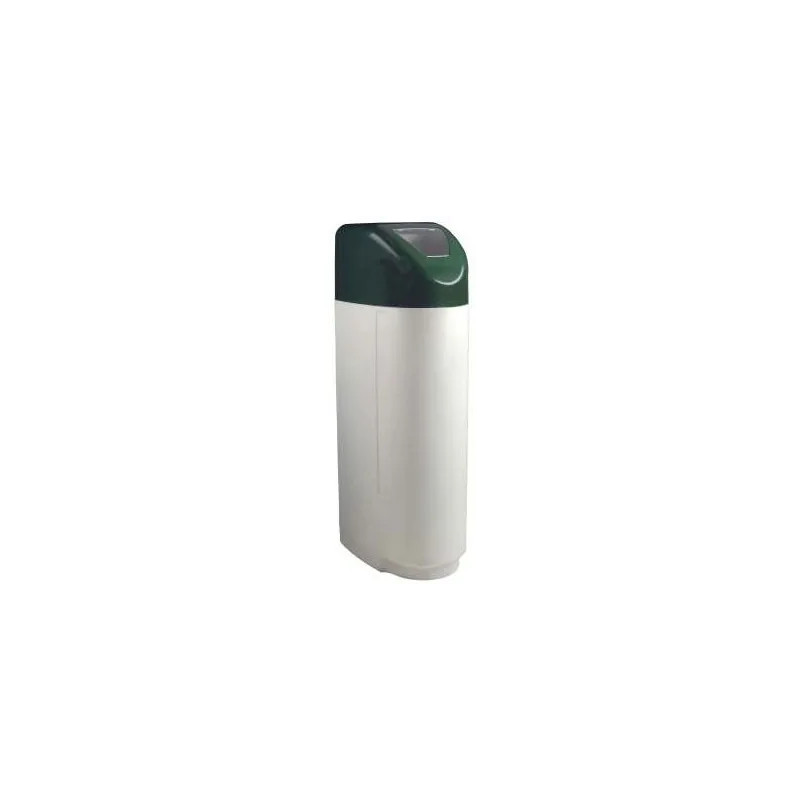

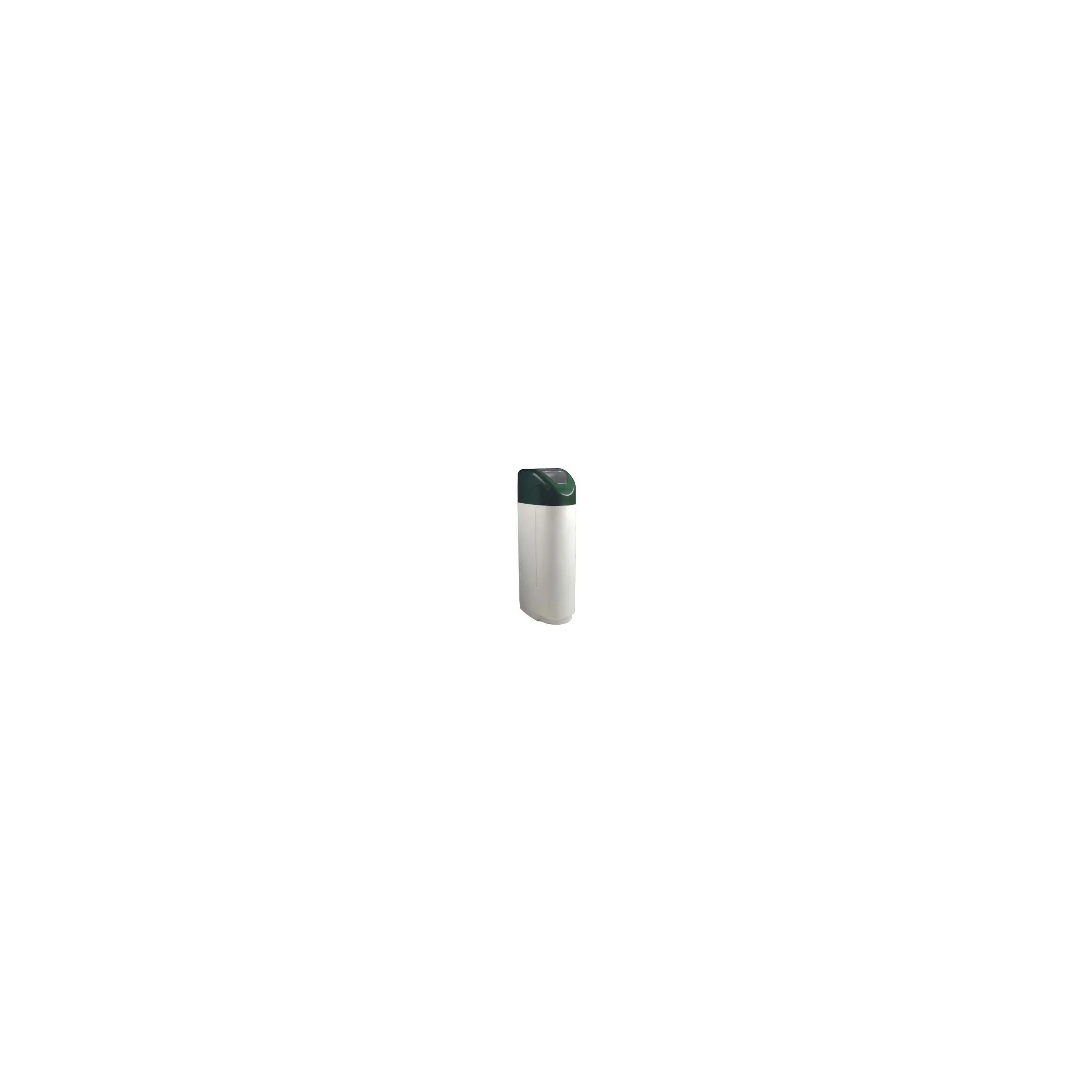

20 Liters Fleck Volumetric Water Softener with ByPass

Monobloc volumetric water softener SNT10-5600, 20 liters with bronze by-pass :
- Monobloc tank body made of blown synthetic resin
- Removable cover with smoked translucent flap.
- Inspection and salt filling hatch.
- Salt capacity: ± 80 kg
- Brine suction and water filling regulator.
- Bottle made of fiberglass reinforced polyester 8 x 35.
- Food-grade softening resin charge: 20 liters.
- Brine suction pipe with high and low strainer.

- Exchange capacity for 20L: 100°F of TH/m³

- Treated water volume between each regeneration according to hardness
TH20°F TH30°F TH40°F TH50°F TH60°F TH70°F
20L :5.00 m³ 3.30m 3 2.50 m³ 2.00 m³ 1.70 m³ 1.40 m³

- Maximum flow rate 20 L : 2.40 m³/h.

- Salt consumption per regeneration 20 L : 3.0 kg.

- Volumetric valve 5600 - Resin regeneration cycle activated based on the actual water consumption of the installation.
- Minimum working pressure: 2 bars.
- Maximum working pressure: 7 bars.
- Operating temperature: from 2 to 35°C.
- Bronze by-pass: Ø 3/4" (20/27).
