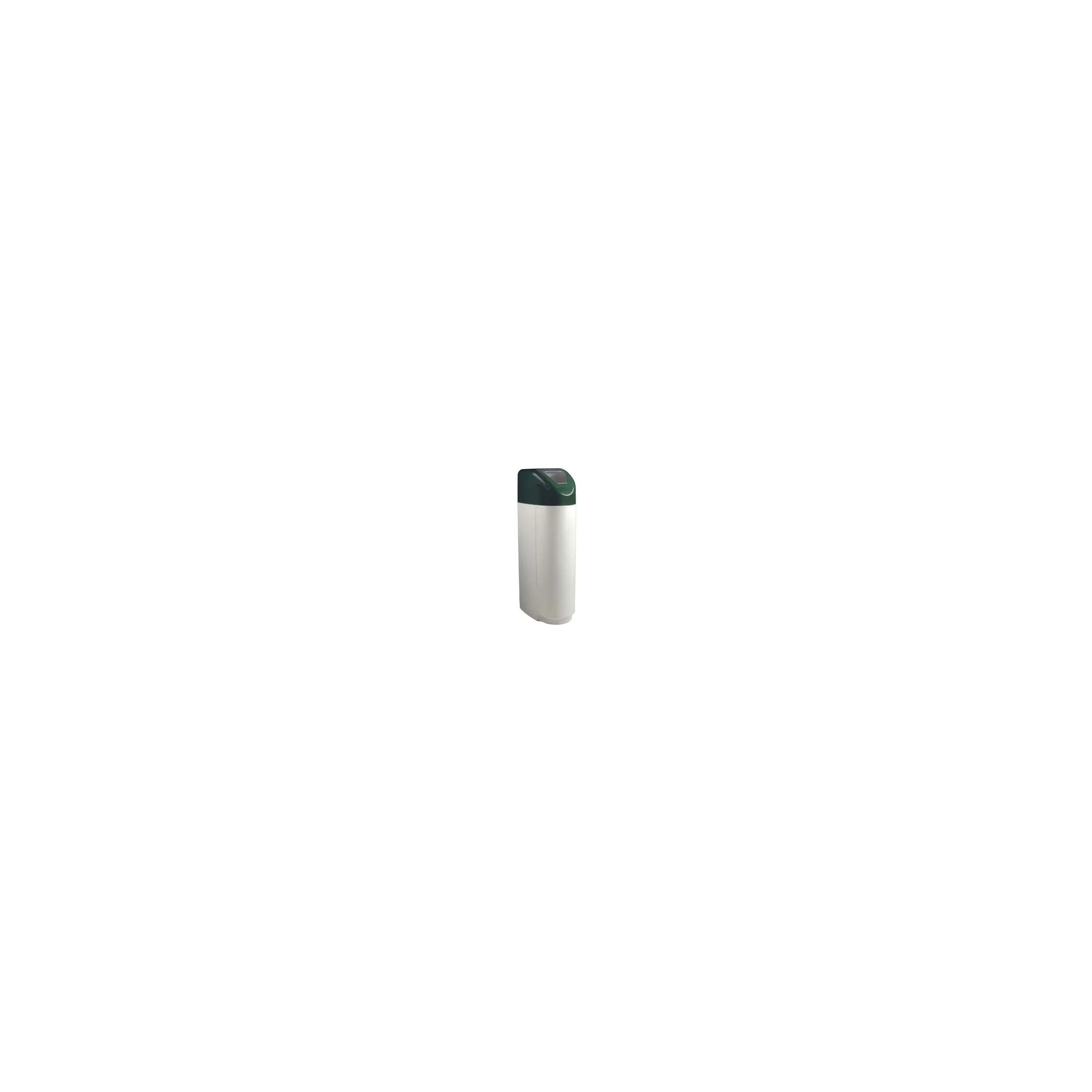

Fleck Volumetric 20 Liter Water Softener with ByPass

Volumetric water softener SNT10-5600, 20 litres with bronze by-pass :
- One-piece tank body in blown synthetic resin
- Removable cover with smoked translucent flap.
- Salt filling and inspection hatch.
- Salt capacity: ± 80 kg
- Brine suction and water filling regulator.
- Glass fibre reinforced polyester bottle 8 x 35.
- Food grade softening resin charge: 20 litres.
- Brine suction pipe with high and low strainer.

- Exchange capacity for 20L: 100°F TH/m³

- Volume of water treated between each regeneration according to hardness
TH20°F TH30°F TH40°F TH50°F TH60°F TH70°F
20L :5.00 m³ 3.30m 3 2.50 m³ 2.00 m³ 1.70 m³ 1.40 m³

- Maximum flow rate 20 L: 2.40 m³/h.

- Salt consumption per 20 L regeneration: 3.0 kg.

- Volumetric valve 5600 - Resin regeneration cycle activated according to the actual water consumption of the plant.
- Minimum working pressure: 2 bar.
- Maximum working pressure: 7 bar.
- Temperature of use : from 2 to 35°C.
- Bronze bypass: Ø 3/4" (20/27).
