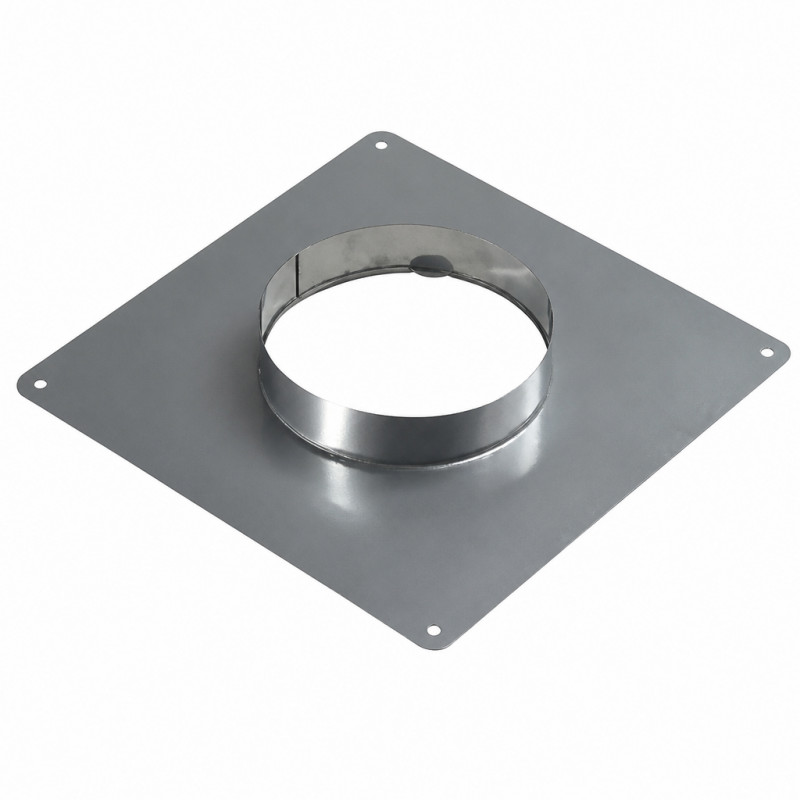

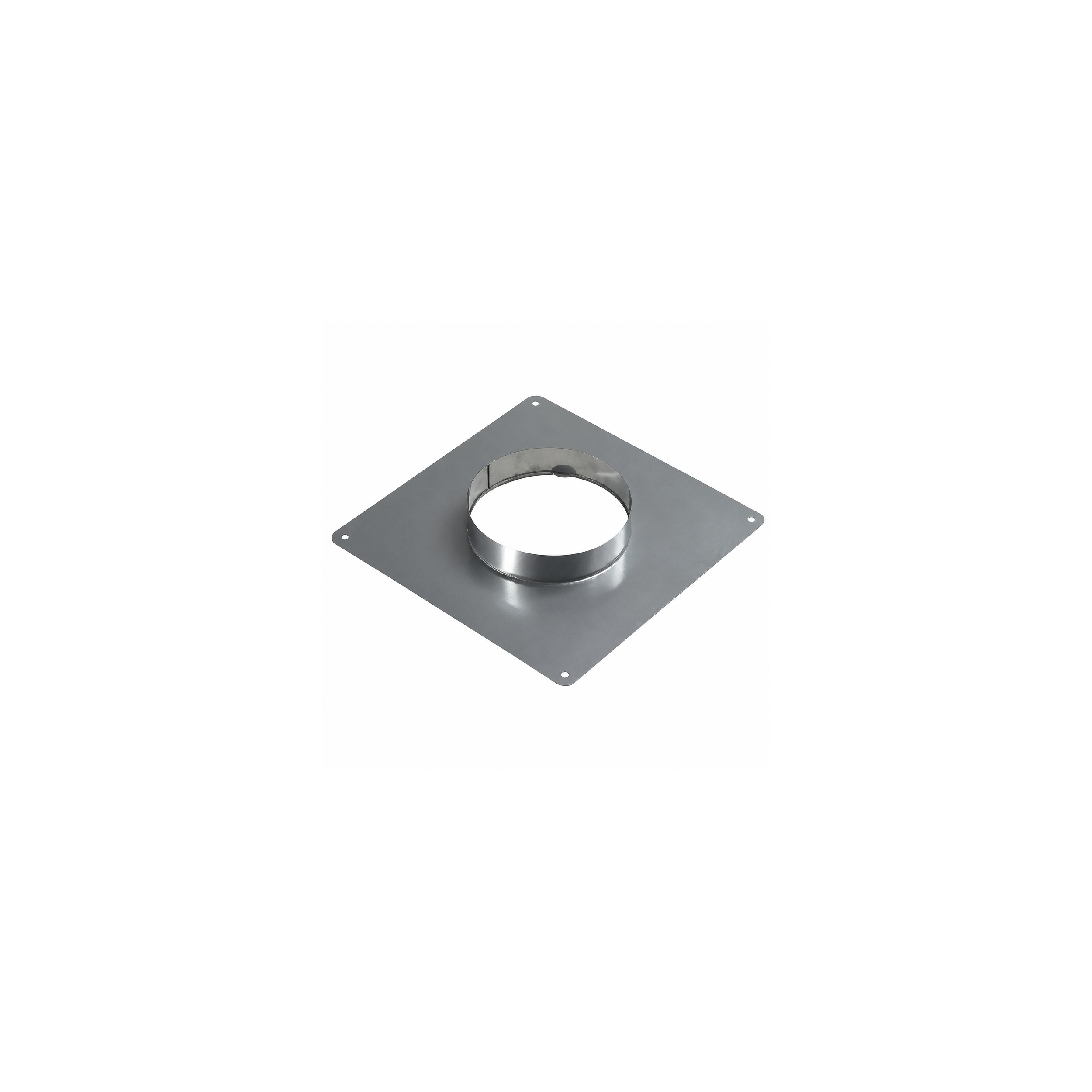

Stainless Steel Sealing Plate 350 X 350 mm TEN tolerie for tube 125x131 mm

Stainless Steel Sealing Plate 350 X 350 mm TEN tolerie for 125x131 mm tube

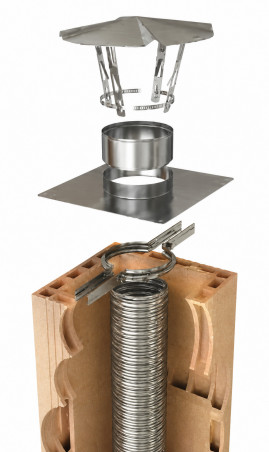

This high stainless steel sealing plate, reference 096125, is specially designed to ensure sealing at the chimney outlet. It is also suitable for high ventilation systems. The plate measures 350 x 350 mm and is equipped with a 60 mm high insert, allowing the passage of tubing with an inner/outer diameter of 125/131 mm.

Made in France by TEN tolerie, this plate guarantees a regulatory high ventilation of 5 cm² with a ferrule of a diameter greater than the flexible by 2.5 cm. The inner diameter of the insert is 149 mm, which ensures proper integration of the hose clamp.

Technical characteristics

• Packaging: 1
• Plate dimensions: 350 x 350 mm
• Insert height: 60 mm
• Inner diameter of the insert: 149 mm
• Tubing passage diameter (inner/outer): 125/131 mm
• Finishes: Stainless steel
• Warranty: 2 years
• Origin: France
• Weight: 0.5 kg
• Manufacturer: TEN tolerie
• Internal reference: TENPLETH125

Observations

• Note: The indicated diameter 125 x 131 mm does not correspond to the actual diameter of the plate's insert. For technical reasons, a slightly larger diameter is necessary for the correct integration of the hose clamp.
