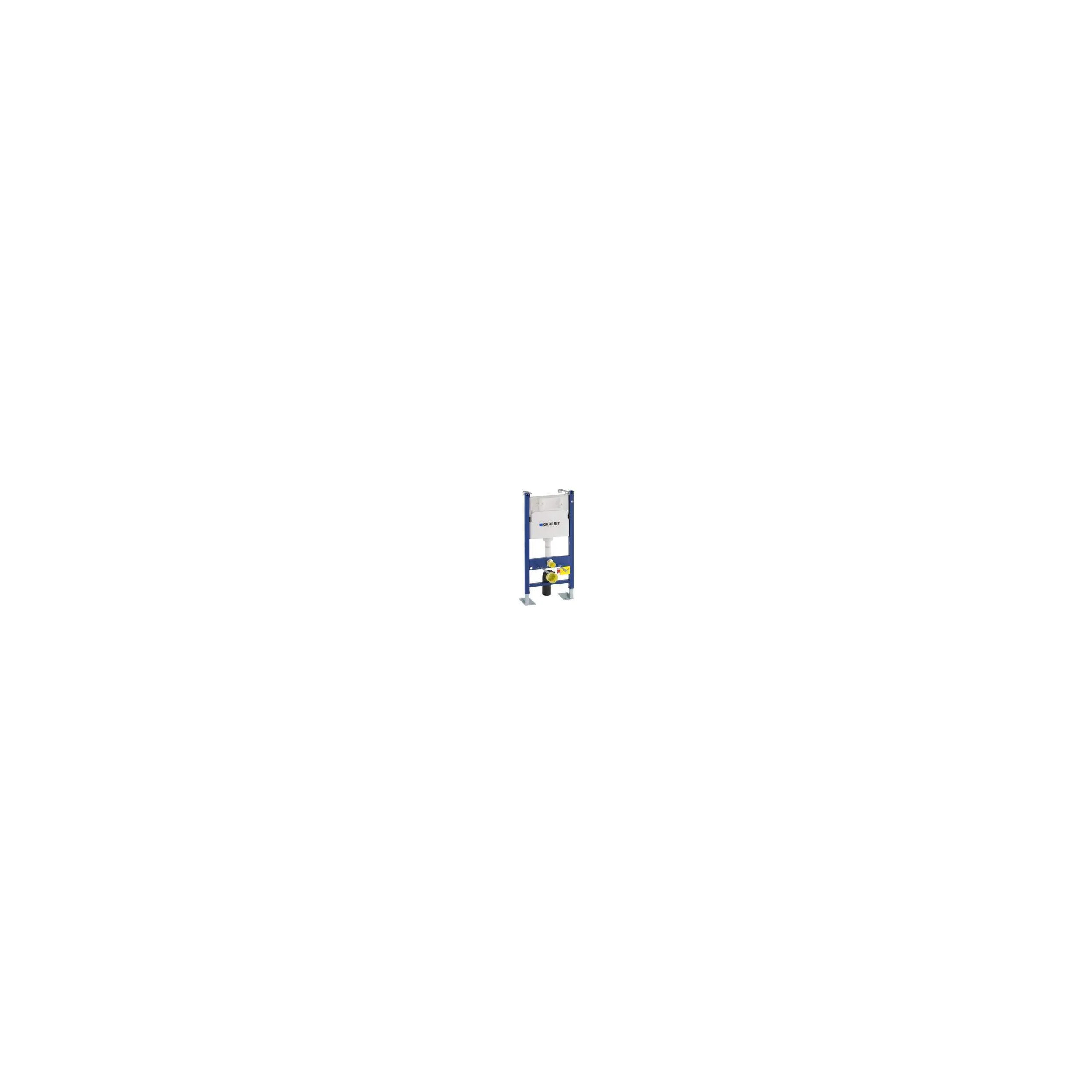

Duofix basic self-supporting support frame

Geberit Duofix support frame for wall-hung toilets, 112 cm, with Delta 12 cm concealed cistern.

Use:

• For drywall construction
• For mounting in walls at room height or in sections
• For mounting on installation walls at room height
• For wall-hung toilets with connection dimensions according to EN 33:2011
• For wall-hung toilets with a projection of up to 62 cm
• For one-touch, two-touch or interruptable rinsing
• For screed height 0-20 cm

Features:

• Open frame at top
• Frame with ø 9 mm drill holes for fixing in wooden construction
• Frame with holes for Geberit Duofix wall mountings for base frames with open top frame
• Frame prepared for supporting ceramic WC's with a small support surface
• Galvanized support feet
• Adjustable support feet 0-20 cm
• Plastic foot plates
• Depth of foot plates suitable for installation in UW 50 profiles
• Connection elbow to be mounted without tools
• Built-in tank with front release
• Built-in tank insulated against condensation
• Immediate post-flushing possible with factory setting
• Nested flush elbow
• Tank can be rotated 180° to allow access from a maintenance room
• Water inlet at the back or from above in the centre
• Equipped with a supply line sleeve for connection to Geberit AquaClean washing toilets
• With mounting possibilities for electrical connection

Technical specifications:

• Maximum water temperature 25 °C
• Flush volume, factory setting 6 and 3 l
• Large flush volume, setting range 4.5 / 6 / 7.5 l
• Small flush volume, setting range 3-4 l

Contents of the delivery :

• Angle tap R 1/2", MeplaFix compatible, with adapter ring
• Reservation box for inspection doors, made of polystyrene foam
• 2 spacer bolts
• 2 wall mounts
• 90° PVC connection bend, ø 90 / 100 mm
• 2 protective caps
• 2 threaded rods M12
• Fastening material
