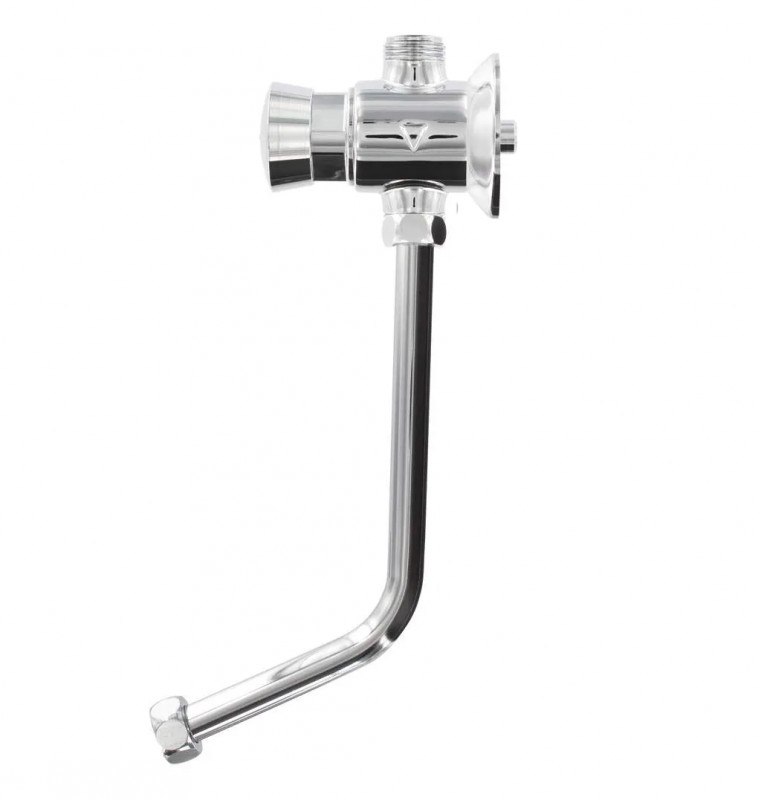

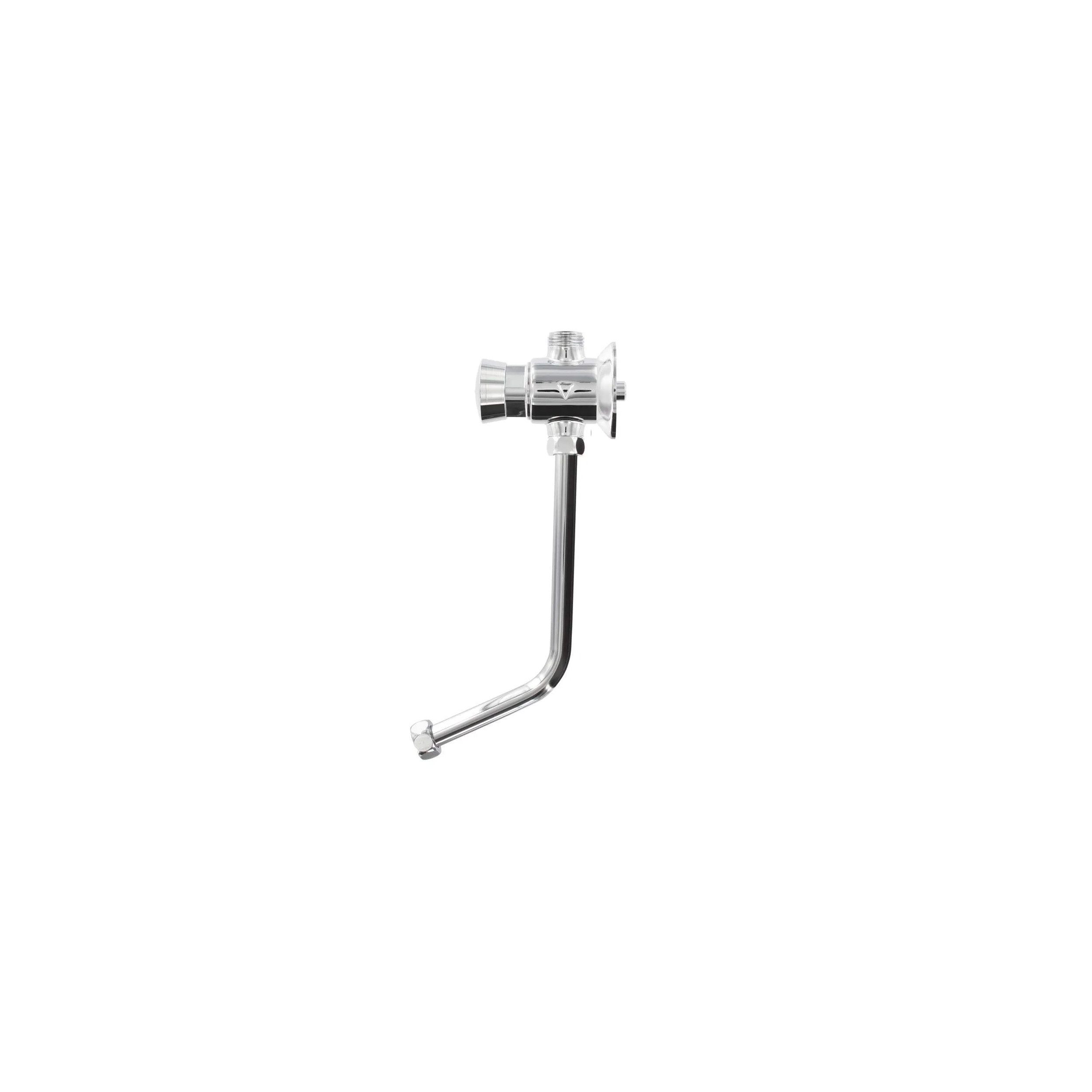

Complete PRESTO kit for anble shell urinal 2 (Jacob Delafon)

Recommended operating pressure :

• 1 to 5 bar

Flow :

• 9 l/mn at 1 bar -4 position flow adjustment
• Anti-water hammer device

Flow time :

• 6 seconds (± 2 seconds)

Hydraulic supply :

• In-line power supply
• Male inlet and outlet G 1/2" (15x21)

Destination:

• Complete kit ready to install for JACOB DELAFON urinal model Coquille 2 in angle

Delivered with :

• 1 PRESTO 12 certified NF
• 1 Tube equipped with 1/2".
• 1 Corner wedge
• 1 Flat gasket
• 1 Nut
• 1 Rosette integral with the tap

Standards / Approvals :

• Brass body in compliance with NF EN1982 / NF EN12164 / NF EN12165 standards
• Nickel-Chromium surface treatment according to NF EN12540
• Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
