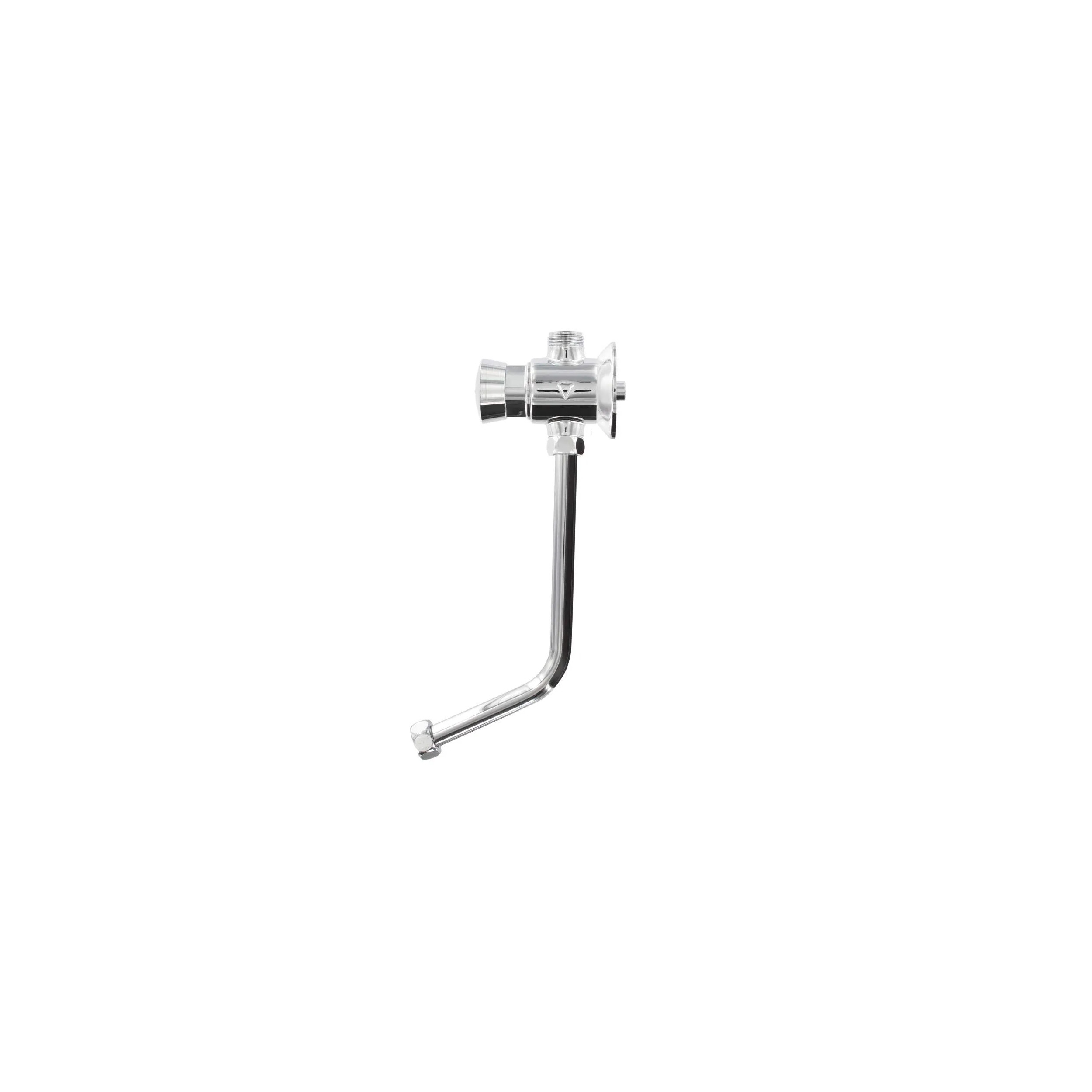

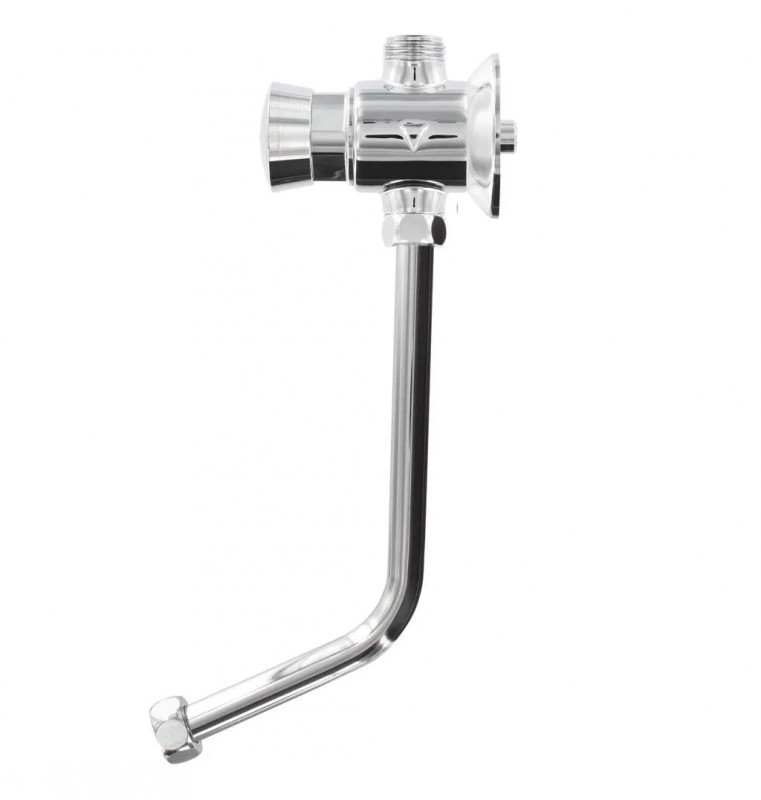

Mechanical timed angle urinal kit P12 NEO, JACOB DELAFON Coquille 2

Complete PRESTO kit for Coquille 2 corner urinal (Jacob Delafon)

The complete PRESTO kit for Coquille 2 corner urinal by Jacob Delafon is designed for wall installation. This device is equipped with an inline supply and a timed tap, with an adjustable flow in four positions. The recommended operating pressure is between 1 and 5 bars, offering a flow rate of 9 l/min at 1 bar. The kit features a water hammer arrestor to ensure safe use.

This kit includes a PRESTO 12 tap certified NF, a 1/2" equipped tube, an angle shim, a flat gasket, a nut, and a flange integrated with the tap. It is compatible with the Coquille 2 corner model by Jacob Delafon. The materials used, such as brass for the body, comply with NF EN1982, NF EN12164, and NF EN12165 standards, with a Nickel-Chrome surface treatment in accordance with NF EN12540.

Technical characteristics

• Packaging: 1 piece
• Warranty: 10 years
• Main materials: Brass
• Origin: made in Europe
• Weight: 0.9 kg
• Type of connection: Male
• Manufacturer reference: 31986
• EAN: 3535770319863
• Type of control: Push button
• Type of tapware: Urinal kit
• Timed: Yes
• Type / Application: Urinal
• Installation: Wall-mounted
• Timing: 15 seconds
• Finish: Chrome
• Supply: Inline
• Equipment: With tap and equipped tube
• Compatibility: Coquille 2 corner (Jacob Delafon)

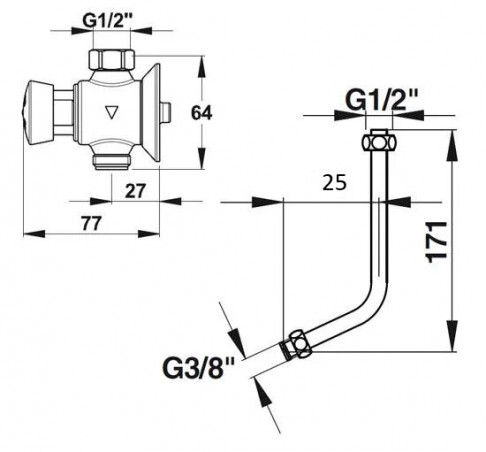

• Documents to download: Technical diagram, Installation instructions
• Environmental data: Present
• Standards / Approvals: Brass body compliant with NF EN1982 / NF EN12164 / NF EN12165 standards, Nickel-Chrome surface treatment according to NF EN12540, Neutral salt spray resistance (NSS): 200 h according to NF ISO 9227
