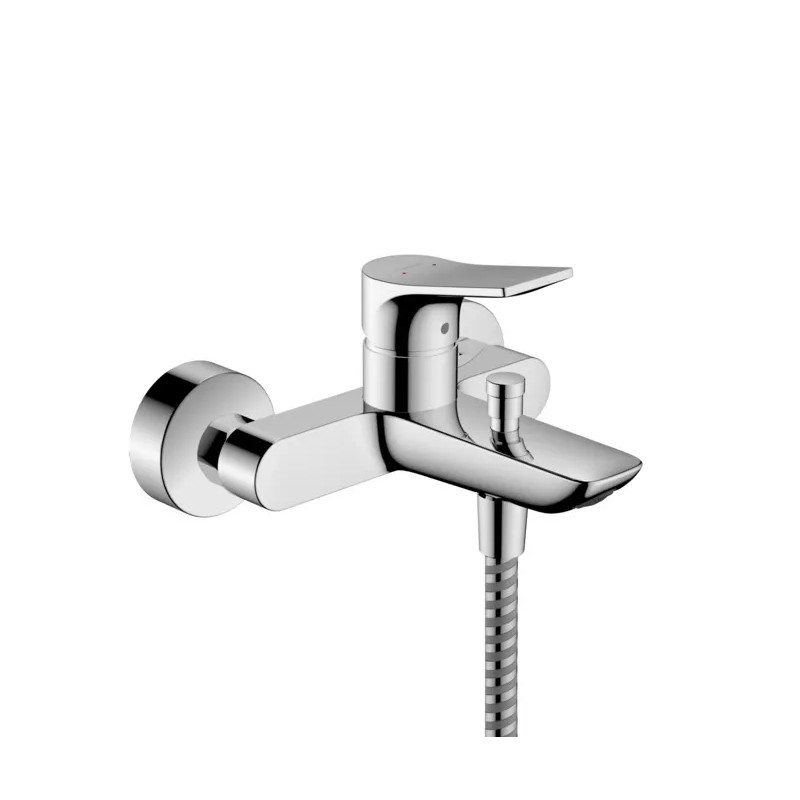

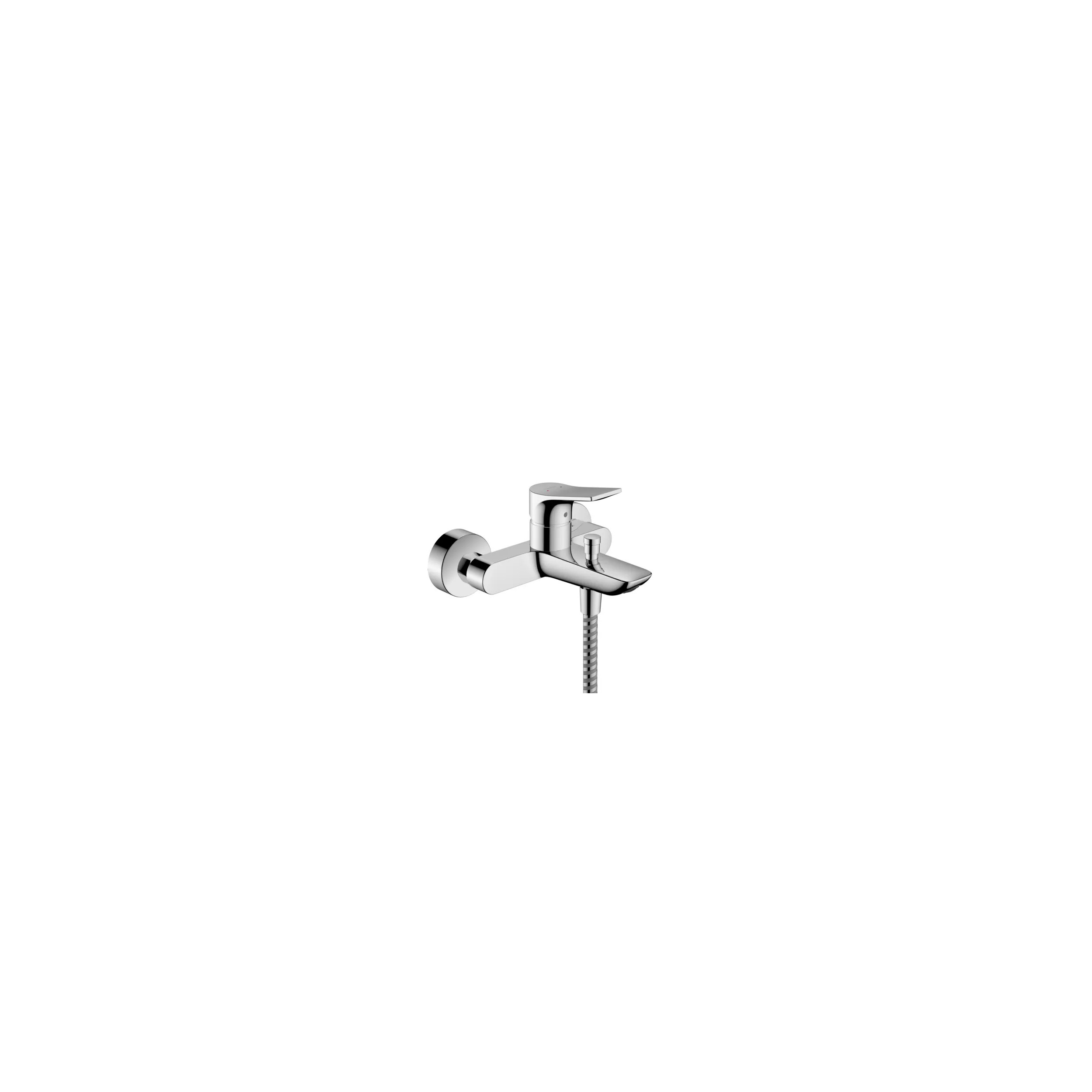

Wall-mounted bath and shower mixer ZEBRIS

Wall-mounted bath/shower mixer ZEBRIS HANSGROHE part no. 72575000

• 2 functions.
• Projection: 182 mm.
• Distance from center: 150 mm ± 12 mm.
• Mixer jet type: normal jet.

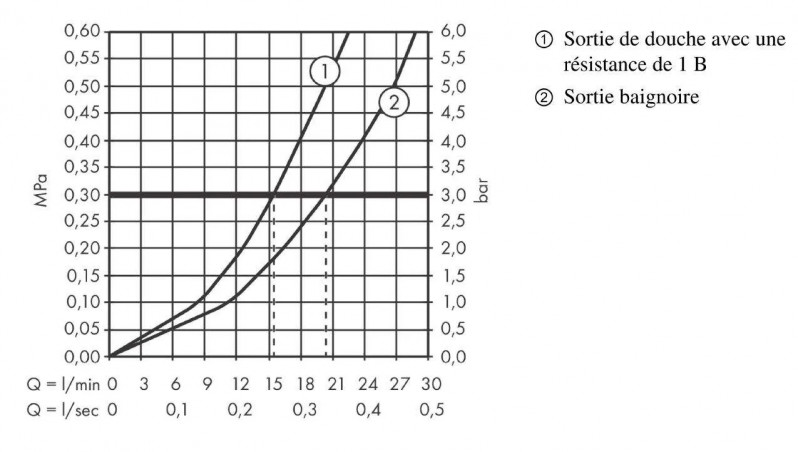

• Maximum flow at 3 bar: 20.9 l/min.
• Tub spout flow rate at 3 bar: 20.9 l/min.
• Hand shower flow rate at 3 bar: 17.3 l/min.
• Ceramiccartridge.
• Adjustable temperature limiter.
• Inverter with automatic reset.
• With integrated safety suit EN 1717.
• With silencer.
• Suitable for instantaneous water heaters.
• Connection type: S fittings.
• Max. permissible operating pressure: 1 MPa (1 MPa = 10 bar = 147 PSI).
• Recommended operating pressure: 0.1 - 0.5 MPa.
• Maximum control pressure: 1.6 MPa.
• Hot water temperature: 60°C max.
• Thermal disinfection: 70°C / 4 min.
• Finish: chrome-plated.

Sold without hose.
