Bi Presto sol 530 foot switch

Function:

This PRESTO SOL 530 two-pedal foot-operated timer for washbasins allows the flow of cold and/or hot water to be started by pressing one of the pedals. A slow timed shut-off prevents water hammer.

Flow time :

As long as you keep the pedal pressed (slow closing)

Flow :

• 6 l/min, adjustable by the installer depending on the pressure
• Anti-water hammer system (slow closing of the water flow)

Material and finish colour :

• Brass body and components with nickel-chromium treatment
• Mechanism components made of polyacetal technopolymer (POM) to ensure resistance to corrosion and scaling
• Sealing made of Nitrile/EPDM elastomers
• The base plate has a reserve to ensure a silicone seal

Standards / Approvals :

• PRESTO SOL 530 tap NF II approved
• Brass body and components according to NF EN1982/CC754S, NF EN 12164 / CW614N, NF EN 12165 / CW617N
• Surface treatment Nickel-Chromium according to NF EN12540 / Resistance to neutral salt spray (NSS): 200 h according to NF ISO 9227
• Attestation of Sanitary Conformity (ACS)

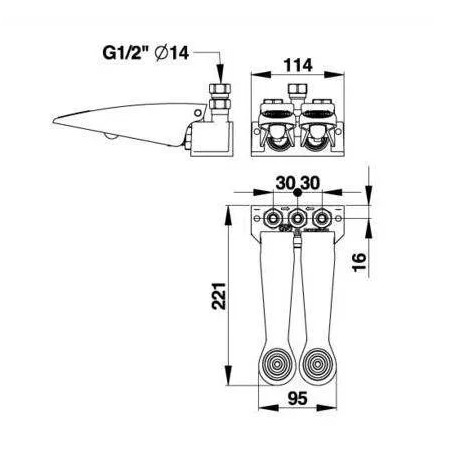

Hydraulic supply :

Inlet G ½'' (15x21)

Thermal resistance :

This tap resists a temperature of 75°C in the context of thermal shocks to eradicate legionella as recommended by the E.C.S. decree of 30 November 2005 relating to fixed installations intended for the heating and supply of domestic hot water in residential buildings, work premises or premises receiving the public

Delivered with :

• Nut seal
• Connection nut
• Nut for 12x14 mm tube
