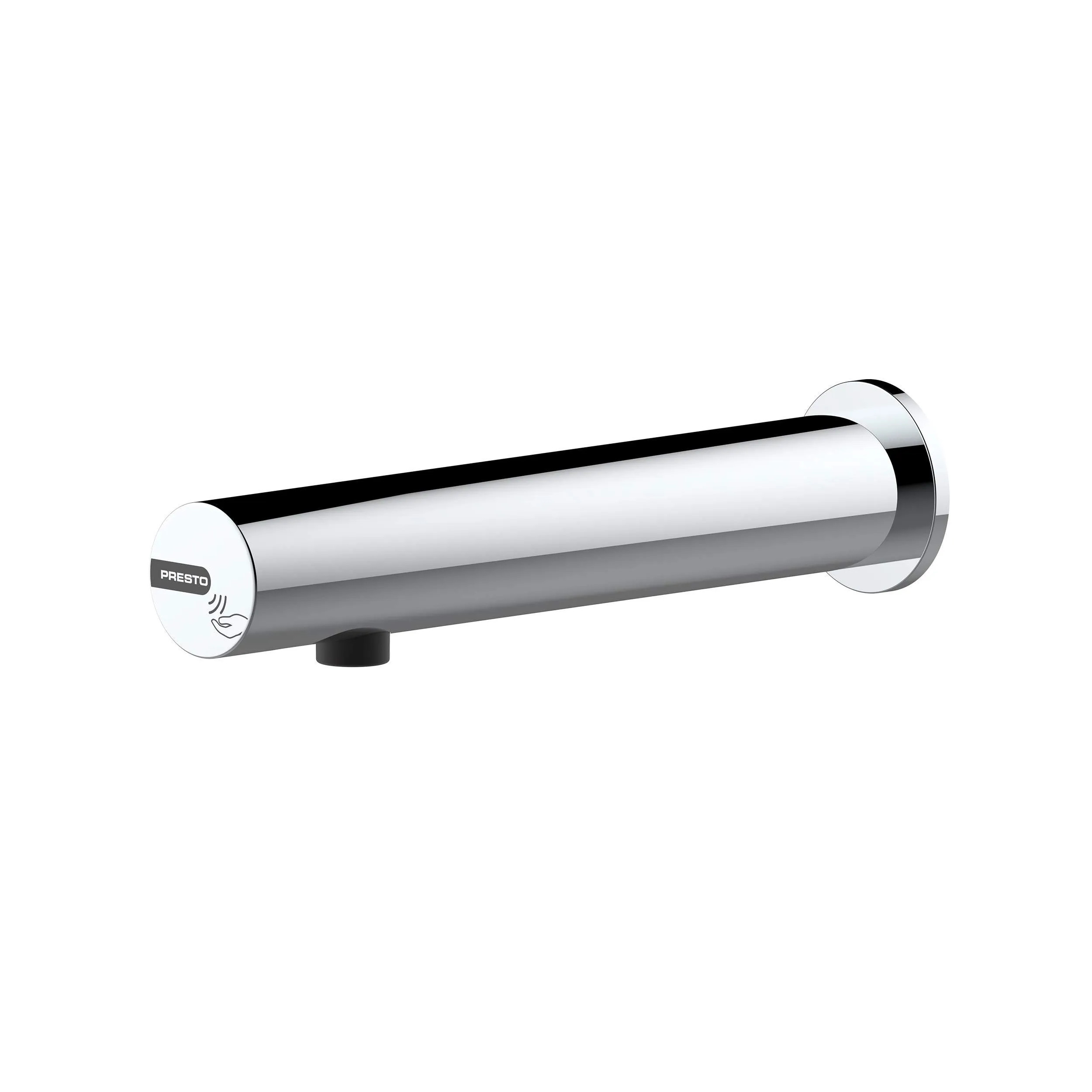

Electronic wall-mounted tap 10-50mm, 230V, for LINEA washbasin.

Electronic wall-mounted tap 10-50mm, 230V, for LINEA PRESTO washbasin, reference 57112

Contactless electronic trigger. Flow rate 3l/min. 230V mains supply with transformer. F3/8" connection. Chrome-plated finish. Supplied with stopcock.

Recommended operating pressure 1 to 5 bar

How it works : Contactless triggering adapted for PMR

Flow 3 l/min via integrated flow regulator High-quality anti-scale aerator

Hydraulic power supply Flexible G 3/8'' (12x17)

Power supply With 230 V AC / 7 V DC transformer in IP65 waterproof housing

Finish material and color Chrome-plated brass body, smooth interior Chrome-plated die-cast metal cover

Thermal resistance Withstands temperatures of up to 75°C for 30 minutes in thermal shock conditions

Security Automatic closing of solenoid valve in case of flow

to 30s Automatic closing of solenoid valve in the event of power failure or damage to sensor Automatic 30-second flush, 24 hours after last use (adjustable duration and interval)

Recommended installation Recommended installation height: at least 30 cm from the bottom of the basin.

Supplied with: 1 Fixing nut, 1 gasket and washer 1 Covering rosette 1 PEX flexible hose with swivel nut and basket strainer 1 M M G 3/8" shut-off valve 1 Warning sticker 1 1m transformer extension 1 Installation instructions

Standards / Approvals Brass compliant with standards NF EN1982, EN12164, NF EN12165 Brass UBA List compliant Salt spray resistant 200 H (NSS test) in accordance with standard NF ISO 9227
