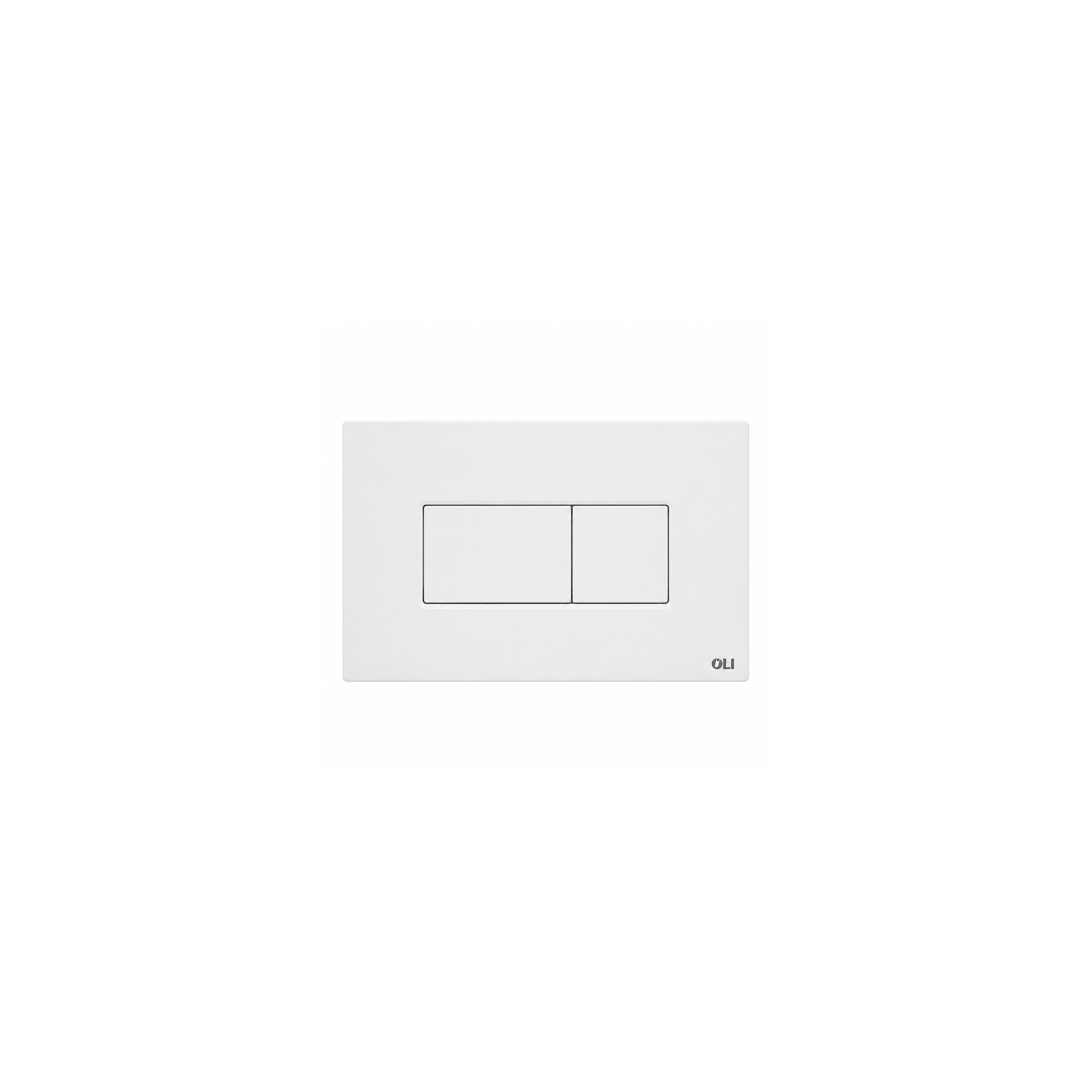

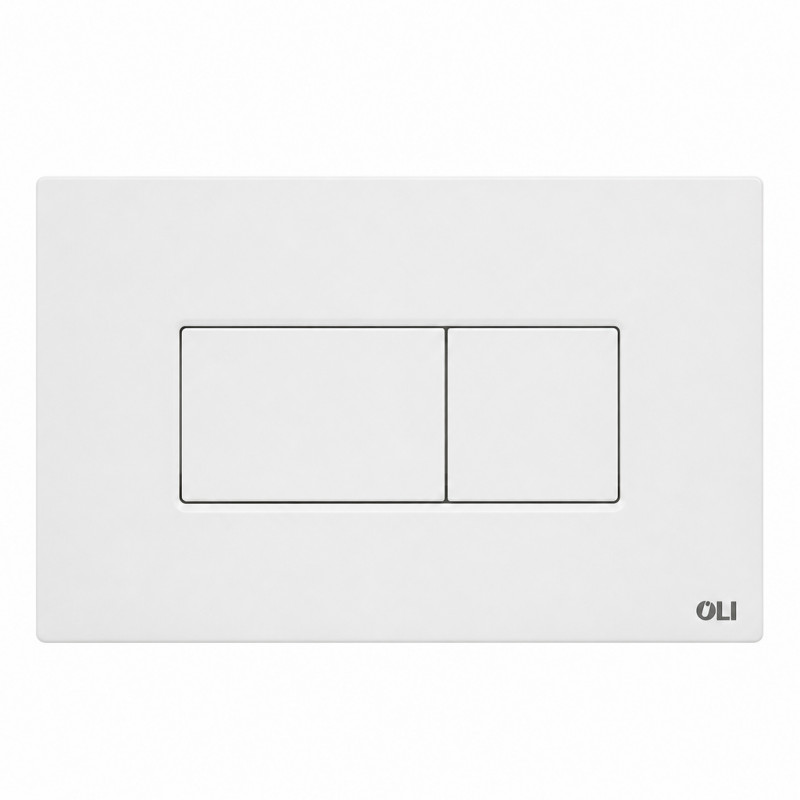

White OLI Karisma 641001 pneumatic WC flush plate

WHITE PNEUMATIC FLUSH PLATE REGIPLAST KARISMA

The OLI KARISMA 641001 pneumatic flush plate is designed for wall-hung toilets. It is available in a white finish and consists of an ABS plastic panel. This model offers a dual flush system activated by a pressure of less than 20 N, with a total depth of 73.5 mm and a recessed part of 63.5 mm.

Compatible with OLI74 Plus, Expert Evo, Diamante Evo pneumatic versions, this plate can also adapt to OLI120 Plus and Quadra Plus models of the same series. Its installation is done on load-bearing walls or lightweight partitions, with specific partition thickness constraints depending on the frame used.

Technical characteristics

• Manufacturer reference: 641001
• EAN: 5604005560580
• Brand: OLI
• Range: KARISMA
• Type: pneumatic flush plate
• Control: pneumatic
• Flush mode: dual flow / two buttons
• Material: plastic / ABS
• Color: white
• Total depth: 73.5 mm
• Recessed part depth: 63.5 mm
• Activation force: < 20 N
• Panel thickness: 10 mm
• Country of production: Portugal
• Usage: for wall-hung toilets
• Mounting: load-bearing wall or lightweight partition
• Warranty: 2 years
• Compatibility: OLI74 Plus, Expert Evo, Diamante Evo, OLI120 Plus, Quadra Plus

Installation

• Installation on pneumatic system
• Partition thickness: OLI74 Plus 25 mm, Expert Evo front 0 mm, Expert Evo top 30 mm
