WISA 747EBSCW

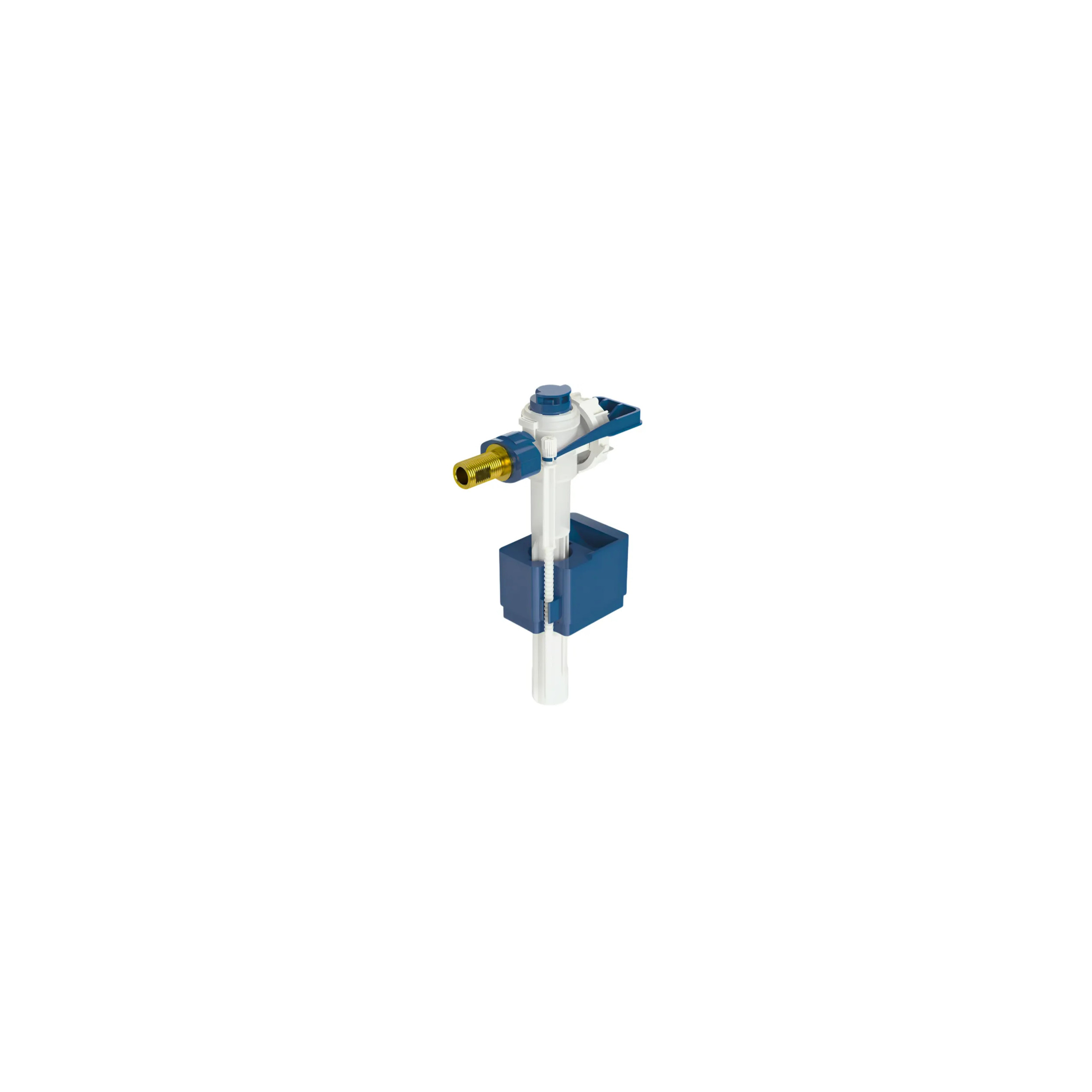

Float valve Wiza XF
Reference : 747EBSCW
Pour particuliers, professionnels, administrations, collectivités, Mairies, CHU, etc...The hydrostatic float valve, or HVK, can be used in all WISA XF tanks to allow quick and quiet filling of the tank.
In 46 seconds, six liters of water flow through the telescopic tube at a pressure of 0.3 Mpa, filling the tank completely.
With a sound level of 13 dB (A), it is silent.
A great advantage of the float valve is that the water level is adjustable and it is equipped with a filter.
In addition, this high quality inlet valve carries a KIWA quality mark.
That's why we easily offer a ten-year warranty, except for rubber parts.
Connection: | male thread |
---|---|
Width: | 56mm |
Depth: | 131mm |
Eccentric connection: | no |
noise class : | Group I, |
Noise class according to DIN-52 218 : | Group I, |
Height: | 222mm |
KIWA approval: | Yes |
Wire connection length : | 33mm |
Wire connection size (inch): | 3/8" |
Connection material: | Brass |
Max. pressure: | 10 bar |
Max. average temperature (continuous): | 30°C |
min. pre-print : | 0.5 bar |
Acoustic class according to EN ISO 3822 : | Group I, |
