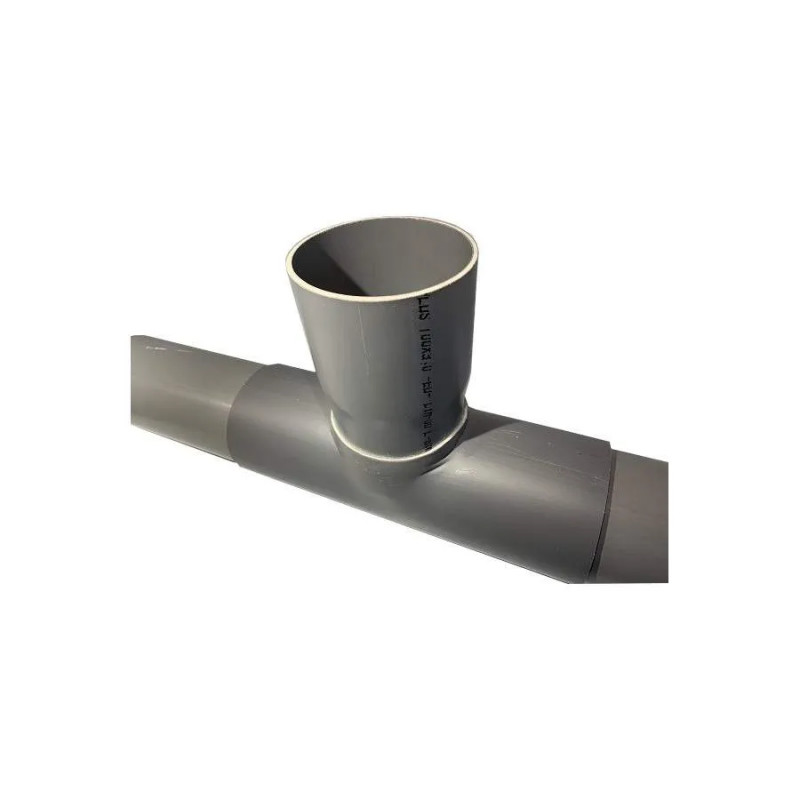

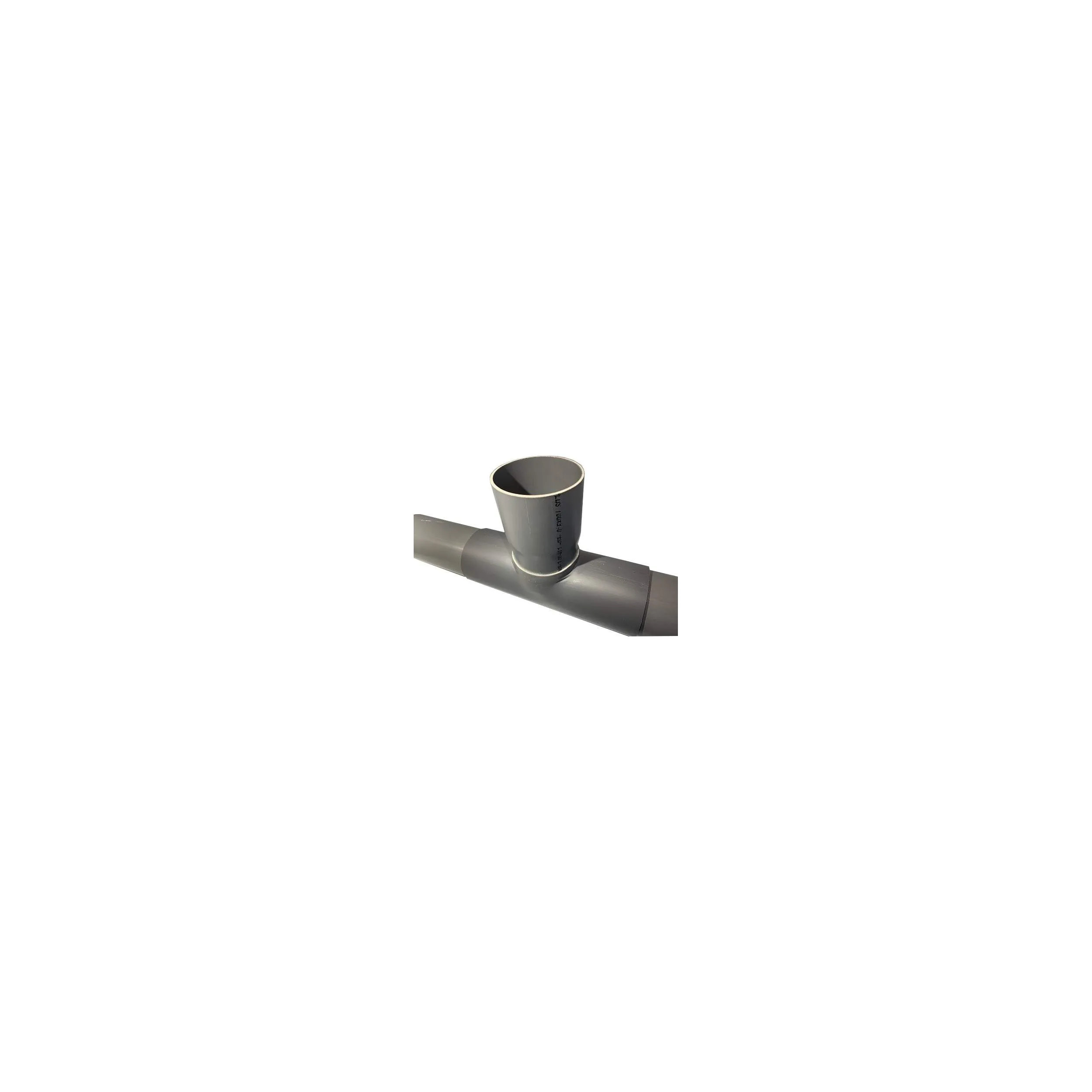

PVC branch saddle 250x125 mm at 90 degrees, 30cm long
€54.99
Tax Included
(45.82 € HT)
Référence ESPINOSA : B221S9250J
Emplacement magasin : B2-D-035
PVC branch saddle 250x125 mm at 90 degrees, 30cm long reference B221S9250J.
Safety guarantees
Delivery policy
Returns policy
PVC branch saddle 250x125 mm at 90 degrees, 30cm long reference B221S9250J.
Plumbing, PVC fittings for 90° tapping, 250X125
PVC fitting to glue, allowing very simple connection of a tube to an existing pipeline.
Saddle body with the same diameter as your main pipeline for better adhesion.
90° tulip-shaped (female) tapping outlet
Principles of a Branch Saddle:
The PVC Branch Saddle is a building fitting allowing easy connection of a drain tube to a main pipeline without the need to cut, disassemble, or completely modify it.
Very practical in renovation, it allows simple and quick connection of a new element (washbasin, kitchen sink, toilet, etc.) to the main network.
For installation, simply drill the pipeline in place with a hole of equal or slightly larger diameter than the tube to be tapped at the desired location, then clip/glue the saddle body by aligning the previously made hole with the tapping. And that's it.
Specificities of Our Shaped Branch Saddles
Manually manufactured by cutting, transforming, then assembling and gluing existing materials, our shaped fittings inevitably have a rougher and less polished aesthetic than an injected fitting. However, their technical quality and resistance are tested randomly at the end of production in our internal laboratory.
The Saddle Body:
It is made using a Standard Building PVC Tube (NF), cut and trimmed as necessary along the length. This tube is of equivalent diameter to the pipeline on which it will clip. The elasticity of PVC will allow it, during installation, to spread and then return to its initial shape, recovering the play to perfectly fit the support surface.
We deliberately make the body longer than the actual final need, which guarantees you additional positioning, holding, and gluing surface. You can still perfectly cut it if necessary.
On some saddles, it may sometimes seem that the body diameter visually appears smaller than the final diameter, but in reality, it is not: indeed, PVC is elastic and naturally contracts during cutting or shaping. Once clipped and in place, the PVC will perfectly regain its initial diameter and fit your pipeline.
The Tapping:
It is also made using a Standard Building PVC Tube (NF) that we thermoform to create a female socket (tulip), allowing you to connect your tapping tube or possibly a male fitting (inspection cap, tee, etc.) with ease.
Once positioned hot, the tapping is permanently welded to the body using a specially developed Professional PVC Glue that also guarantees sealing.
During your positioning tests of the saddle before drilling, it may sometimes seem that it does not completely fit the main pipeline. A bit like it is hindered by a roughness. This is completely normal: indeed, the Tapping is sometimes positioned slightly recessed into the saddle body, to subsequently favor gravitational flows. Once you have made your drilling (preferably a bit wider than the tapping diameter), it will penetrate the main pipeline, and your saddle will be perfectly in place.
The Installation:
Position the saddle at the intended location and mark the drilling location by passing through the inside of the tapping socket. You can also mark the edges of the saddle to help with repositioning later.
Drill (preferably a bit wider than the initially marked diameter, which then favors gravitational flow). The dimensions of the saddle body give you a large margin of maneuver.
Glue the inside part of the saddle body with good PVC GEL glue, then replace the saddle in its final position.
That's it!
1 Item
Data sheet
- Width (cm):
- 12.5
- Weight (kg) :
- 1.1
- Packaging:
- 1
- Angle and inclination :
- 90
- Main materials :
- PVC
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3556316001042
- EAN-13
- 3556316001042
- Location
- B2-D-035
- Reference to display
- FOMSEB221S9250J
- Supplier reference
- B221S9250J
