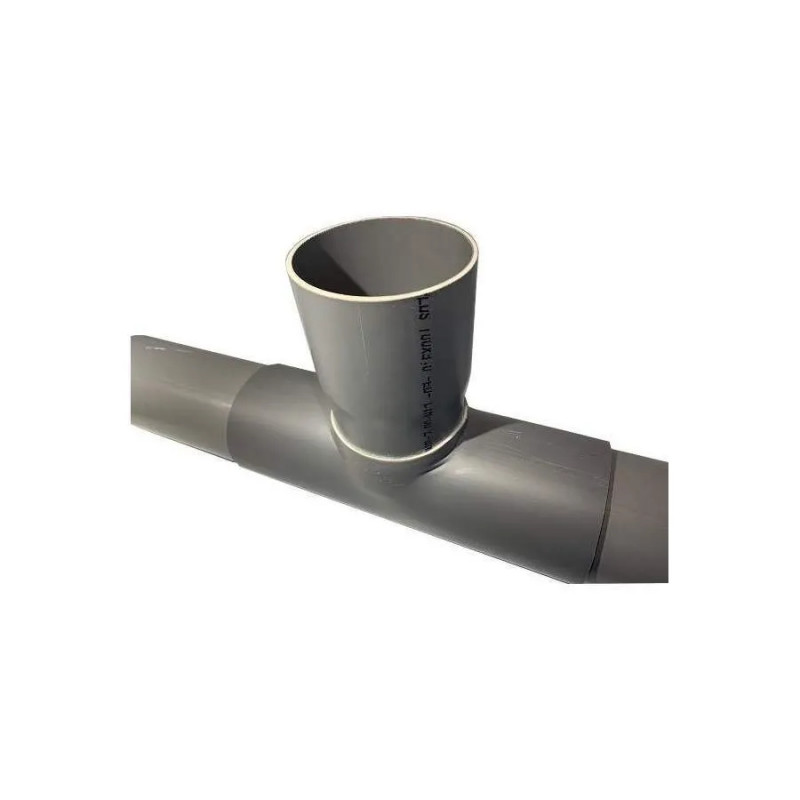

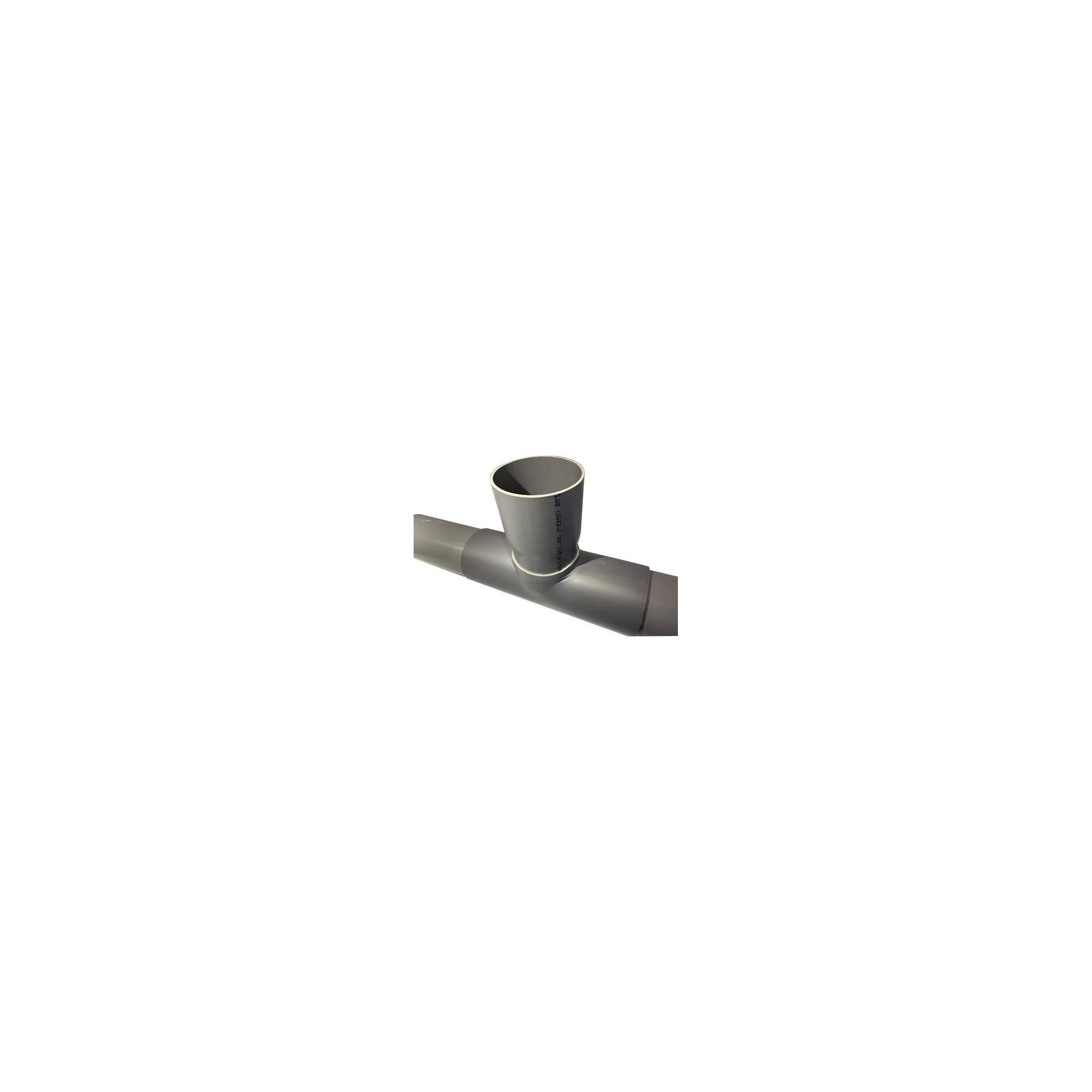

PVC branch saddle 125x125 mm at 90 degrees, 30cm long
€69.12
Tax Included
(57.60 € HT)
Référence ESPINOSA : B221S9125J
Emplacement magasin : B3-D-094
Choose now the branch saddle reference B221S9125J from the brand ESPINOSA.
Safety guarantees
Delivery policy
Returns policy
PVC branch saddle 125x125 mm at 90 degrees, 30cm long ESPINOSA reference B221S9125J
Product type: PVC glued fitting
Description:
PVC glued fitting allowing for very simple connection of a pipe to an existing pipeline.
Saddle body with the same diameter as your main pipeline for better adhesion.
90° tapered take-off (female)
Principles of a Branch Saddle:
The PVC Branch Saddle is a building fitting that allows for easy connection of a drainage pipe to a main pipeline without the need to cut, disassemble, or completely modify it.
Very practical for renovations, it allows for simple and quick connection of a new element (washbasin, sink, toilet, etc...) to the main network.
For installation, simply drill the pipeline where you want to make a hole with a diameter equal to or slightly larger than the diameter of the pipe to be tapped at the desired location, then clip/glue the saddle body making sure to align the previously made hole with the take-off. And it's done.
Specifications of our Shaped Branch Saddles
Handcrafted by cutting, transforming, then assembling and gluing existing materials, our shaped fittings have a more raw and less polished aesthetic than an injected fitting. Their technical quality and resistance are nevertheless tested randomly after production in our internal laboratory.
The saddle body:
It is made using a standardized PVC Building Tube (NF), cut and trimmed as necessary along its length. This tube has a diameter equivalent to that of the pipeline it will clip onto. The elasticity of the PVC will allow it, during installation, to stretch and then return to its original shape, accommodating the support surface perfectly.
We intentionally make the body longer than the actual final need, which guarantees you an additional positioning, holding, and gluing surface. However, you can perfectly recut it if necessary.
On some saddles, it may sometimes seem that the diameter of the body visually appears smaller than the final diameter, but in reality, this is not the case: indeed, PVC is elastic and naturally contracts during cutting or shaping. Once clipped and in place, the PVC will perfectly regain its initial diameter and fit your pipeline.
The Take-off:
It is also made using a standardized PVC Building Tube (NF) that we thermoform to create a female socket (tulip), allowing you to connect your take-off pipe or possibly a male fitting (inspection cap, tee, etc...) with ease.
Once positioned hot, the take-off is permanently welded to the body using a specially developed Professional PVC glue that also guarantees watertightness.
During your positioning tests of the saddle before drilling, it may, in some cases, appear not to fully conform to the main pipeline. It may seem as if it is hindered by a roughness. This is completely normal: indeed, the take-off is sometimes positioned slightly recessed into the body of the saddle, to subsequently facilitate gravitational flow. Once you have made your drilling (preferably slightly wider than the take-off diameter), it will penetrate into the main pipeline and your saddle will therefore be perfectly in place.
Installation:
Position the saddle at the intended location and mark the drilling location by passing through the inside of the take-off socket. You can also mark the edges of the saddle to help with repositioning later.
Drill the hole (preferably slightly wider than the initially marked diameter to promote gravitational flow). The dimensions of the saddle body allow for a large margin of maneuver.
Glue the inner part of the saddle body with a good PVC GEL glue, then replace the saddle in its final position.
That's it!
Supplier: ESPINOSA
Reference: B221S9125J
6 Items
Data sheet
- Weight (kg) :
- 0.37
- Packaging:
- 1
- Angle and inclination :
- 90
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3666988860004
- EAN-13
- 3666988860004
- Location
- B3-D-094
- Reference to display
- FORSEB221S9125J
- Supplier reference
- B221S9125J
