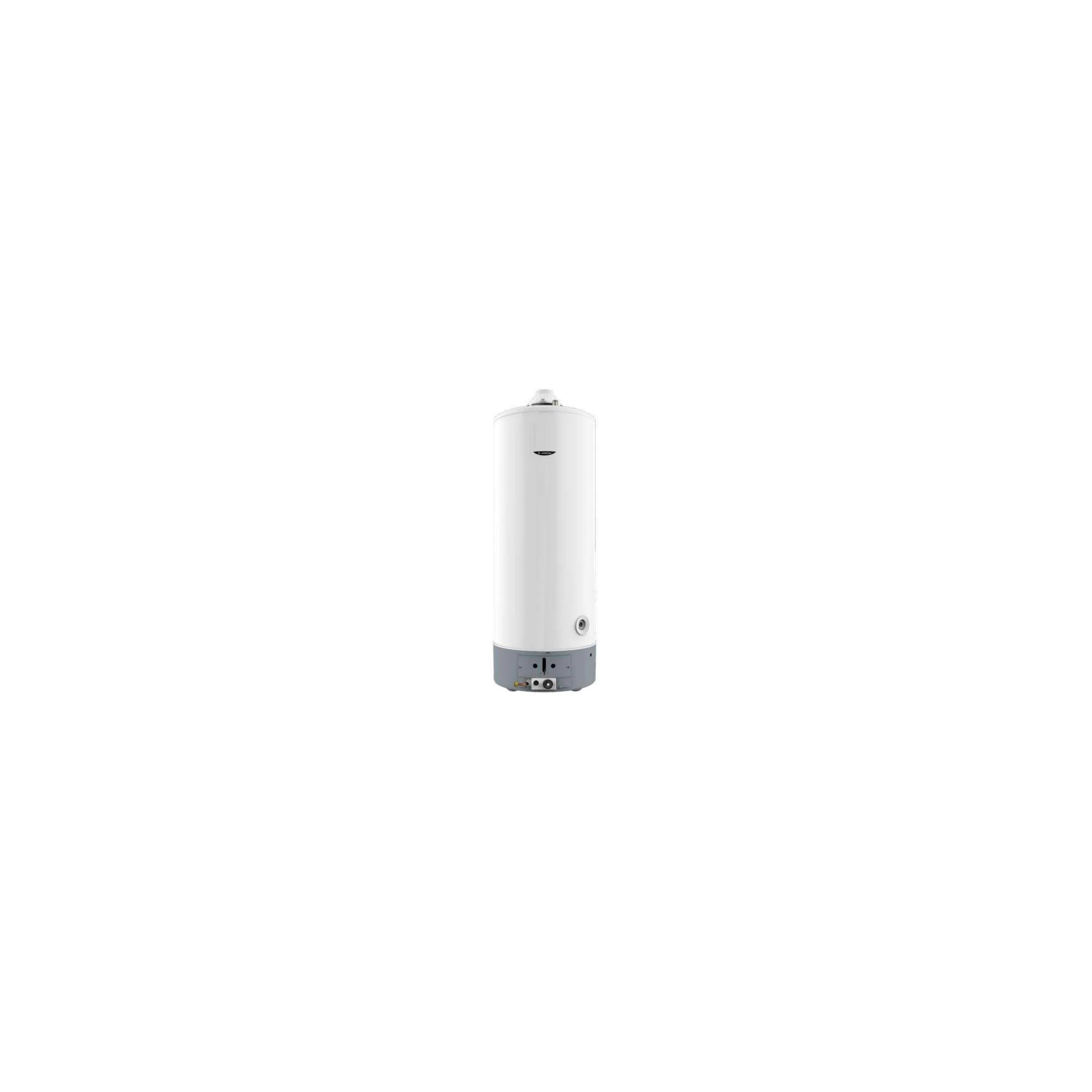

STYX gas accumulator with pilot light, 115 liters, SGA X 120 FR

STYX gas accumulator with pilot light, 115 liters, SGA X 120 FR STYX reference 3211226

STYX gas accumulator with pilot - 115 liters - SGA X 120 FR, new version.

Replaces TES X 120 gas water heater, reference 3211170.

The SGA X accumulator adapts to all installation needs and constraints (floor-to-chimney).

Control and safety system with thermocouple and thermostatic valve.

Enamel-protected steel bowl with magnesium anode.

Low-Nox burner.

Piezoelectric ignition. Electricity-free operation.

External temperature control.

Eco setting at 60°C.

SPOTT system.

Supplied in G20 natural gas with butane-propane pouch.

Features

ErP class ECS : B.

Declared filling profile : L.

DHW storage capacity (liters) : 115.

Balloon type : floor-to-chimney.

Maximum cylinder operating pressure (bar) : 7.

Gas category : G20, G31.

Connection type : B11bs.

Rated power (kW) : 8.

Output power (kW) : 8.

Heating time at ΔT=45°C (min) : 52.

Continuous flow at ΔT=30°C (liters/h) : 204.

Quantity of hot water at ΔT=40°C (liters) : 181.

Min/max operating temperature (°C) : 40 / 70.

Maximum sanitary supply pressure (bar) : 7.

Cooling constant (Wh/l.k.24h) : 1.20.

Heat loss Ua (W/K) : 5.70.

Supply voltage (V) : 230.

Dimensions (W x D x H mm) : 495x520x1200.

Net weight (Kg) : 49.

Reference : 3211226.

Previous reference : 3211170.
