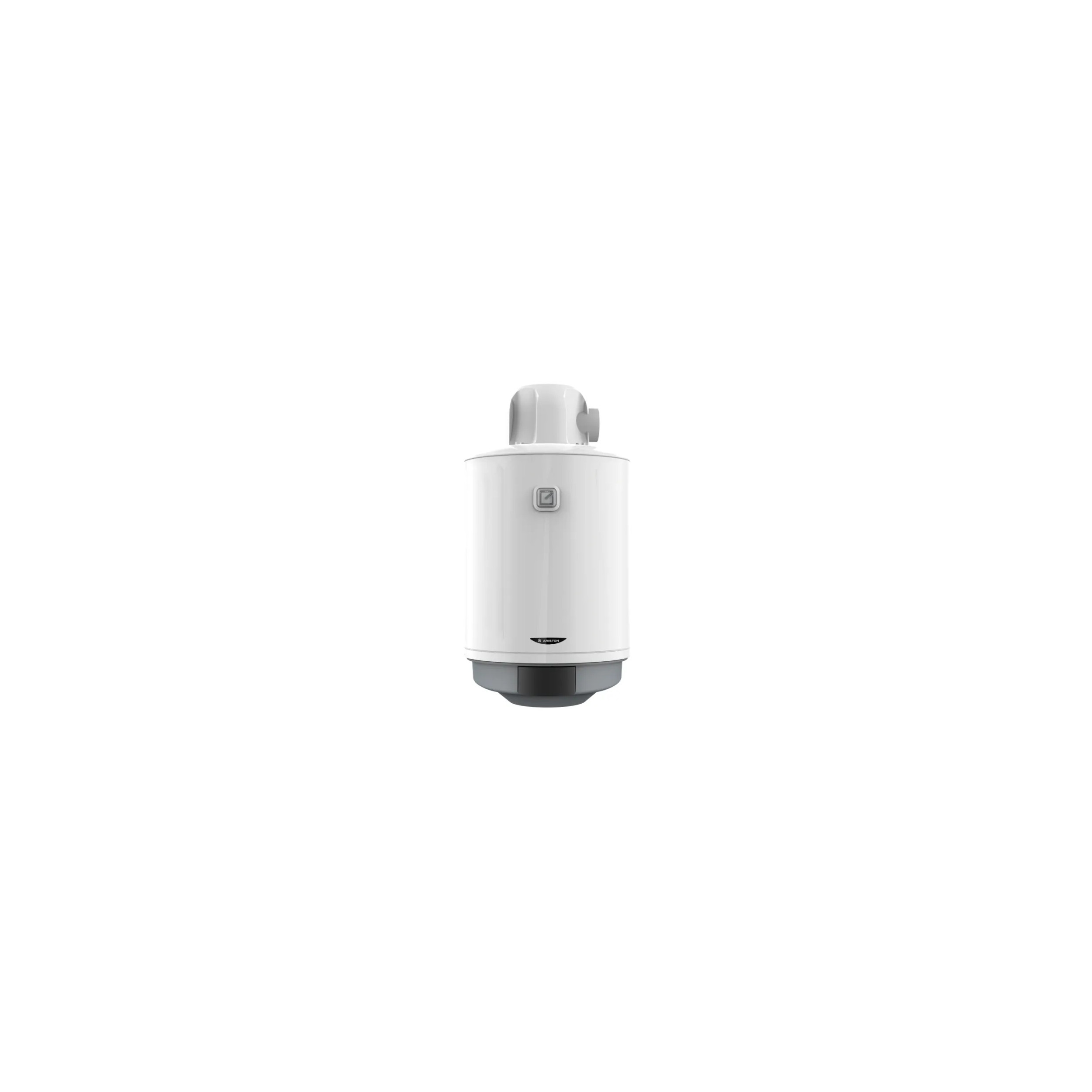

Gas accumulator 100 L Styx S/SGAFFX100, wall-mounted with suction cup (not supplied)

Gas accumulator S/SGAFFX100 Styx 100 L, wall-mounted with suction cup (not supplied) STYX reference 3211232

Product type : Gas storage water heaters

Description :

Compact gas accumulator designed for wall-mounted installation (wall-mounted suction cup not included).

/ Steel tank protected by enamelling and enamel anode
magnesium.

/ Low Nox burners.

/ Electronic ignition and flame control by ionization.
/ Antifreeze function.

/ Horizontal or vertical suction cup.

/ Unit connected to a horizontal forced-flow suction cup
up to 4 m (equivalent straight length).

/ Supplied with natural gas and operates only with G20.

GENERAL CHARACTERISTICS

ErP class ECS: A

Declared filling profile: M

DHW storage capacity: 100 L

Storage tank type: Wall-mounted - suction cup

Maximum cylinder operating pressure: 7 bar

Gas category: G20

Connection type: C12, C13

DOMESTIC HOT WATER

Rated power: 5.2 kW

Output power: 4.7 kW

Heating time at AT-45°C: 66 min

Continuous flow at AT=30'C. 135 l/h

Quantity of hot water at AT-40°C: 165 l

Min. operating temperature: 40 / 72 °C

Maximum sanitary supply pressure: 3 bar

PERFORMANCE

Cooling constants: 0.60 Wh/l.k.24h

Thermal losses Ua: 2.50 W/K

ELECTRICITY

Supply voltage: 230 V

COMBUSTIONPRODUCTS

Pipe diameter: 60/100 mm

Maximum length: 57 m

DIMENSIONS - WEIGHT

WxDxH: 495 x 520 x 1120 mm

Net weight: 57 kg

DELIVEREDWITHOUT SUCTION CUP REFERENCE: MTSVE107061

Supplier: STYX

Supplier reference : 3211232

Previous reference : 3211117
