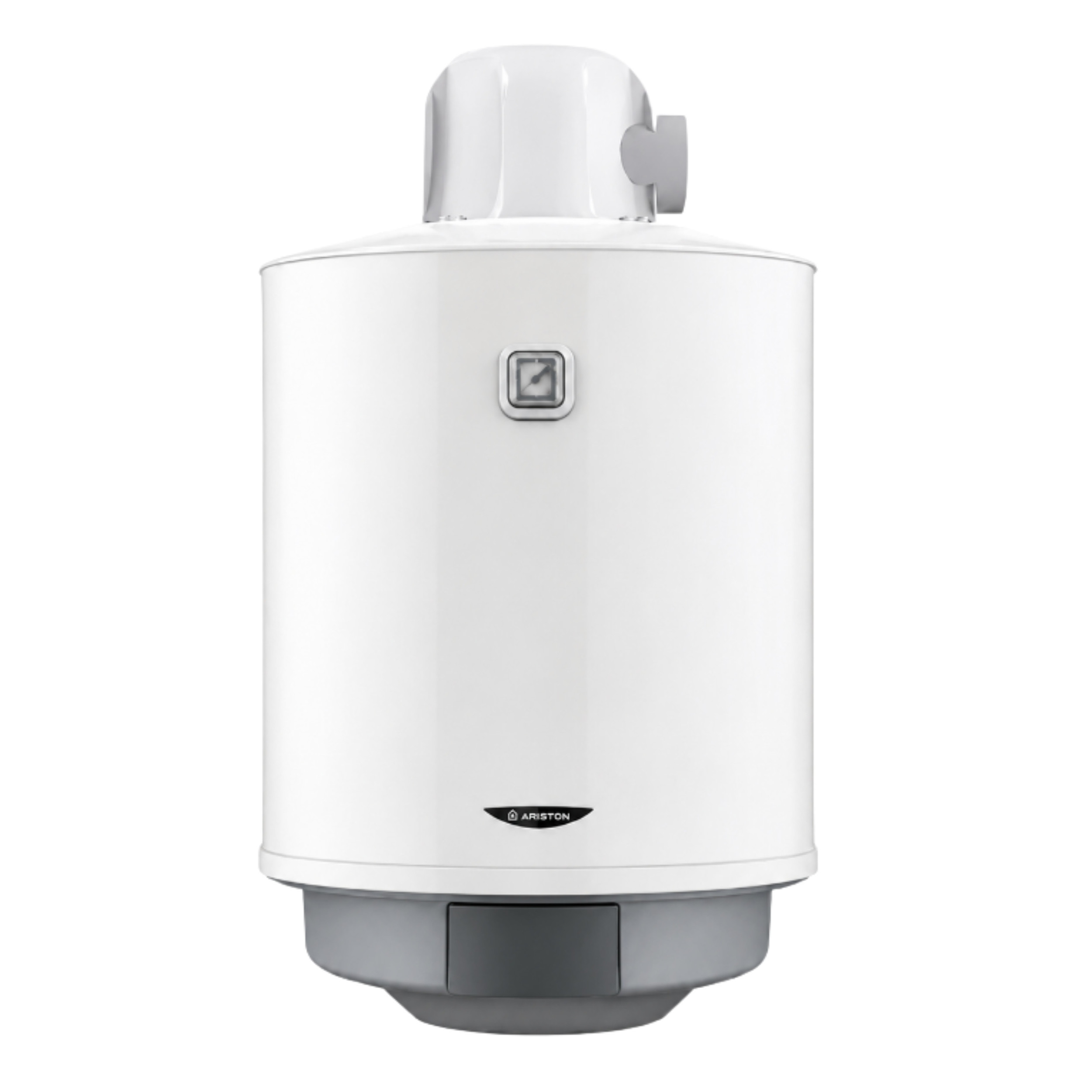

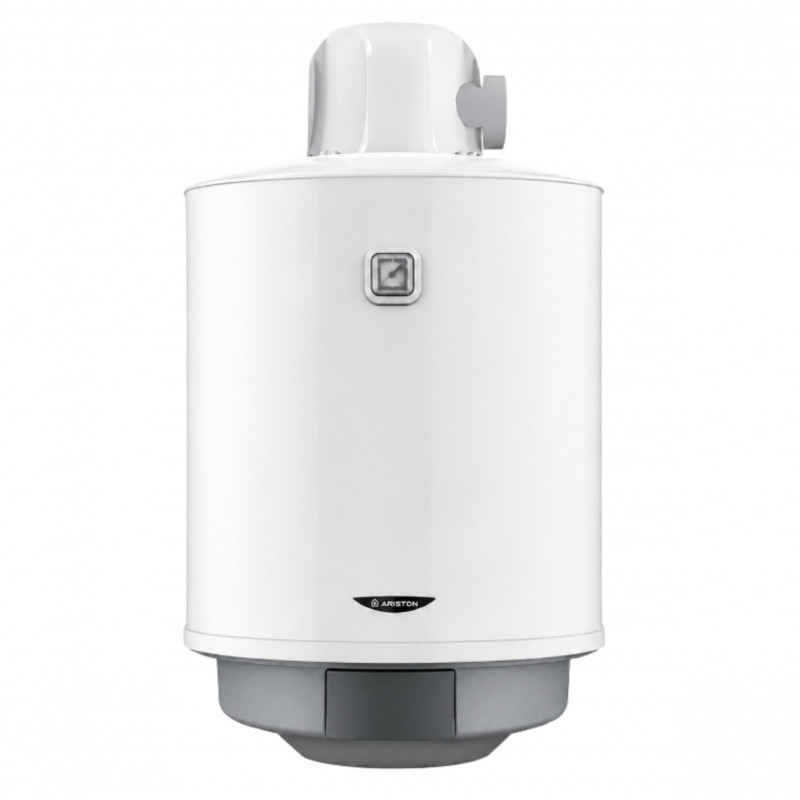

Ariston wall-mounted gas water heater with flue 80L SGA FF X 80

Wall-mounted flue gas accumulator 80L, S/SGA FF X 80

The wall-mounted flue gas accumulator 80L, S/SGA FF X 80 from the brand Ariston, reference 3211233, is designed for wall installation with a flue exhaust system. This model replaces the old reference STYX SFB-E X 80 (3211116). The tank is made of steel, protected by enamel and a large magnesium anode, offering increased protection.

This water heater uses a low NOX emission burner, with electronic ignition and flame control by ionization. It is equipped with an anti-freeze function and is delivered in natural gas, operating only in G20. The capacity is 75 liters, with an energy class A and a draw-off profile M. The nominal power is 5.2 kW, with a heating time of 50 minutes at deltaT 45°C and a flow rate of 135 L/h at deltaT 30°C.

Technical characteristics

• Battery or cell included: No
• Packaging: 1
• Main color: White
• Warranty: 2 years
• Length (cm): 96.5
• Main materials: Steel
• Origin: made in Europe
• Weight (kg): 38
• Power (W): 5200
• Capacity: 75 Liters
• Energy class: A
• Draw-off profile: M
• Heating time at deltaT 45°C: 50 min
• Flow rate at deltaT 30°C: 135 L/h
• Maximum pressure: 3 bar
• Conduit diameter: 60/100 mm
• Dimensions (HxWxD): 965 x 495 x 520 mm
• Manufacturer: Ariston
• Manufacturer reference: 3211233
• Internal reference: MTSAC3211233
• EAN: 5411692099046

Observations

• Operates only with natural gas G20
• Flue sold separately (reference 107061)

Note: The flue is sold separately and can be ordered with reference 107061.
