Injection screen 12 x 85 mm - Fischer - Référence fabricant : 503787 Maximize

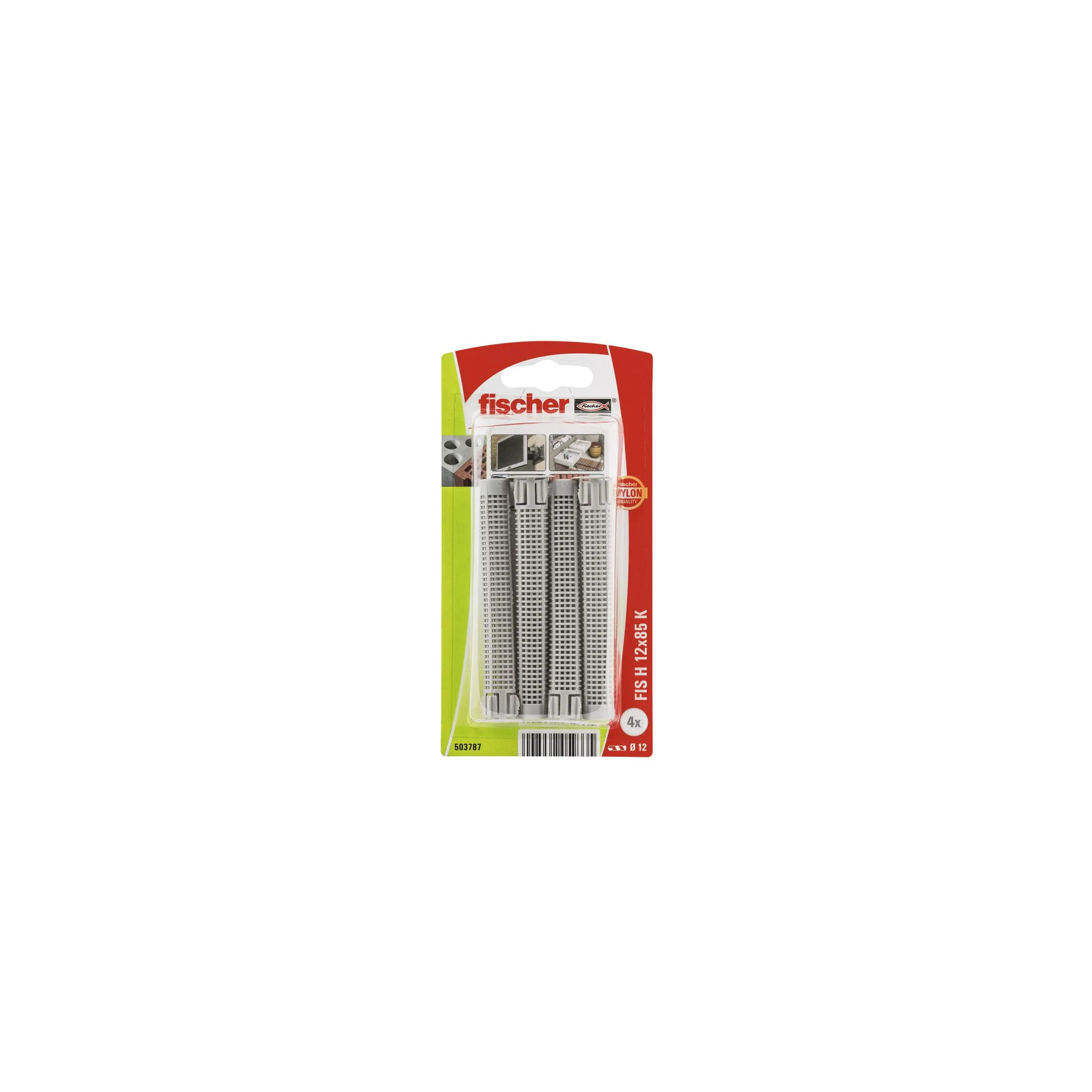

Injection screen 12 x 85 mm

503787

infobulle

EAN13 : 4048962059335

SKU : FISTA90668

Emplacement : A2-D-031

Fabricant : Fischer

Réf : 503787

Emplacement : A2-D-031

More details


6,24 € 6.24 EUR tax incl.


5,20 €tax excl.

En réapprovisionnement -> disponible sous 10 jours

Expédition à partir de 5,00 €. En savoir +
Options de livraisonPrix
Chez un commerçant5,00 €
Bureau de poste5,00 €
Colissimo à domicile7,00 €
Chronopost 24h en point relais8,00 €
Chronopost 24 à domicile12,00 €
Geodis 24h16,00 €
GEODIS France Express20,80 €
Retrait au magasin ESPINOSA à Montpellier0,00 €

Moyenne des votes pour ce produit

Moyenne : 0 / 5
Basée sur 0 avis clients.

The FIS H K plastic injection screen is the system component for using fischer resins in hollow masonry. The screen is inserted into the borehole and filled with resin from the bottom. When the threaded rod or threaded sleeve is inserted, the resin is compressed through the mesh structure of the sieve and creates a form lock in the hollow brick. The load is thus transferred into the building material. The injection sieve can also be used to penetrate non-bearing layers.

Main features

  • The screen structure reduces resin consumption.
  • The screen allows for optimal shape locking in the hollow brick.
  • The guide vanes fix threaded rods of different diameters. This reduces complexity and storage.
  • Barbed wire: no slippage when mounted on the ceiling.
  • ETA - European Technical Approval.

Benefits

  • The grid structure of the FIS H K screen is suitable for FIS V, FIS HT II, FIS GREEN or FIS Plus resins and ensures economical resin consumption with optimal shape lock.
  • The guide wings centre the anchor perfectly in the sieve and allow the use of threaded rods of different diameters.
  • The barbs hold the screen firmly in the hole, allowing for trouble-free ceiling mounting.
  • The geometry of the sieve allows it to pass through non-bearing layers for convenient and simple installation.

Applications

  • Anchoring in hollow masonry with FIS V, FIS HT II, FIS Plus and FIS GREEN resins

Materials

Approved for :
  • Brick with vertical perforations
  • Lightweight hollow concrete block
  • Hollow concrete block
  • Perforated sand-lime brick
  • Solid sand-lime brick
  • Solid brick
Also suitable for :
  • Hollow pumice slabs
  • Hollow material slabs and other perforated bricks
  • Pumice and other solid building materials
Details (building materials, loads, etc.) of the approval, if available, apply

Operation / Assembly

  • Depending on the application, the use of FIS V, FIS VW HIGH SPEED, FIS VS LOW SPEED, FIS HT II, FIS GREEN or FIS PLUS resins is possible.
  • The system consisting of the injection screen and the threaded rod FIS A or FIP G, or the threaded sleeve FIP M, is suitable for standby installation.
  • The injection screen is inserted into the hole and filled with resin from the bottom.
  • When the anchor is inserted, the resin is compressed through the mesh structure of the injection screen and adapts optimally to the substrate. The load is taken up by form-locking.

Injection screen 12 x 85 mm

Injection screen 12 x 85 mm

Chemical seal Fischer. Injection screen 12 x 85 mm reference 503787.
