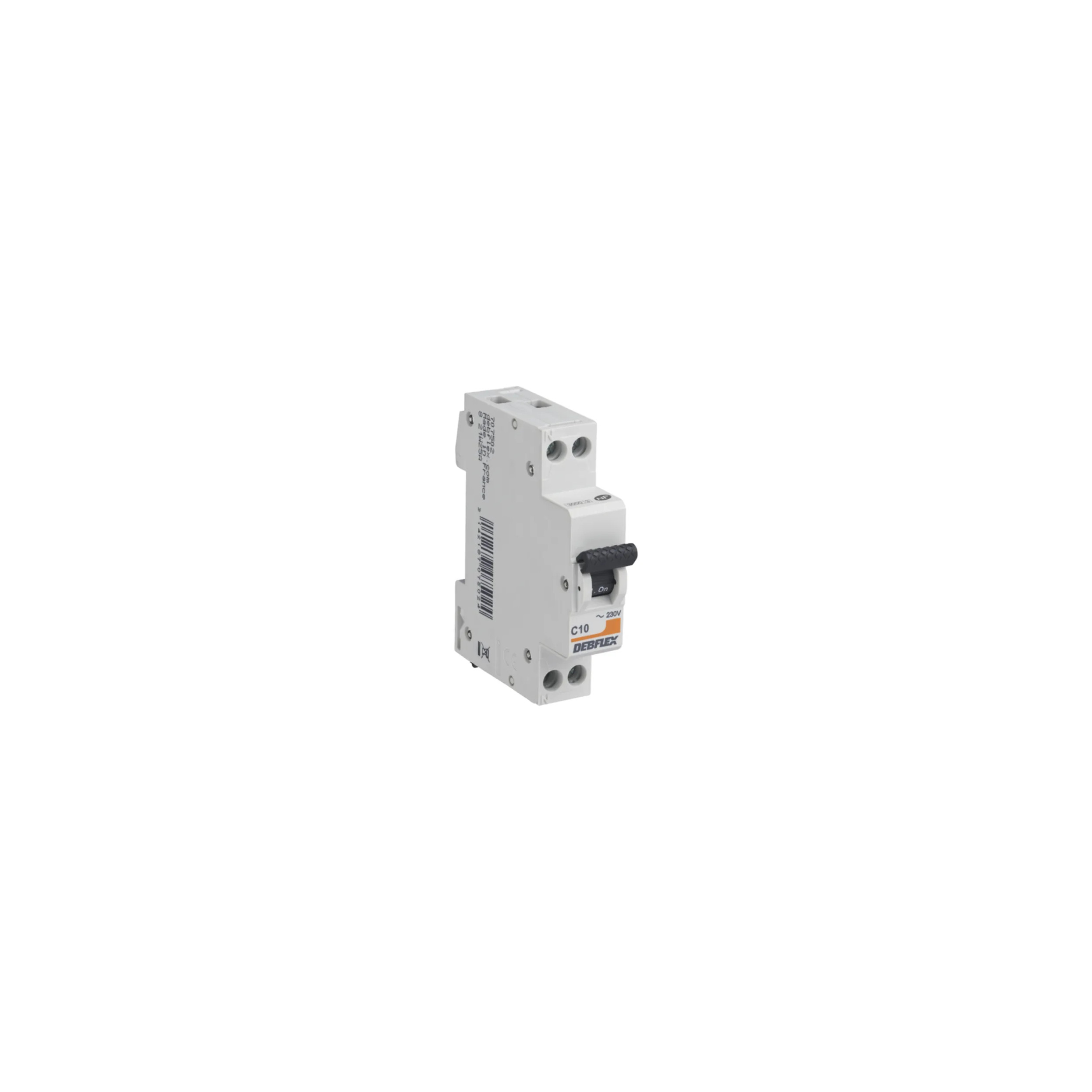

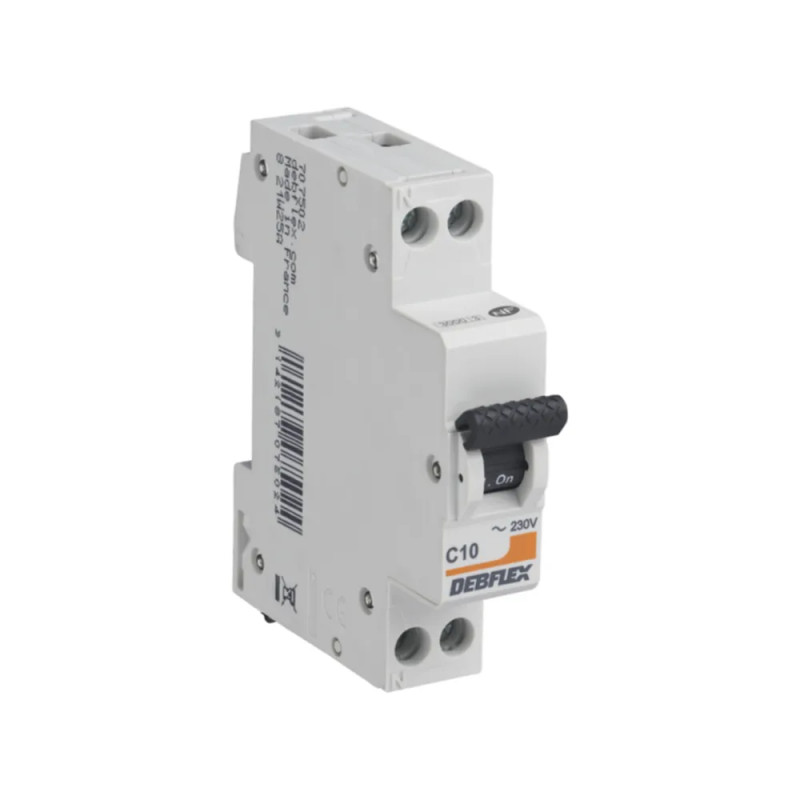

3kA PH Plus N10A circuit breaker
DEBFLEX 707502
DEBFLEX Phase + Neutral circuit breaker. Circuit breaker 3kA PH Plus N10A reference 707502.
Pour particuliers, professionnels, administrations, collectivités, Mairies, CHU, etc...Paiement fin de mois par virement possible
pour les Administrations et Collectivités.
(après création et validation de votre compte)
pour les Administrations et Collectivités.
(après création et validation de votre compte)
Moyenne des votes pour ce produit
Moyenne : 0 / 5
Basée sur 0 avis clients.
Basée sur 0 avis clients.
3kA PH Plus N10A DEBFLEX circuit breaker part no. 707502
General description
- Commercial range: MODULAR PROTECTION
- Function: Circuit breaker
- Full designation: Circuit breaker Ph+N 10A
- Rail system mounting: DIN
- Color: White
Technical data
- Rated operating voltage Ue : (V) 230V
- Rated current In: (A) 10A
- Rated frequency: (Hz) 50Hz
- Type of current : Alternating
- Total number of poles: 2
- Number of protected poles: 1
- Rated insulation voltage Ui : (V) 400V
- Rated impulse withstand voltage Uimp: (V) 4000V
- Instantaneous trip characteristic C
- Reference calibration temperature: (°C) 30°C
- Rated differential breaking capacity: 3000A
- Rated short-circuit current: 3000A
- Breaking capacity of a single pole: 3000A
- Trigger mode: Magnetothermal
- Energy limitation class (I²t): 1 Grid distance (short-circuit tests): 55mm
- Type of protection against external influences: Closed
- Terminal type: Screw
- Terminal screw diameter 4mm
- Terminal material: Zinc-plated steel
- Wiring diagram: Yes
Environmental features
- Operating T° (°C) : -5°C to 50°C
- Tightness level: IP20
- Shock resistance: 850°C
- Fire resistance: Yes
- UV resistance: Yes
- Storage T° 25°c
Standards, approvals and contracts
- Warranty: 2 years
- CE certification: Yes
- NF certification: Yes
- Reference standard: EN 60898
- ROHS : Compliant
Reference Debflex 707502 / DEBDI707502
Technical data
| Modular switchgear | |
|---|---|
| Product range | Modular protection |
| Function | Circuit breaker |
| Intensity | 10 A |
| Number of clusters | 1P+N Pole(s) |
| Connection | Screws |
| Switching capacity | 3 kA |
| Curve | C |
| Number of module(s) | 1 |
| Voltage | 230 V |
