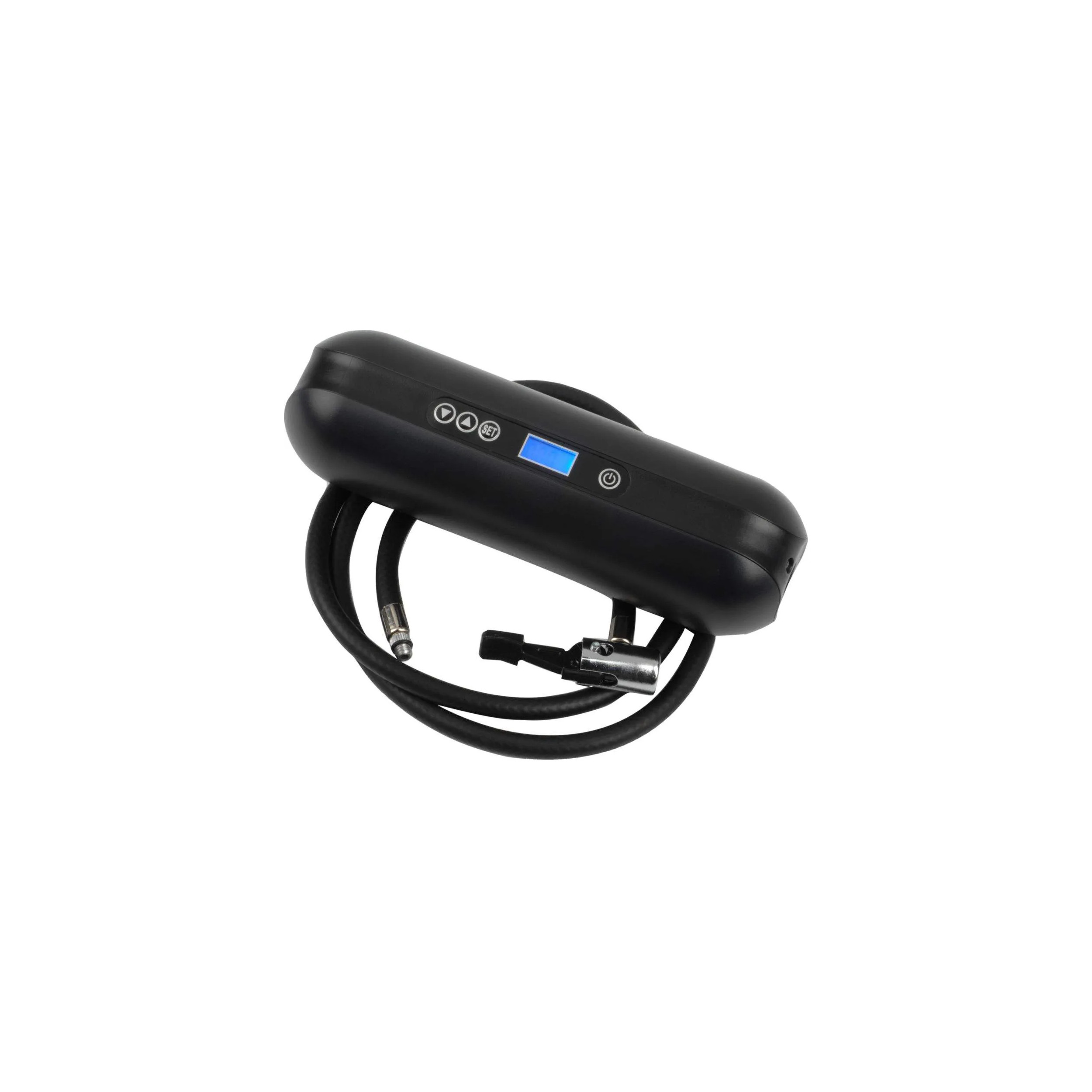

Inflator pump for a refillable expansion tank

RECHARGEABLE ELECTRIC PUMP - MES20002 - CHIMECO

Please read the manual carefully before using this product, which can be applied to inflate boiler expansion tanks or cars, bikes, motorcycles, balloons, inflatable toys, etc. It can also be used as a pressure gauge.

Comes with: Power switch, Charging port, 1m connection hose, AC power adapter, 12v car charger, Led lamp (360 lumens)

Operation
- The pump can be charged/recharged by plugging it into a car cigarette lighter socket (12V adapter, included) or into a mains socket (AC adapter, included). The electric pump must be fully charged before use.

Inflating :
- Connect the threaded end of the air tube to the inflator and connect the other end of the nozzle to the valve.
- Press the "UNITS" button repeatedly to select your target pressure unit (PSI, BAR, KPA or kg/cm2). The "+" and "-" buttons are preset buttons. Press either button repeatedly to slowly adjust the target pressure. Press and hold to quickly go to the target pressure.
- Press the Power button to begin inflation. (During inflation, the LED will light up)
- Once the tire is inflated to the set value, the electric pump automatically stops inflating.
Press the Power button to turn off the LED. You can also stop the inflation process and manually turn off the pump by pressing the Power button at any time (in this case, the light will turn off at the same time).
- After inflation, remove the tube from the valve nozzle.
- Store in a clean, dry environment.

Pressure test function :
- Connect the electric pump to the tire, then press the "unit" button, the LCD screen will display the current pressure.

Off-load function :
- If no pressure is detected while the pump is activated, it will automatically shut off after 60 seconds.

Turn on/off the LED lamp :
- When the LCD monitor is not activated, press the Power switch to turn the COB lamp on/off.

Reloading :
- The battery icon on the LCD screen indicates the power status of the unit. At the latest when the icon shows only a bar, connect the electric pump to a power source. When using the AC adapter, a red LED indicates charging. When the battery is fully charged, the LED turns green.

WARNING
- Keep the electric pump away from children! The use of this inflator is not permitted for
children.
- Do not use in flammable or explosive areas (such as a gas station).
- Interrupt product activation for 15 minutes if the temperature is too high or if the pump
makes unusual noises when operating.
- Keep the electric pump away from wet environments.
- Do not drop it on the floor or hit it on a hard surface.
- Please charge the device at least twice a year.
- Make sure the unit has sufficient power before using the rechargeable pump.
- Before charging the electric pump via the 12V adapter, please check its plug and fuse for safety. When charging the inflator via the 12V adapter, do not turn off the car engine.
- To ensure that you can enjoy the benefits of your electric pump, please stop using it
for every 8 minutes of inflation time.
- Keep the electric pump away from children! The use of this inflator is not permitted for
children.
- Do not use in flammable or explosive areas (such as a gas station).
- Interrupt product activation for 15 minutes if the temperature is too high or if the pump
makes unusual noises when operating.
- Keep the electric pump away from wet environments.
- Do not drop it on the floor or hit it on a hard surface.
- Please charge the device at least twice a year.
- Make sure the unit has sufficient power before using the rechargeable pump.
- Before charging the electric pump via the 12V adapter, please check its plug and fuse for safety. When charging the inflator via the 12V adapter, do not turn off the car engine.
- To ensure that you can enjoy the benefits of your electric pump, please stop using it
for every 8 minutes of inflation time.

For your safety and the safety of others, please use the electric pump and accessories only as described in the above instructions. It can be dangerous and cause damage or injury if used in any way other than as described above.

We reserve the right to make technical and equipment changes.
