- New

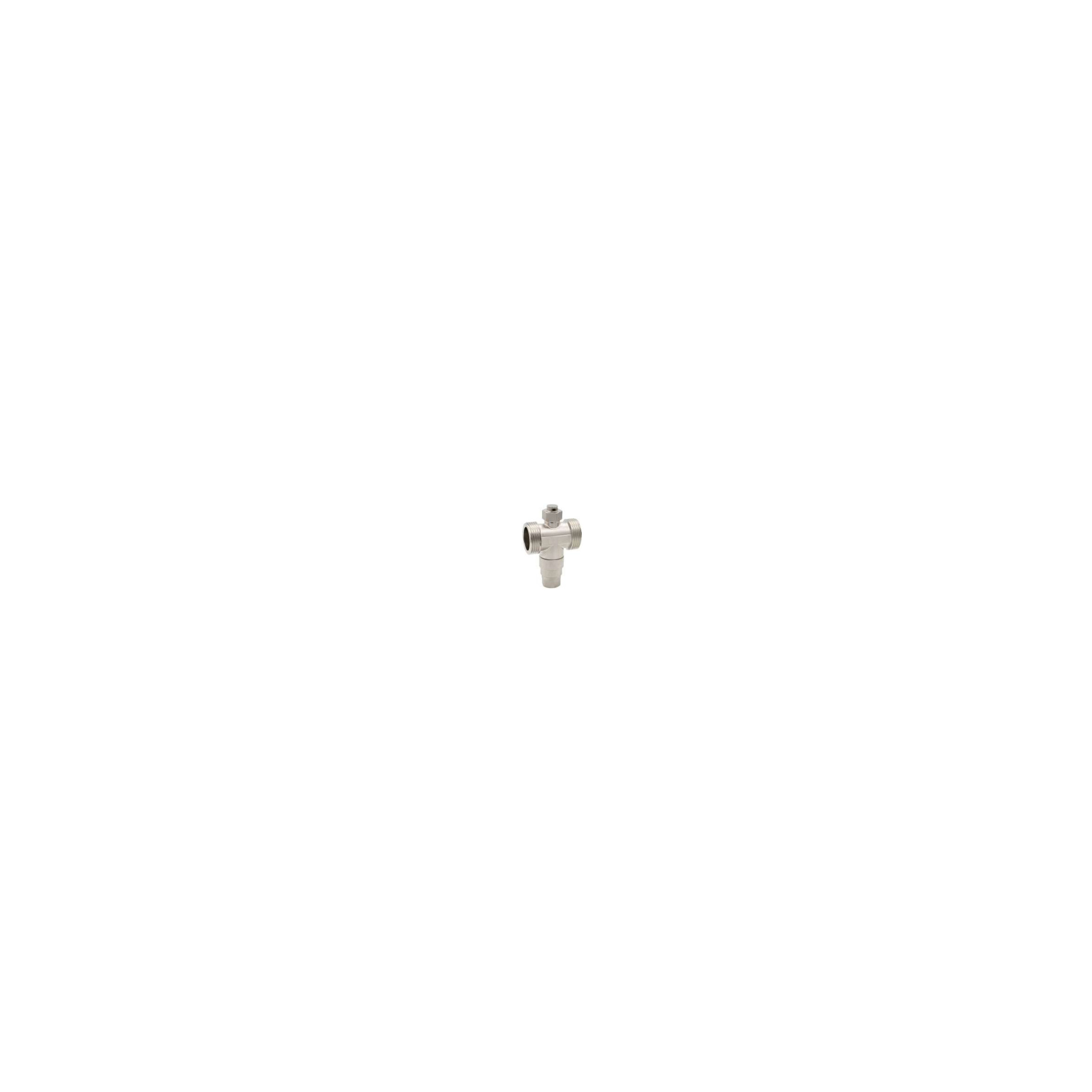

Male male anti-freeze valve CODTHERM in 26x34
€60.14
Tax Included
(50.12 € HT)
Référence Coditherm : SY90
Emplacement magasin :
Coditherm SY90 Anti-Freeze Valve The Coditherm SY90 Anti-Freeze Valve is a safety device for heating systems. Made of nickel-plated brass, it automatically opens at 3°C and closes at 4°C to prevent ice formation in the circuit. With a thread of 26x34, it is ideal for any closed heating network at risk of freezing.
Safety guarantees
Delivery policy
Returns policy
CODTHERM Male-Male Anti-Freeze Valve in 26x34 - Heating Safety Valves - Coditherm
The CODTHERM Male-Male Anti-Freeze Valve in 26x34 is designed to protect any closed heating network from the risk of freezing. It prevents ice formation in the circuit of a heat pump installation, thereby avoiding potential damage to the generator and piping.
It operates by draining the fluid from the circuit when the temperature reaches 3 °C. Furthermore, the presence of anti-freeze valves on the supply/return circuits makes the use of glycol unnecessary and improves the heat transfer capacity of the heat transfer fluid.
Technical Specifications
- Body in nickel-plated brass
- Opening temperature: 3°C
- Closing temperature: 4°C
- Drainage: Micro-drip volume evacuated 1.1 l/h
- Operating temperature range: from 0 to 65°C
- Ambient temperature range: from -40° to 60°C
- Max operating pressure 10 bars
- Unit packaging
- Weight: 0.250 kg
- Threads: 1 (26x34)
- Reference: COHSOSY90
- Supplier reference: SY90
Data sheet
- Weight (kg) :
- 0.250
- Packaging:
- 1
- Threads :
- 1" (26x34)
Specific References
- EAN13
- 370033333358
- EAN-13
- 370033333358
- Location
- Reference to display
- COHSOSY90
- Supplier reference
- SY90
New
chat
Product questions & answers
Ask your question
No customer reviews for the moment.
This product uses a standardized thread. Need to check the compatibility between BSP, metric, or NPT threads? Consult our thread conversion chart to find the exact equivalence and choose the correct fitting.
