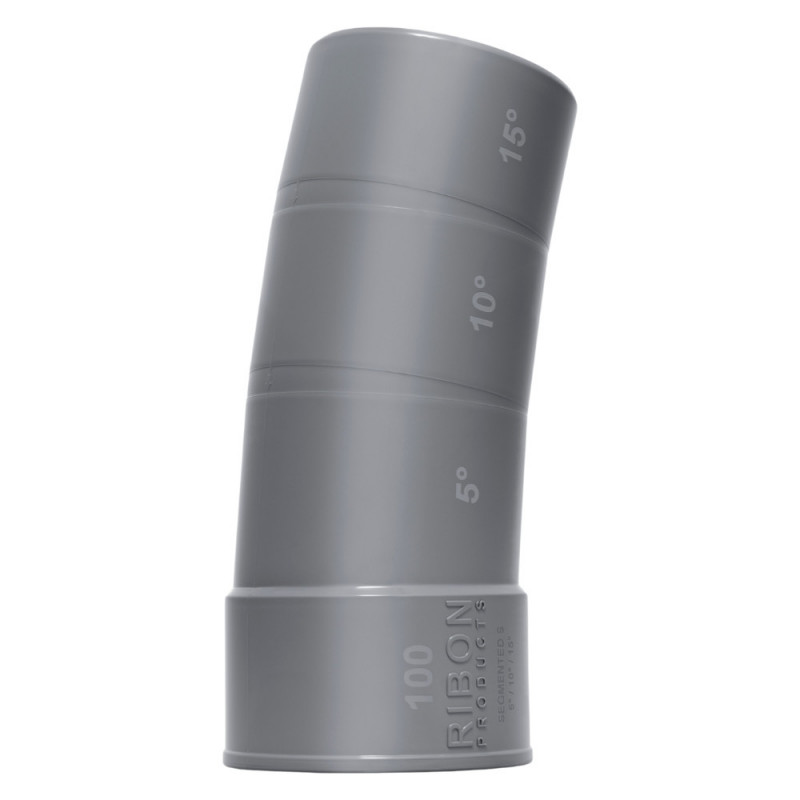

PVC elbow 100 mm multi-angle 5°/10°/15° breakable male female

PVC Elbow 100 mm multi-angle 5°/10°/15° male female RIBON reference SEG100S

Product type: Multi-angle PVC elbow for drainage

Description:
The multi-angle elbow SEG100S is a male/female fitting in PVC-U intended for the drainage of wastewater, sewage, and rainwater, indoors or buried (compliant with zone BD).

This breakable elbow at 5°, 10°, or 15° allows great installation flexibility to adapt to all types of configurations.

Made in France, it complies with reference standards for durable and reliable installation by gluing.

Technical characteristics:

• Reference: SEG100S
• Diameter: 100 mm
• Angles: 5° / 10° / 15°
• Type: Male / Female
• Material: PVC-U (non-microporous polyvinyl chloride)
• Color: Gray / White
• Application: EU, EV, EP – indoor or buried (BD)
• Assembly: To glue – compatible with PVC glue standard EN 14680 or EN 14814
• Standards: EN 1329-1, EN 1453-1
• Environmental quality: 100% recyclable PVC, 5° drop usable

Compatibility:
Compatible with all fittings and tubes on the market compliant with standards EN 1329-1 and EN 1453-1.

Implementation:
The elbow can be used whole or sectioned according to the desired angle. Assembly by gluing the socket. Respect the DTU and best practices (Fascicle 70).

Physical and mechanical resistance:

• Density: 1.41 g/cm³ (ISO 1183-1)
• Vicat class: 80°C (ISO 306)
• Shore D hardness: 80 (ISO 868)
• Tensile strength: 46.5 N/mm² (ISO 527)
• Elongation at break: 140% (ISO 527)
• Elasticity modulus: 2950 N/mm² (ISO 178)
• Impact resistance: 50 J/m (ISO180/ASTM D256)
• Fire reaction: Class VO (ISO180/ASTM D256)

Specific characteristics:

• Anti-ovalization collar
• Constant radius body without joint plane
• Fine calibration for non-tight connections
• Thicknesses exceeding standards

Supplier: RIBON

Reference: SEG100S
