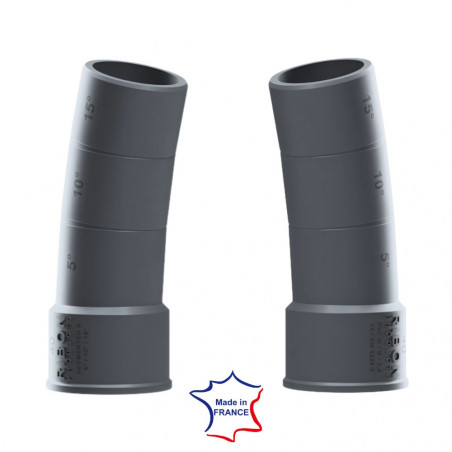

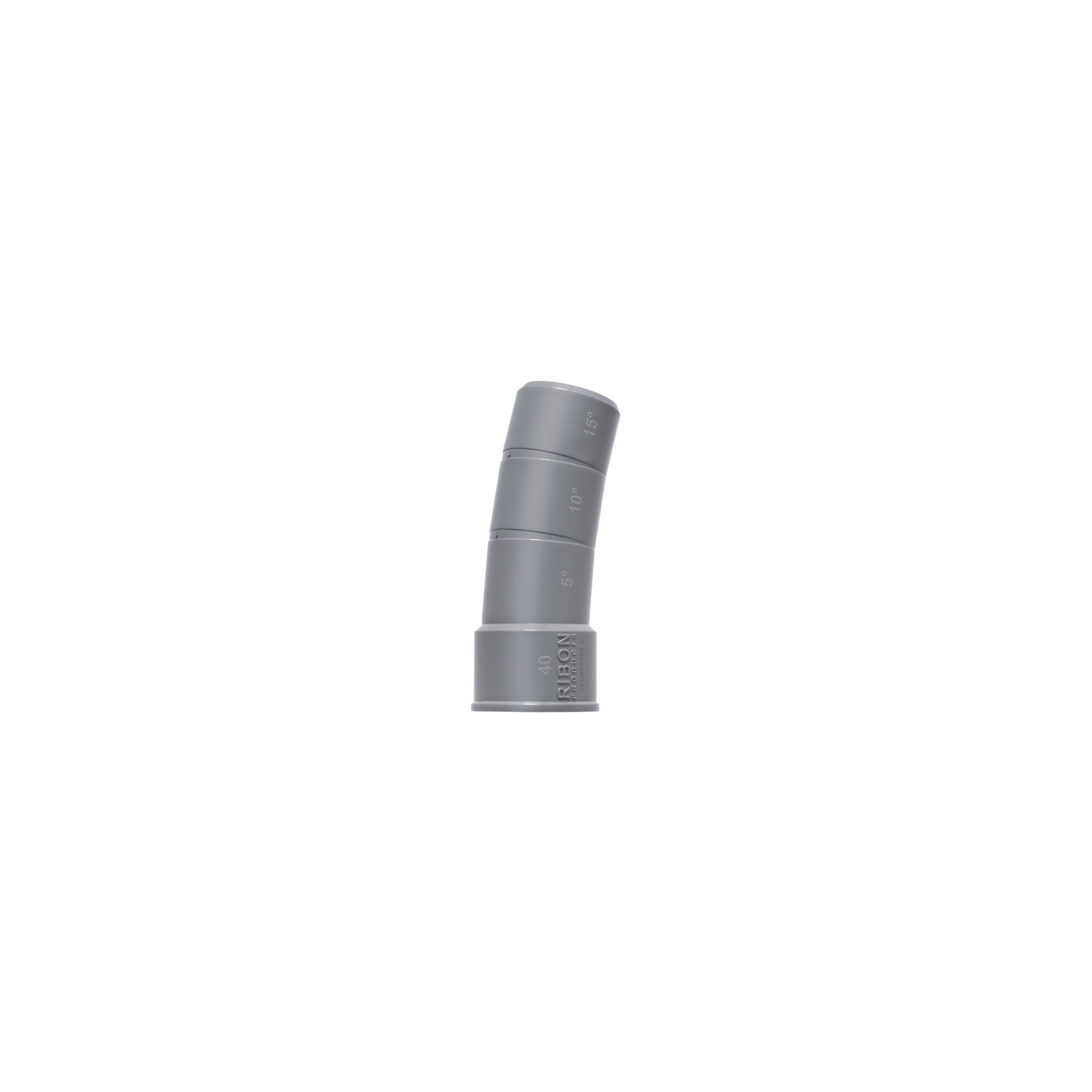

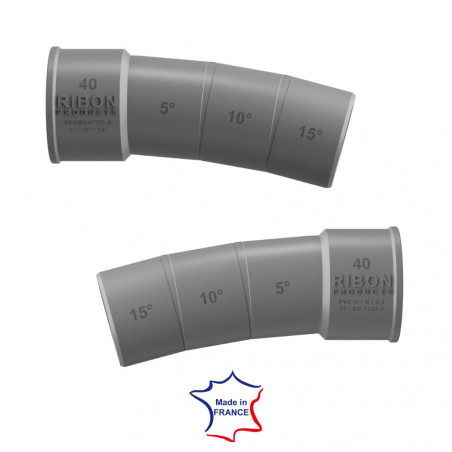

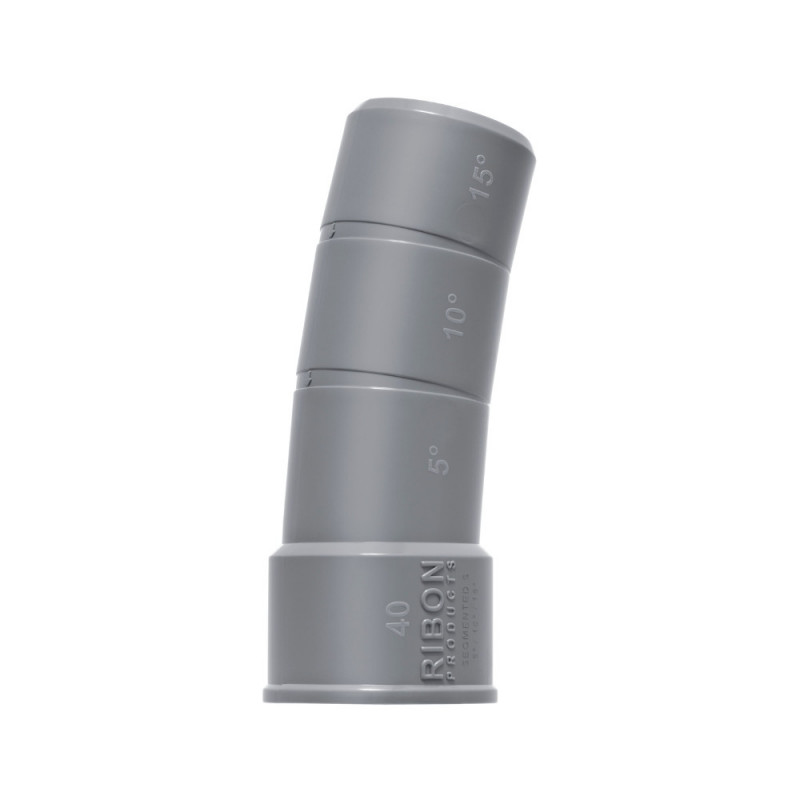

PVC elbow 40 mm multi-angles 5°/10°/15° male female

PVC elbow 40 mm multi-angle 5°/10°/15° male female RIBON reference SEG40S

Product type: Multi-angle male/female PVC elbow

Description:

PVC elbow multi-angle 5° / 10° / 15° with male/female 40 mm ends, designed for drainage networks (EU), waste water (EV) and rainwater (EP), indoors or buried in the building structure.

Thanks to its integrated cutting marks, the elbow can be cut according to the desired angle, offering great modularity without specific tools or heating of the PVC.

Made of 100% recyclable rigid PVC-U, this fitting complies with the EN 1329-1 standard and has increased resistance to shocks and ovalization.

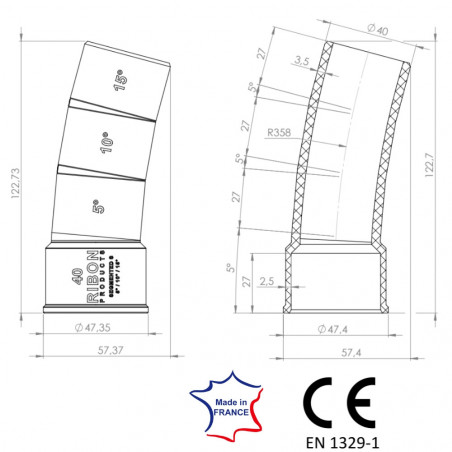

Technical specifications:

Diameter: 40 mm (male / female)

Available angles: 5°, 10°, 15° (cuttable as needed)

Height: 122.73 mm

Material: 100% recyclable rigid PVC-U

Collar: Anti-ovalization

Usage: EU, EV, EP – indoor and buried

Compliance: CE standard EN 1329-1 – CSTB tests no. 593DEM23 - 600

Advantages:

No need to heat or force the PVC

Flexible and precise connection

Constant radius without flow disruption

Cuttable to adjust the angle

Manufacturing: 100% French

Patent: RIBON multi-angle elbows – French patent filed internationally

Supplier: RIBON

Reference: SEG40S
