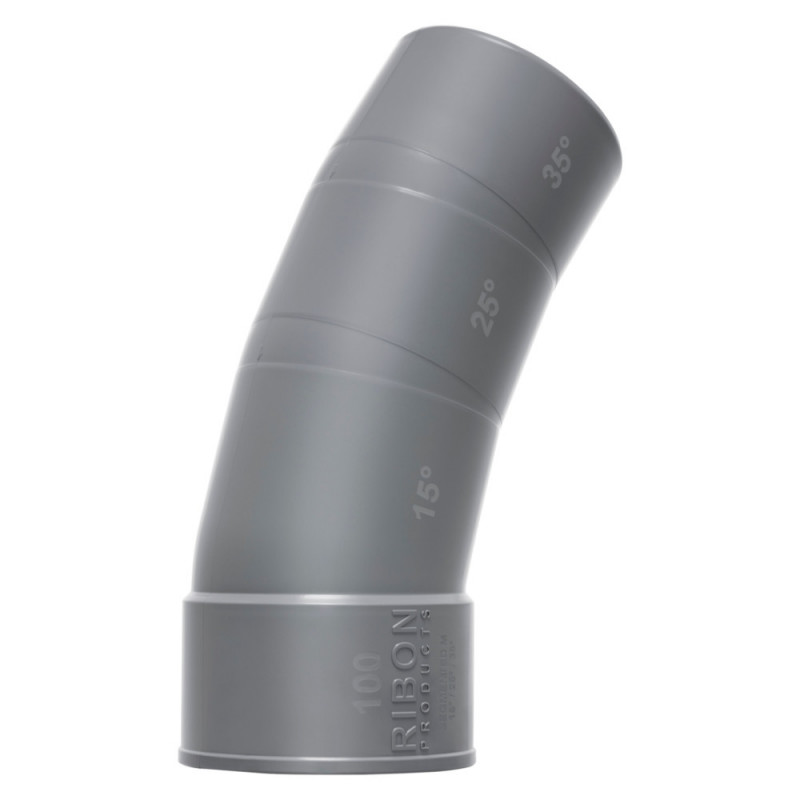

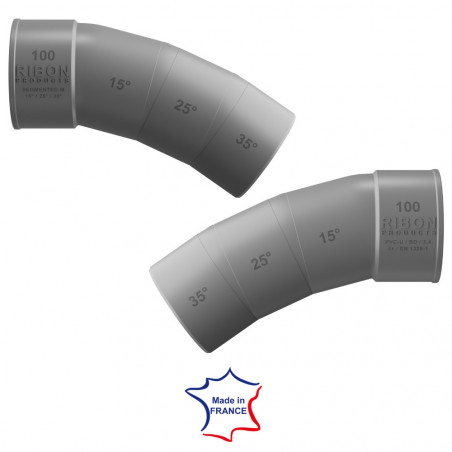

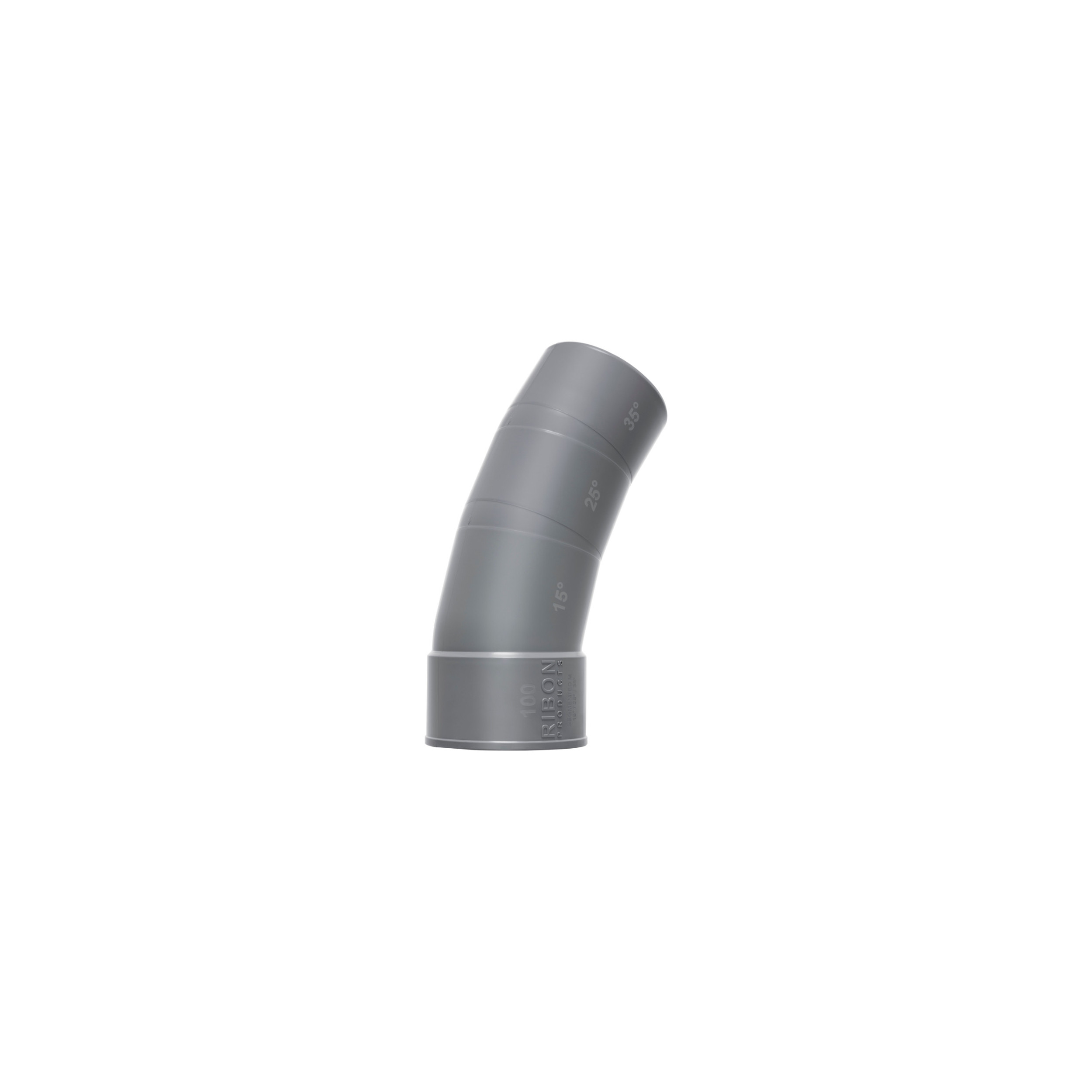

PVC elbow 100 mm multi-angles 15°/25°/35° male female

PVC elbow 100 mm multi-angle 15°/25°/35° cuttable male female RIBON reference SEG100M

Product type:
Multi-angle PVC elbow for drainage

Description:
The multi-angle PVC-U 100 mm elbow (15°/25°/35°) male female is designed for the drainage and ventilation of wastewater, sewage, and rainwater, indoors or underground. Thanks to its cuttable design, it offers maximum installation flexibility and adapts to all configurations. Equipped with an anti-ovalization collar, precise calibration, and a constant radius internal curvature, it guarantees no pressure loss and universal compatibility with all pipes and fittings on the market. Made in France, this fitting has dimensions and thicknesses exceeding standards, excellent impact resistance, and is made of 100% recyclable PVC.

Technical specifications:

• Reference: To be completed
• Nominal diameter: 100 mm

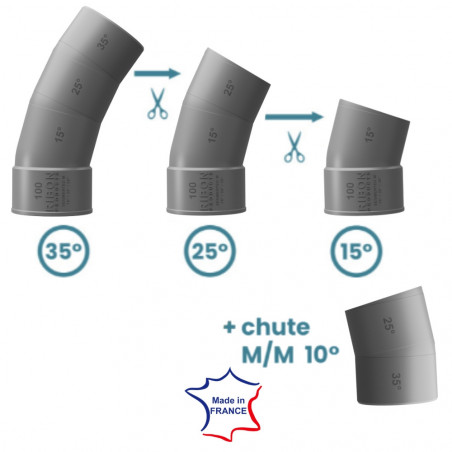

• Available angles: 15° / 25° / 35° (cuttable)
• Type of fitting: Male / Female
• Material: PVC-U (non-microporous polyvinyl chloride)
• Color: Gray
• Application: Wastewater drainage (EU), sewage (EV), rainwater (EP), indoor or underground (BD)
• Assembly: To be glued – compatible with PVC glue EN 14680 or EN 14814
• Standards: EN 1329-1 (CE)
• Origin: France
• French patent
• Environmental quality: 100% recyclable PVC, 15° drop usable
• Anti-ovalization collar
• Fine calibration for non-tight connections
• Body with constant radius, without internal joint plane
• Thicknesses exceeding standards
• Enhanced resistance to ovalization and impacts

Physical and mechanical resistance:

• Density: 1.41 g/cm³ (ISO 1183-1)
• Vicat class: 80°C (ISO 306)
• Shore D hardness: 80 (ISO 868)
• Tensile strength: 46.5 N/mm² (ISO 527)
• Break at elongation: 140% (ISO 527)
• Elasticity modulus: 2950 N/mm² (ISO 178)
• Impact resistance: 50 J/m (ISO180/ASTM D256)
• Fire reaction: Class VO (ISO180/ASTM D256)

Supplier: RIBON

Reference: SEG100M
