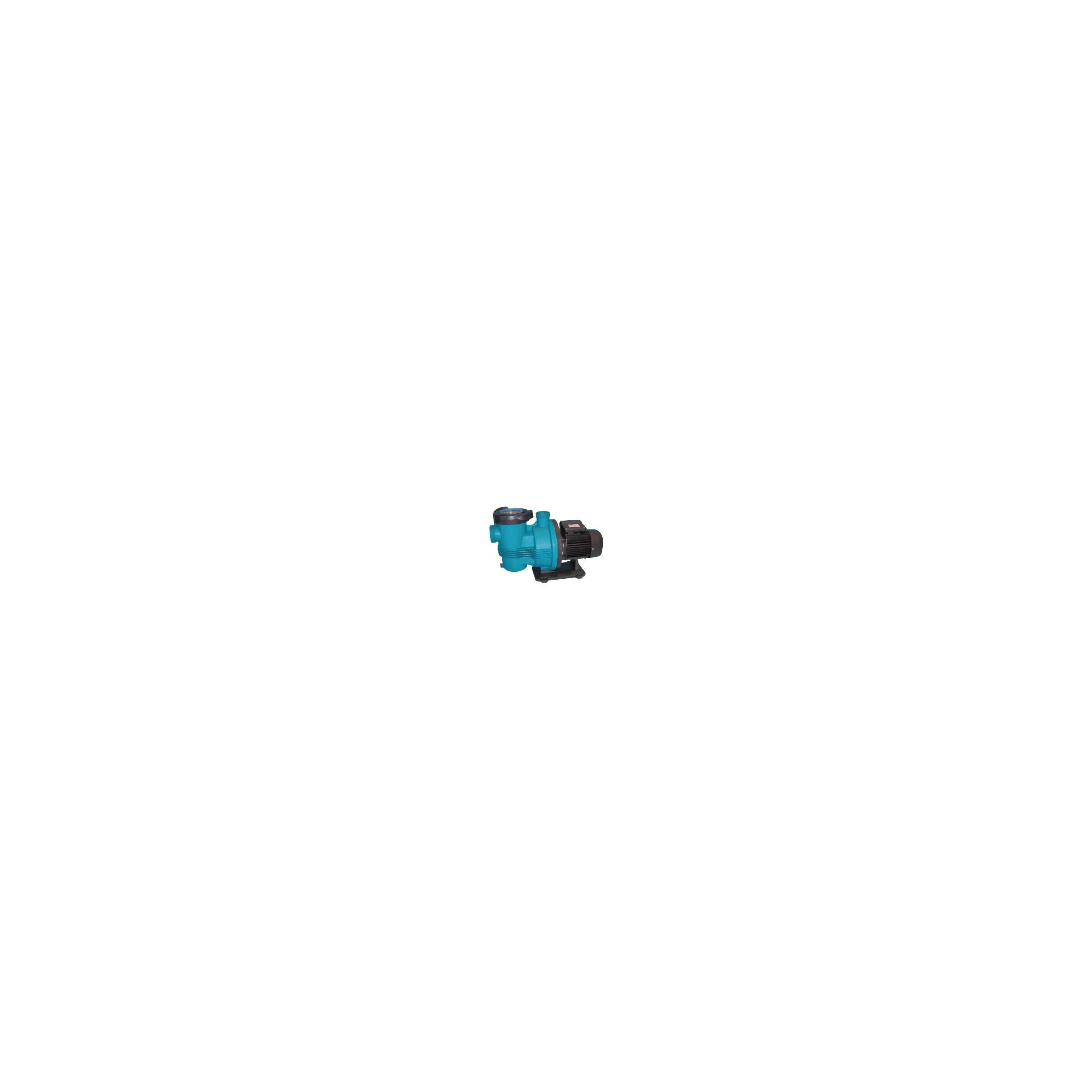

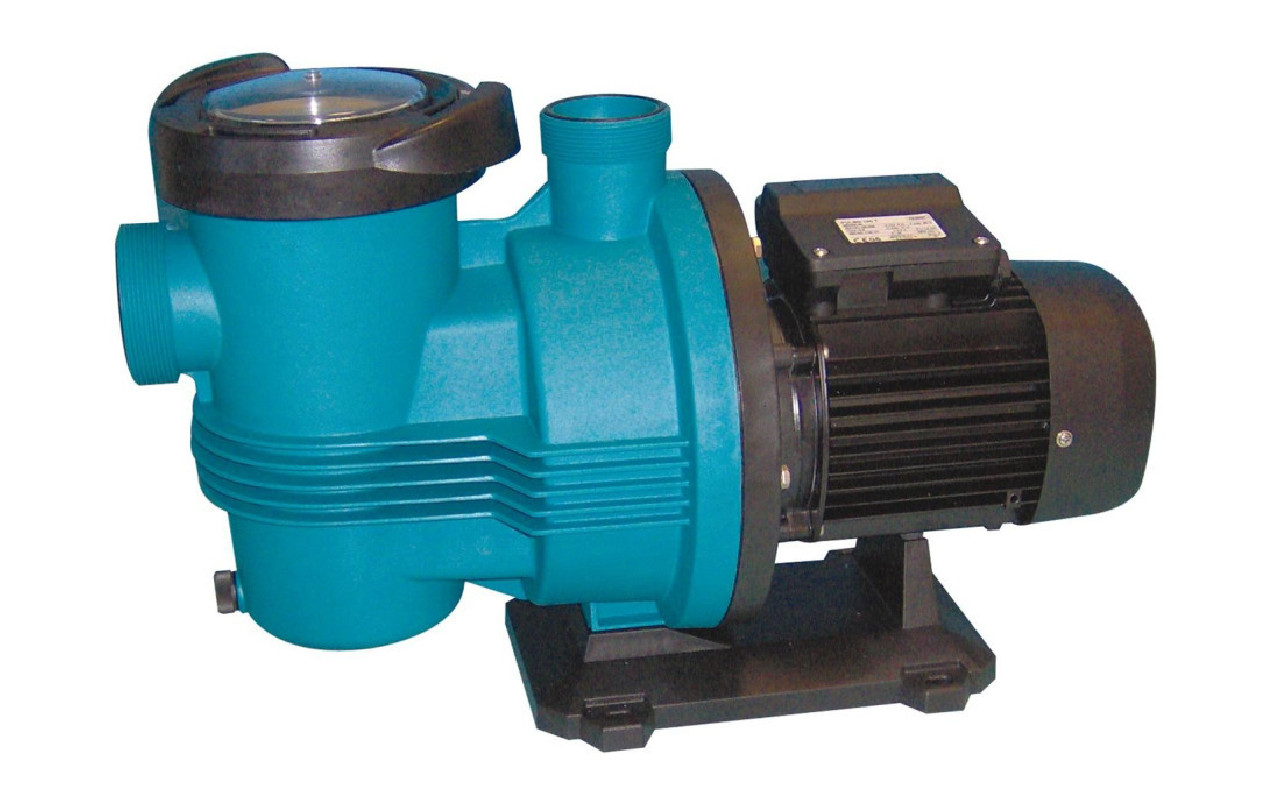

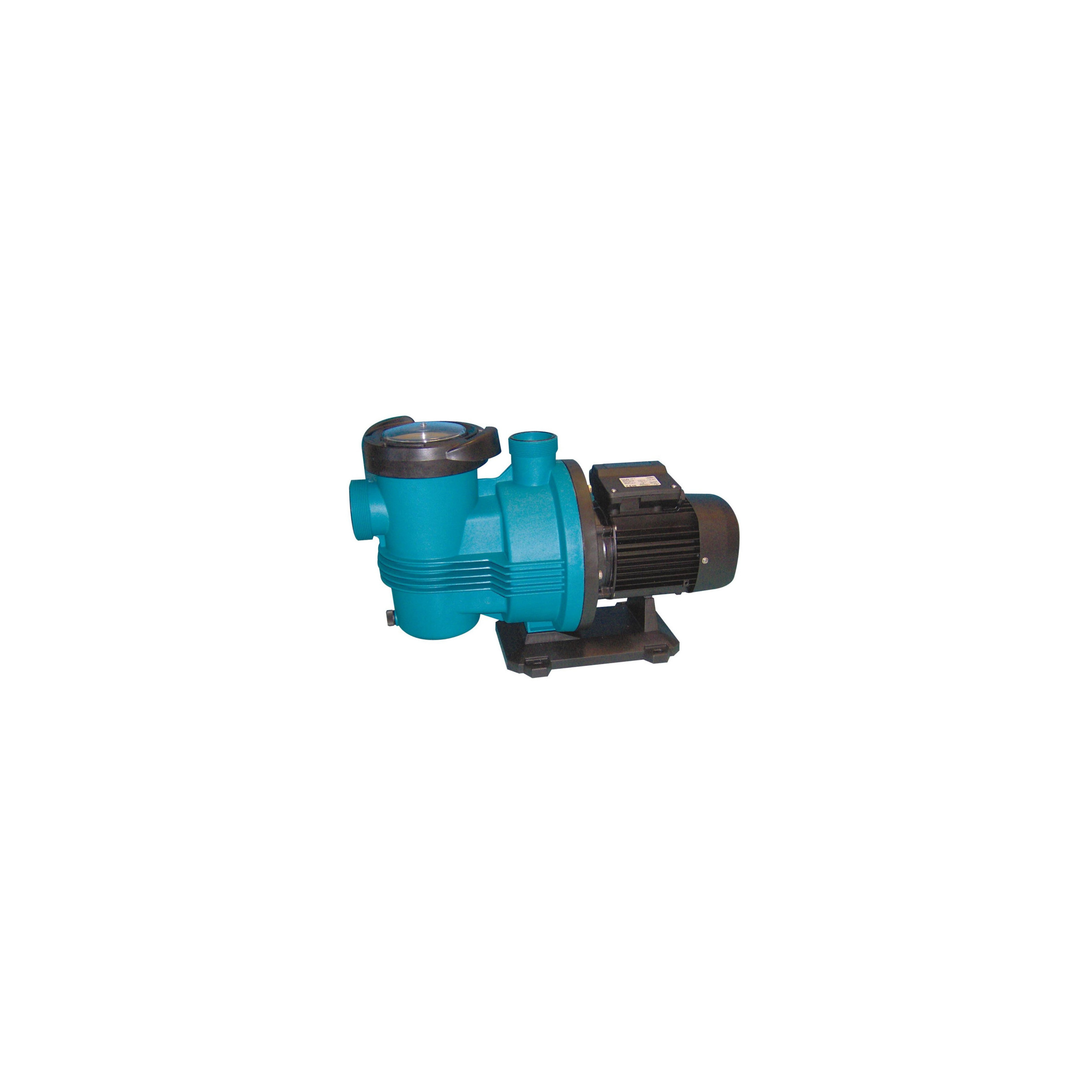

PULSO 1 hp Triphase 18m3/h filter pump

Composition of the package

• 1 Aqualuxpump
• 1 union 63 to be glued (suction)
• 1 union 50 to be glued (discharge)
• 1 pre-filter basket
• 1 cover + seal

Technical specifications

• Centrifugal type, continuous operation 24 hours a day
• Single-phase power 0.6 to 3 hp
• Three-phase power 0.75 to 3 hp
• Class F (140°) insulated motor; IP55 protection
• Glass-filled Noryl turbine
• Graphite and alumina mechanical seal
• Input/output connections
• suction 63, discharge 50
• Drainage yes on prefilter
• Power supply 230V / 380V - 50Hz
• Type of closure including screw-on lid (ring)
• Material hub axle stainless steel AISI 420 1/4 turn
• Pre-filter volume 1.6 litres
• 3 year warranty

The advantages of the PULSO pumps from AQUALUX:

• High performance: IE2 motor (high efficiency, low consumption) from 0.75 kW tri. The ratios between the power in HP and the hydraulic flow are among the best on the market.
  Suction ø 63 mm limiting the speed and improving the efficiency while reducing the noise.
  Sound power limitation due to vibration dampers on the base.
• Robust: Noryl turbine loaded with fibreglass. Mechanical seal in graphite and alumina.
  Motor shaft in AISI 420 stainless steel.
  Class F (140°) motor insulation.
  Pump body injected in
  glass-filled polypropylene.
  IP55.
• Practical: Electrical connection facilitated by the width of the terminal box.
  Removable foot with integrated fixing brackets.
  Large capacity 1.6L pre-filter.
  Basket guide groove in the pre-filter to prevent damage to the moving parts due to heating.
  Opening/closing of the lid in ¼ of a turn facilitated by the presence of "2 ergonomic ears" (up to 1.5 hp).
  Drain plug on the pre-filter.
