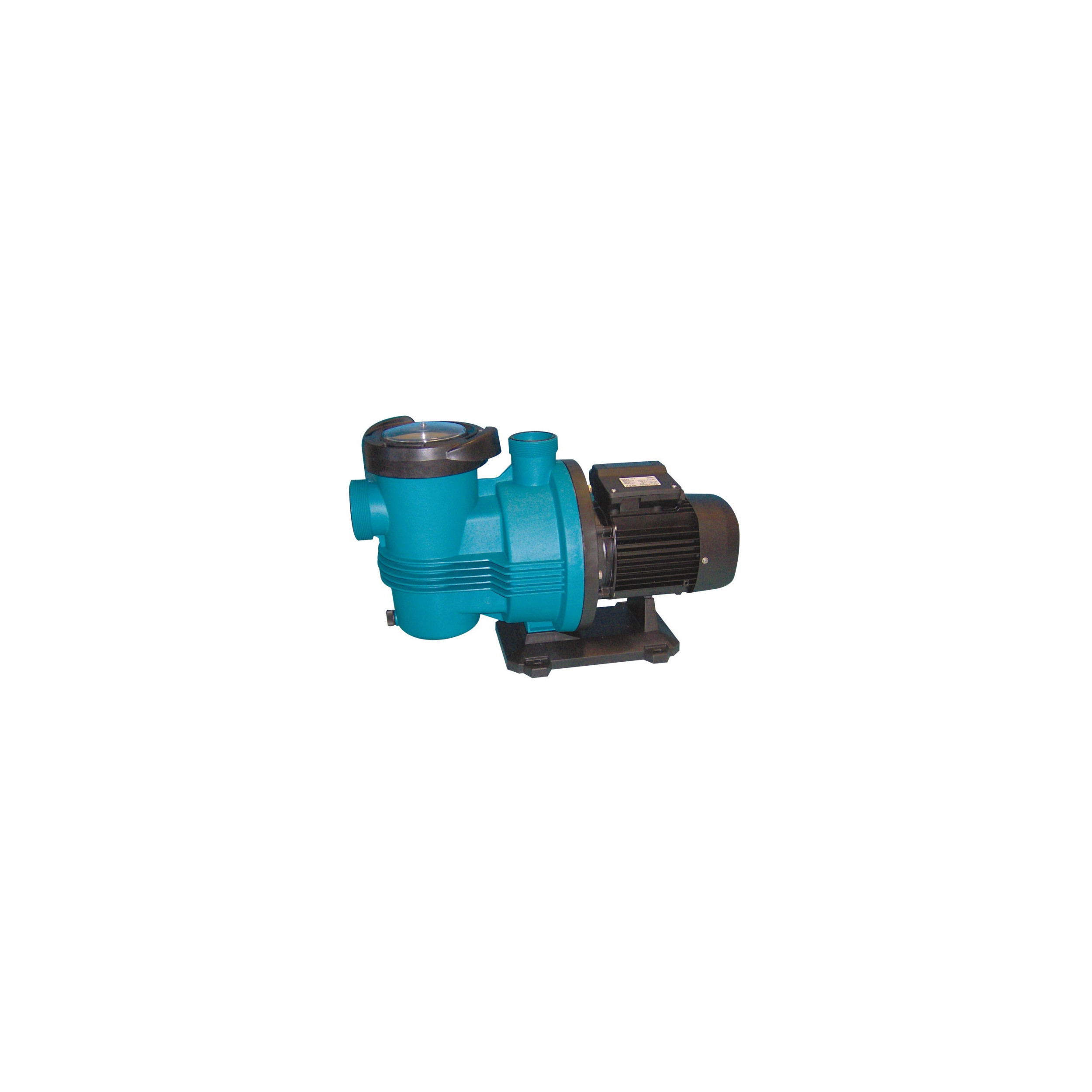

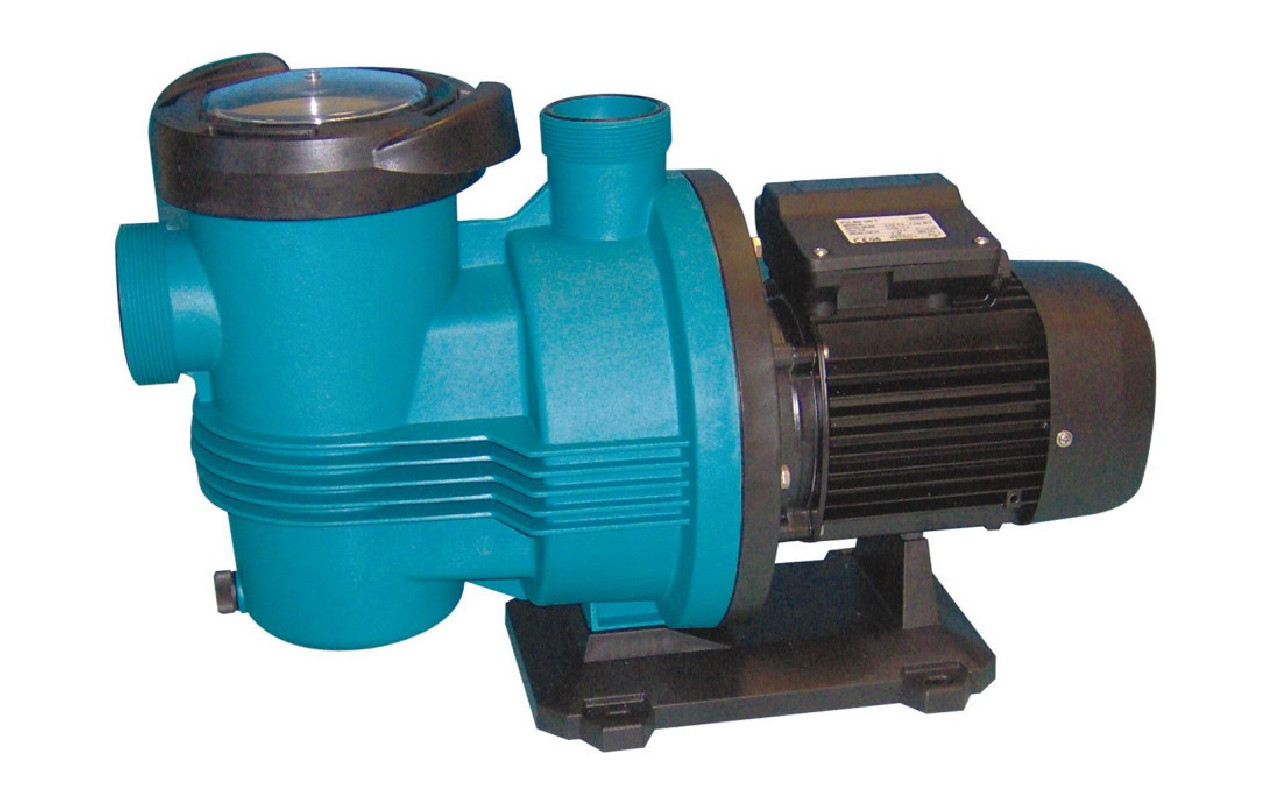

PULSO filter pump 3 hp Single-phase 38 m3 per hour

Package Contents

• 1 Aqualux pump
• 1 union fitting 63 to glue (suction)
• 1 union fitting 63 to glue (discharge)
• 1 pre-filter basket
• 1 lid + seal
• 1 lid bar models from 2 hp

Technical Specifications

• Centrifugal type continuous operation 24/24
• Single-phase power 0.6 to 3 hp
• Three-phase power 0.75 to 3 hp
• Motor insulation class F (140°); protection IP55
• Noryl impeller loaded with fiberglass
• Mechanical seal graphite and alumina
• Inlet/outlet connections
• suction 63, discharge 63
• Drain yes on pre-filter
• Power supply 230V / 380V - 50Hz
• Lid closure type screw (lid bar provided).
• Motor shaft material stainless steel AISI 420 1/4 turn
• Pre-filter volume 1.6 liters
• 3-year warranty

The advantages of PULSO Pumps from AQUALUX:

• Efficient: IE2 motor (high efficiency low consumption) from 0.75 kW tri. The ratios between the power in hp and the hydraulic flow are among the best on the market.
  Suction ø 63 mm limiting speed and improving efficiency while reducing noise.
  Limitation of acoustic power thanks to vibration dampers placed on the base.
• Robust: Noryl impeller loaded with fiberglass. Mechanical seal in graphite and alumina.
  Motor shaft in stainless steel AISI 420.
  Motor insulation class F (140°).
  Pump body injected in
  polypropylene loaded with fiberglass.
  IP55.

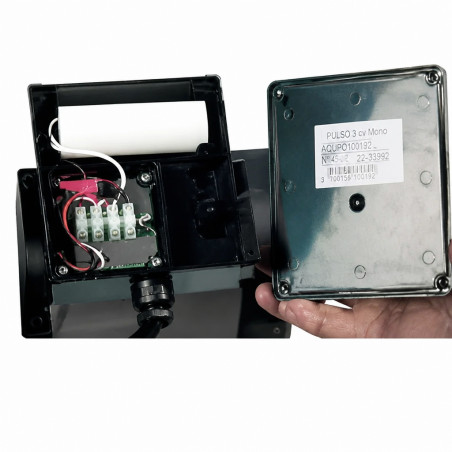

• Practical: Electrical connection facilitated by the width of the terminal box.
  Removable foot integrating fixing brackets.
  Large capacity pre-filter of 1.6L.
  Guide groove of the basket in the pre-filter avoiding the alteration of moving parts by heating.
  Opening/Closing of the lid in ¼ turn facilitated by the presence of "2 ergonomic ears" (up to 1.5 hp).
  Drain plug on the pre-filter.
