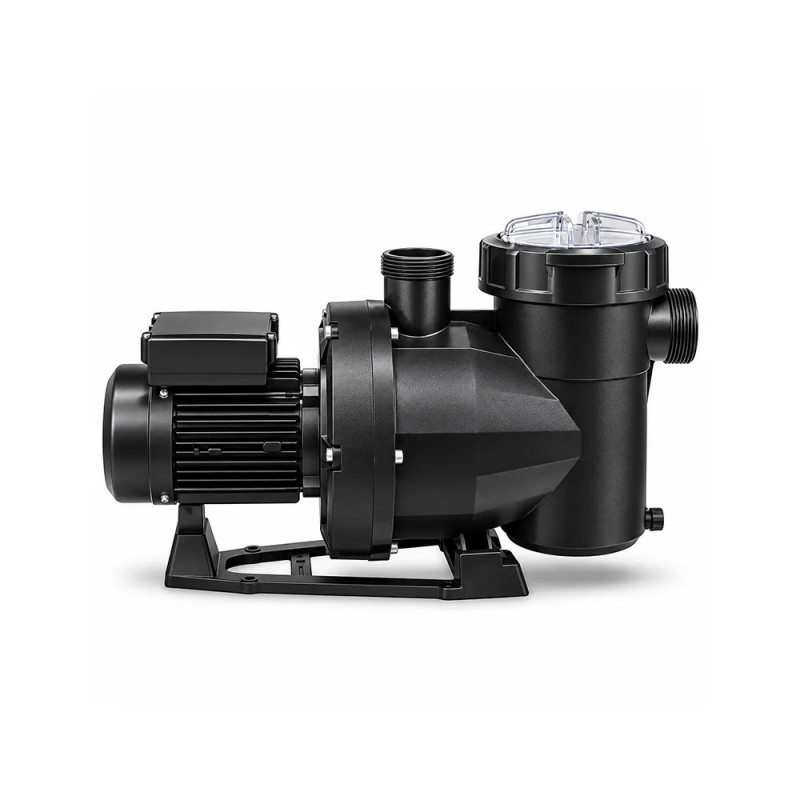

Victoria Plus Silent pool filter pump 1 HP self-priming

ASTRAL VICTORIA PLUS PUMP 1HP SINGLE-PHASE

The AstralPool Victoria Plus Silent 1 HP filtration pump, supplier reference 65562, is a single-phase self-priming pump designed for residential pools up to 80 m³. It offers a flow rate of 16 m³/h and stands out for its reduced noise level, ranging from 61 to 70 dB.

Equipped with a 1 HP motor and an integrated pre-filter, this pump is compatible with chlorine and salt electrolysis treatments. Its design allows for the replacement of old Victoria Plus pumps, while ensuring high resistance to heat and humidity thanks to its IP55 motor protection.

Technical specifications

• Model: AstralPool Victoria Plus Silent 100M
• Power: 1 HP (single-phase 230V)
• Flow rate: 16 m³/h
• Noise level: 61 to 70 dB
• Motor protection: IP55
• Rotation speed: 2810 rpm
• Indicated head height: 10 m
• Maximum discharge height: 17 m
• Weight: 14 kg
• Packaging volume: 0.07 m³
• Body material: Thermoplastic material
• Connection: 2-inch GAS type fittings
• Treatment compatibility: Compatible with salt electrolysis
• Replacement compatibility: Compatible with previous Victoria Plus installations
• Warranty: 2 years
• Manufacturer: Astral Piscine
• Manufacturer reference: 65562
• Internal reference: ASTPO65562

Instructions for use

• Install on a pool filtration system according to the manufacturer's instructions
• Check the flow direction, pipe sizing, priming, connection sealing, and electrical protection
• Provide a single-phase 230 V power supply and appropriate motor protection
• Do not operate the pump dry

Observations

• Compatible with old Victoria Plus installations

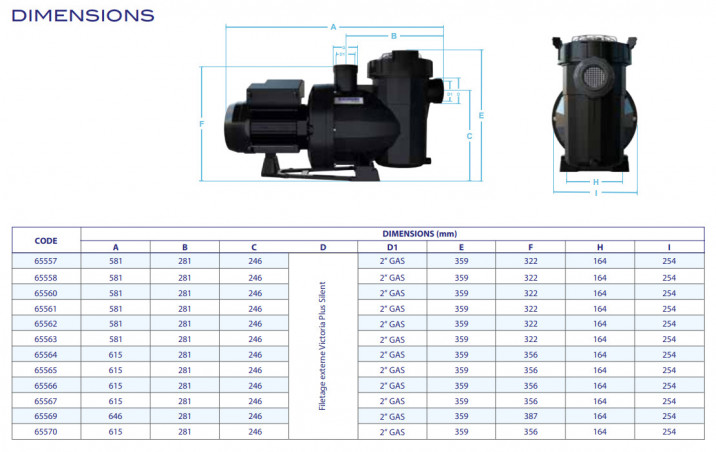

• The supports, connection dimensions, and detailed hydraulic curves must be checked in the corresponding manual or technical catalog
