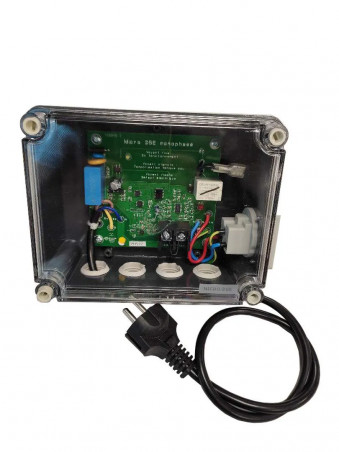

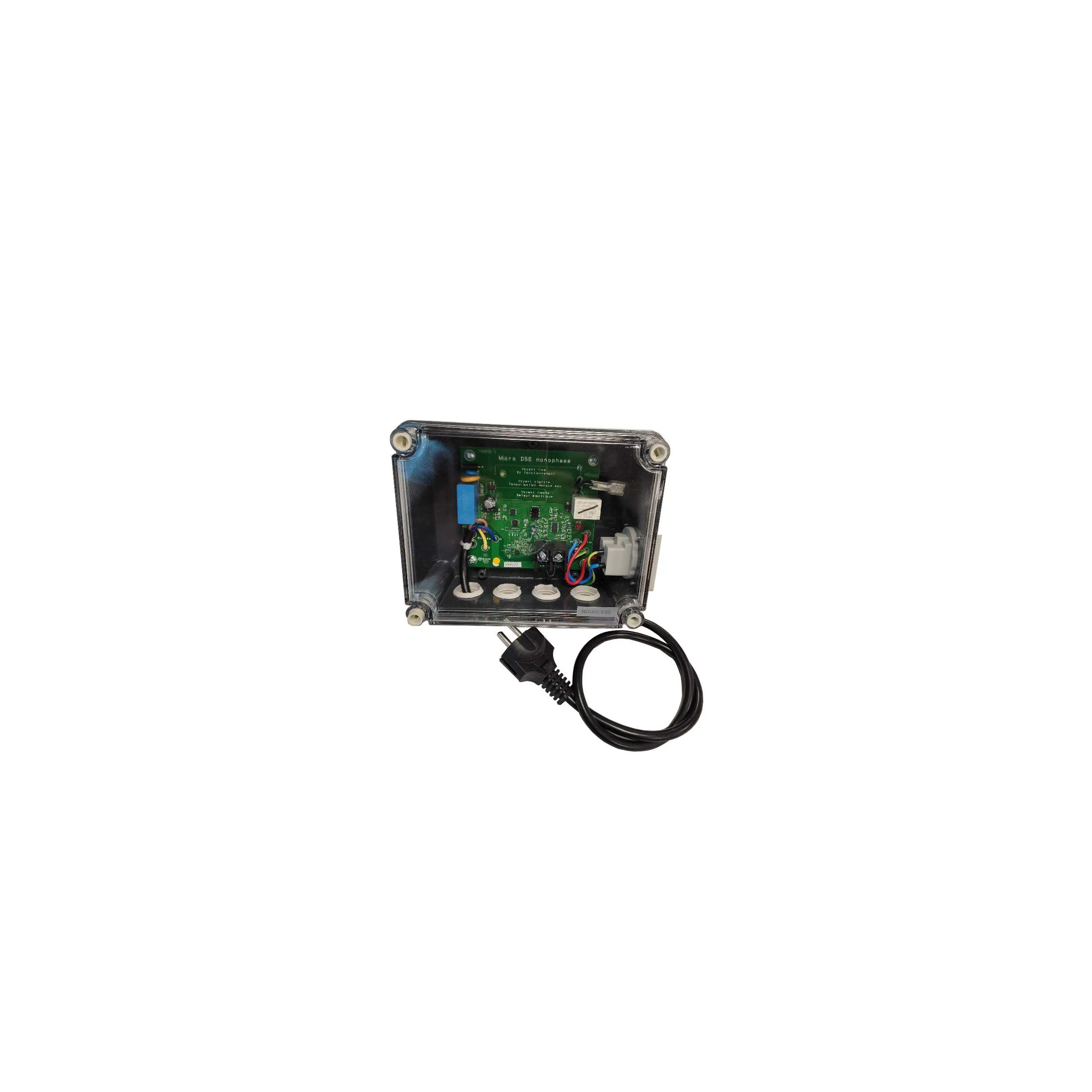

MICRO DSE single-phase 230V, 6.5A water failure protection box.

MICRO DSE single-phase 230V, 6.5A water failure protection box.

FUNCTION:

The MICRO DSE is a low-water protection box that operates without electrodes thanks to a patented electrical monitoring device. The MICRO DSE is suitable for all Mono 230 V submersible pumps up to 6.5 A. An electronic control prevents operation above 6.5 A. The MICRO DSE is very easy to install thanks to its self-adjustment and does not require any accessories.

BENEFITS:

The MICRO DSE operates without electrodes or sensors according to a patented principle. It automates the operation of the installation by guaranteeing total protection of the submerged pump against lack of water. The MICRO DSE does not require any manual adjustment, it carries out a self-adjustment at the first start-up. The microprocessor integrates the different pumping times and optimizes the downtime due to lack of water. It also includes an anti-hammer function that prevents the submerged pump from restarting within 10 seconds of stopping. In case of prolonged stoppage of the system, the MICRO DSE starts the pump every 24 hours for 2 seconds.

CHARACTERISTICS:

IP 44 equivalent waterproof box with cord and standardised plug, and transparent cover equipped with waterproof entries. Power supply : 230 V / 50 Hz. Output current: min. 2 A - max. 6.5 A. Equipped with a standardized female plug for the connection of the pump's plug. On/off switch. Remote control terminal block for connection of a pressure switch or a float. Yellow light on the card that displays the status of the installation: - Fixed: in operation. - Flashing: lack of water, time delay. - Flashes: current higher than 6.5 A or pump disconnected. The MICRO DSE is not compatible with the TURBOSOM SRM4/100and PULSAR 30/50M pumps Dimensions (mm): 185 x 85 x 140. Weight : 0,6 kg. Indoor use. Temperature range : + 5 to 40 °C. Code : 471511

It is highly recommended to protect the MICRO DSE cabinet against transient overvoltages by installing the PS3 surge protector

Ref: 471512
