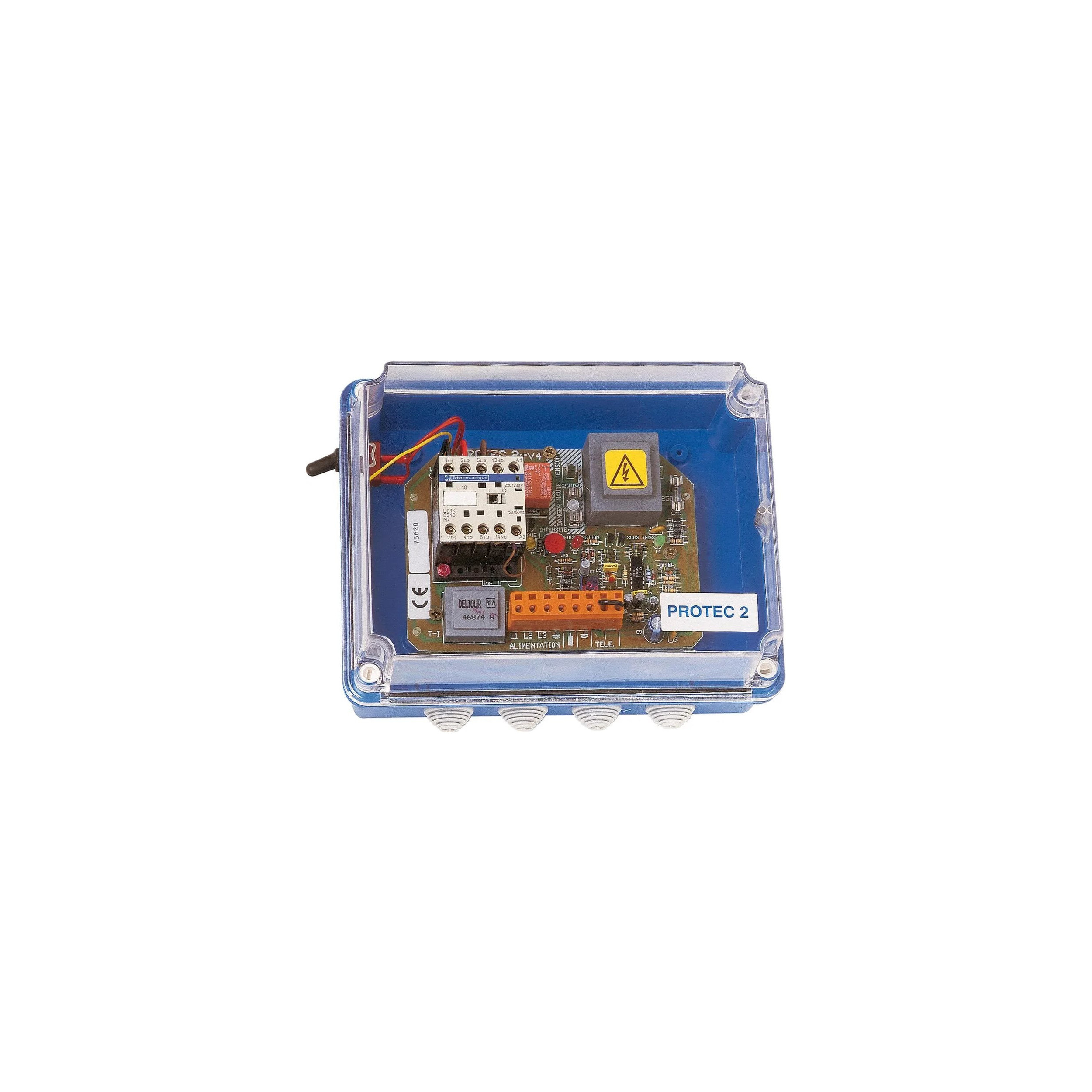

Motor protection and low water protection box, PROTECT 2.

Motor protection and water shortage box, PROTECT 2, JETLY reference 474000.

Control and protection box for PROTEC-2 pump - Protection against lack of water and overcurrent - Bi-tension supply: 230V/400V - Max. current: 10 A - Manual restart.

Control and electrical protection box for a surface, lifting or submerged pump from 1 to 10 A. Associated with 1 float, 1 contactor or 1 electrode, the PROTECT 2 monitors and controls your installation, it informs you permanently of its state by simple diode display.

Protects the pump motor by instantaneous stop in case of lack of water, against overcurrent, blockage or lack of phase in three-phase from a simple adjustment by potentiometer. Terminals for connection of a level switch or an inverted contactor or an electrode for the immediate stop of the submerged or surface pump in case of lack of water

Manual restart.

Terminals for connection of a pressure switch or a level switch to control the surface or submersible pump (or even the lifting pump, but it is advisable to use the PROTECT 2 Lifting (code 474002), which is more suitable for the lifting function. The PROTECT 2 version with a forced start pushbutton (code JETLY 471550) for use with a contactor that is reversed by controlling the minimum pressure.

The PROTECT 2 is connected to a power supply equipped with a two-pole or three-pole protection and disconnection device, depending on the case, in accordance with the EN 60204 standard.

Features:
Height (mm) : 180
Width (mm): 120
Length (mm) : 233
Weight : 1Kg
