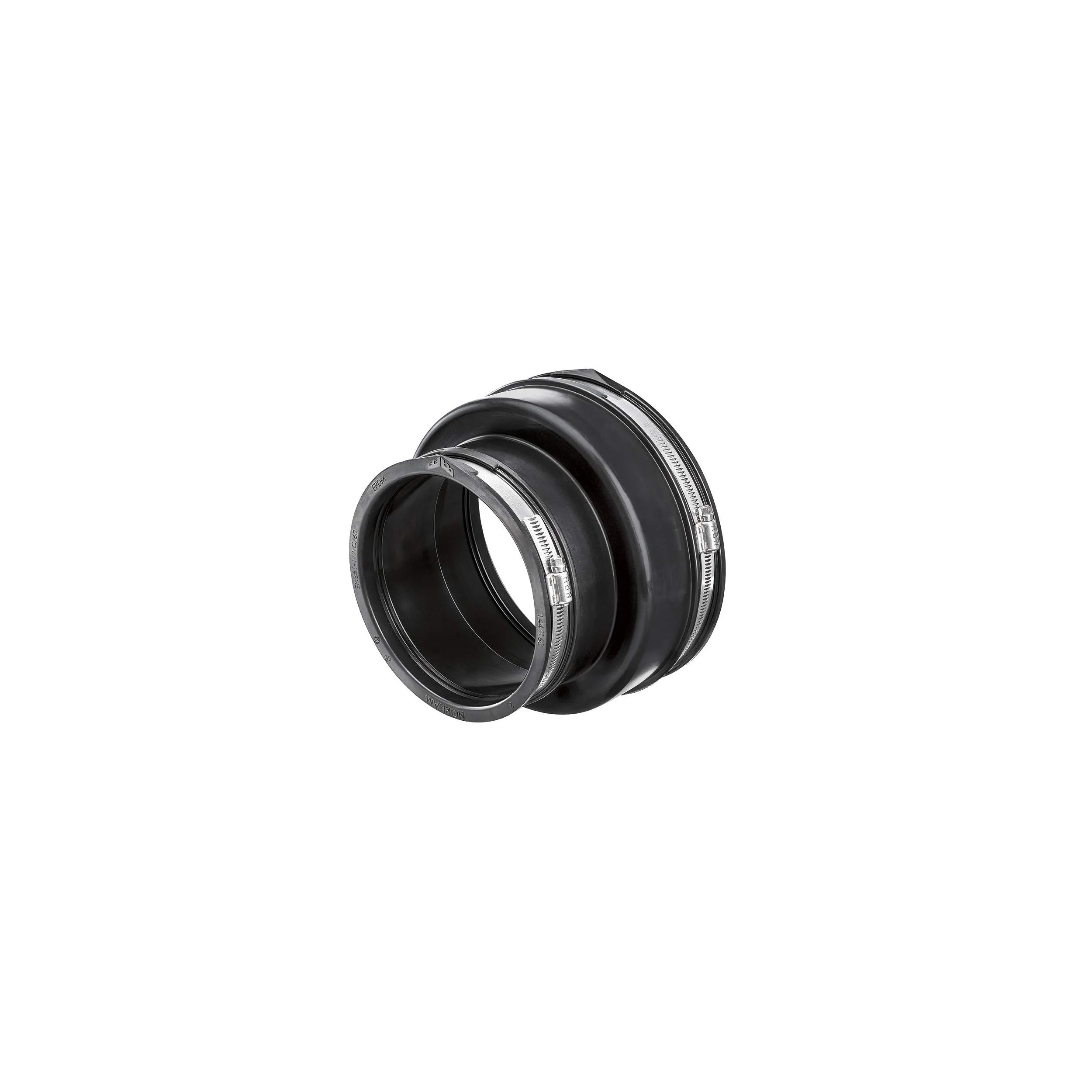

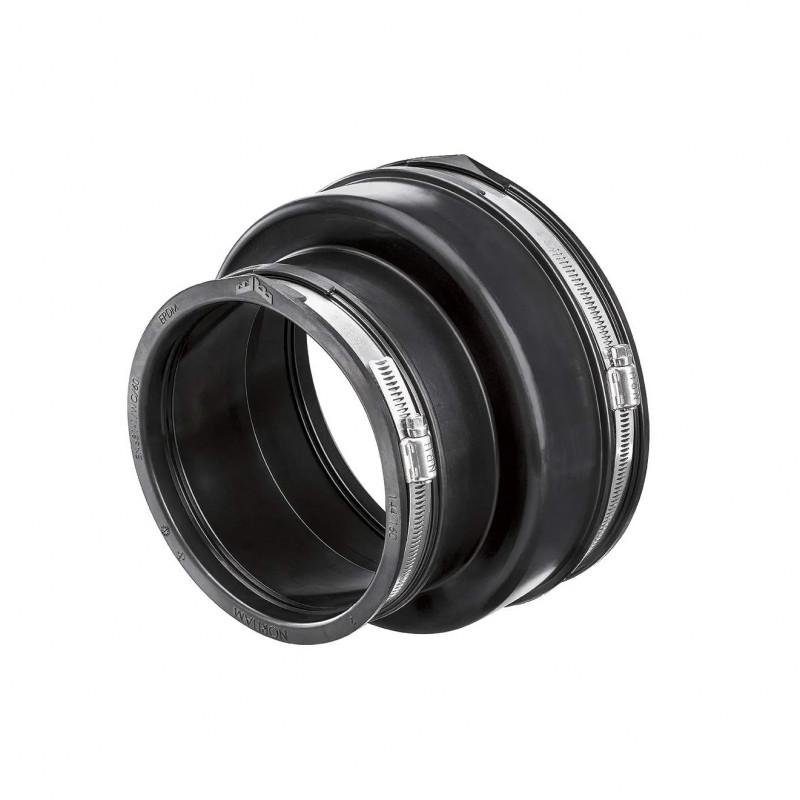

FLEXSEAL PLUS AC straight fitting 0.6 Bar, 100 115/110 125 mm

FLEXSEAL PLUS straight fitting AC 0.6 Bar, 100 115/110 125 mm NORHAM reference AC115-125

- Product type: multi-material repair fitting.

- Description:

FLEXSEAL PLUS straight fitting AC 0.6 Bar, 100 115/110 125 mm NORHAM.

The FLEX-SEAL Plus® AC multi-material adaptation fittings allow the connection and repair of pipes made of similar or different materials with a wide variation of outer diameters. They are designed for aerial or buried networks, without risk of ground shear, inside and outside buildings.

Multi-material connection: PVC, PP, smooth or corrugated PEHD, GRP, cast iron, fiber cement, steel, stoneware, concrete.
Pressure resistance: up to 0.6 bar.
Test pressure: 0.6 bar.
Temperature resistance: -40 °C to +140 °C.
Angular deviation: from 3.0° to 7.5° depending on the DN.
Fire resistance: class E (NF-EN 13501-1).

Sleeve: in EPDM 60 DIDC grade WC compliant with standard NF-EN 681-1.
Fixing clamps: in stainless steel AISI 304, with a minimum hardness corresponding to class +C850, in accordance with standard NF-EN 10088-2.

CLIP-IN: profiled system in the rubber for holding the hose clamps for better handling and installation comfort.
MEDIUM-TORQUE: optimal tightening system for guaranteed pressure resistance.

Width: 120 mm.

Usage range, minimum diameter: 100 - 115.

Usage range, maximum diameter: 110 - 125.

- Supplier: NORHAM.

- Reference: AC115-125.
