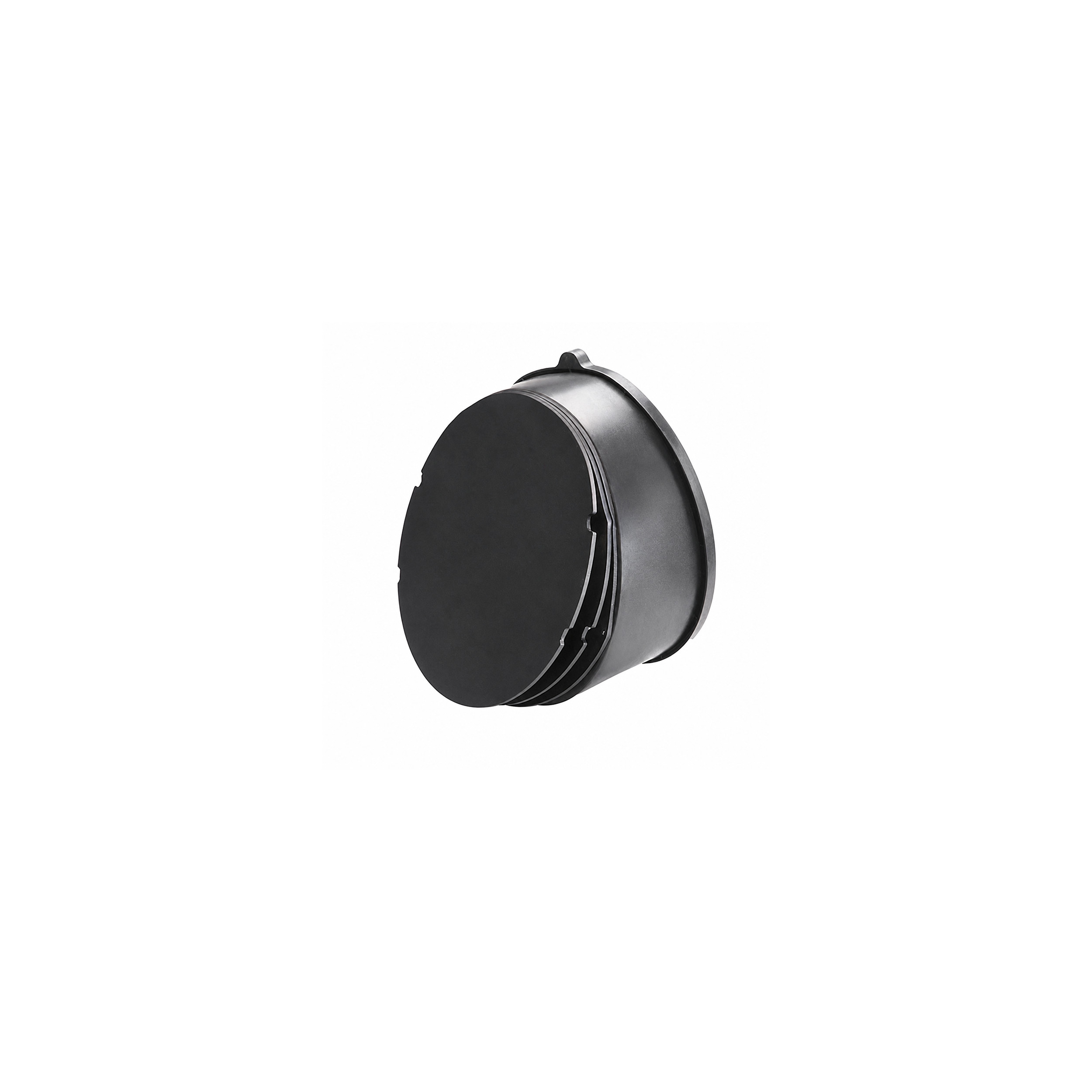

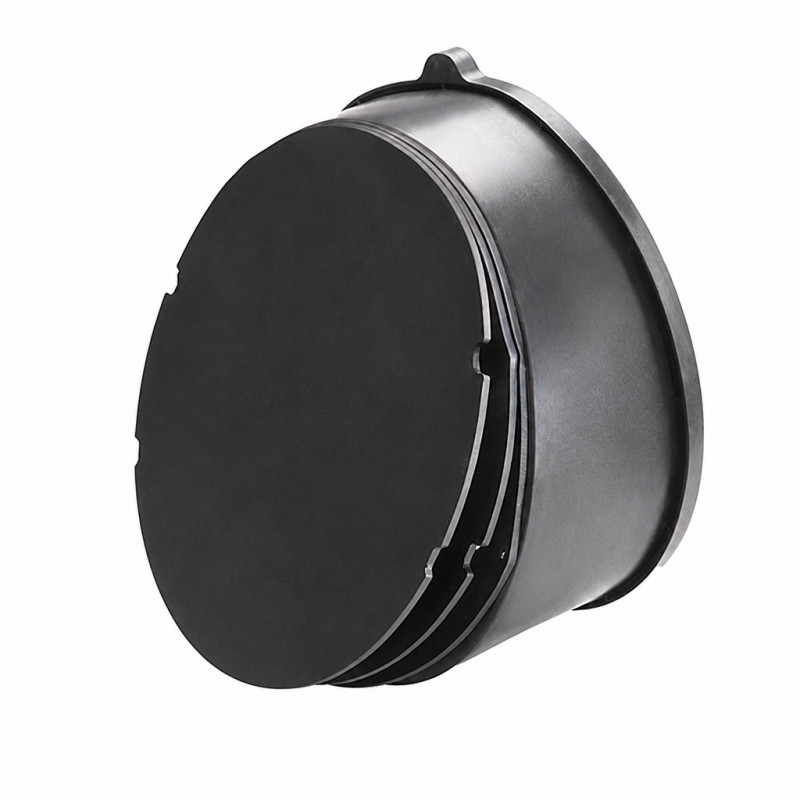

Norham STINK-SHIELD vertical odor check valve DN 150 mm

STINK-SHIELD VERTICAL odor check valve diameter 150mm - Norham

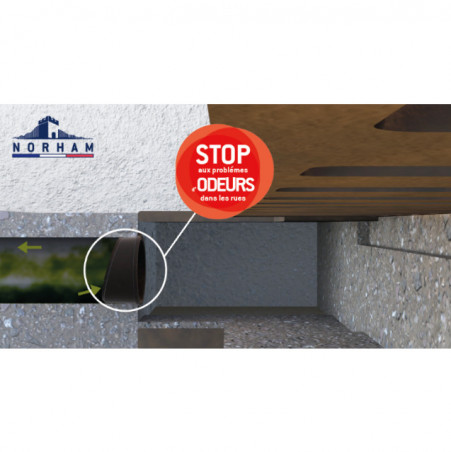

The STINK-SHIELD® VERTICAL odor check valve is an innovative solution to prevent odor backflow in rainwater networks. Designed by Norham, it installs easily and quickly without requiring civil engineering work. This device is particularly effective for city centers where odors from street drains can be problematic.

Tested and validated by the CSTB, the STINK-SHIELD® VERTICAL valve is capable of stopping up to 96% of odors. It is adaptable to all configurations of inspection chambers and drains, and is available for pipes ranging from DN 150 to DN 400. The SHIELD150V model is specifically designed for nominal diameters of 150 mm.

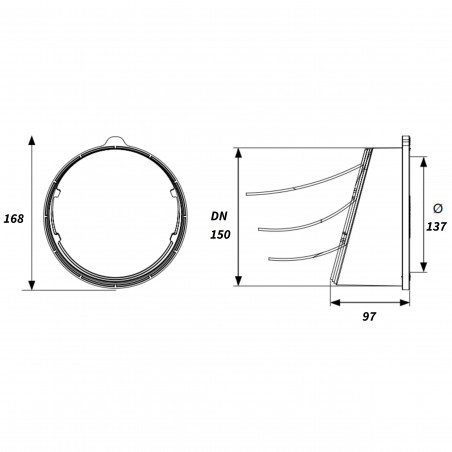

Technical specifications

• Reference: SHIELD150V
• DN: 150
• Usage range Ø int. PVC: 148.5-151.5 mm
• Width: 97 mm
• Length: 97 mm
• Height: 168 mm
• Compatible with DN 150 pipes
• Manufacturer: Norham
• Internal reference: NORCLSHIELD150V

Observations

• Installation without civil engineering required

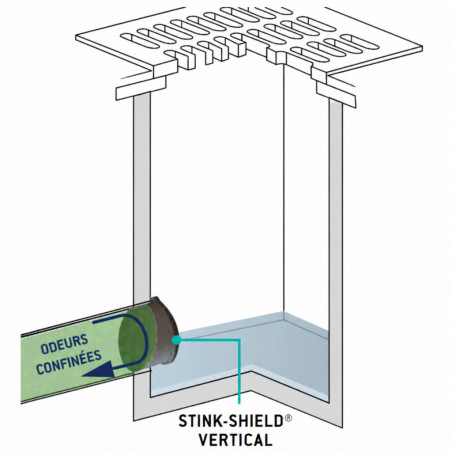

• Adaptable to all configurations of inspection chambers and drains
• Stops 96% of odors according to CSTB tests
• Available for DN 150 to DN 400, other custom DN on request

Note: All references are delivered with a removable ring or compensating adhesive strips to fit the internal diameters of different pipes. An expansion clamp is also provided to ensure the valve is held inside the pipe.
