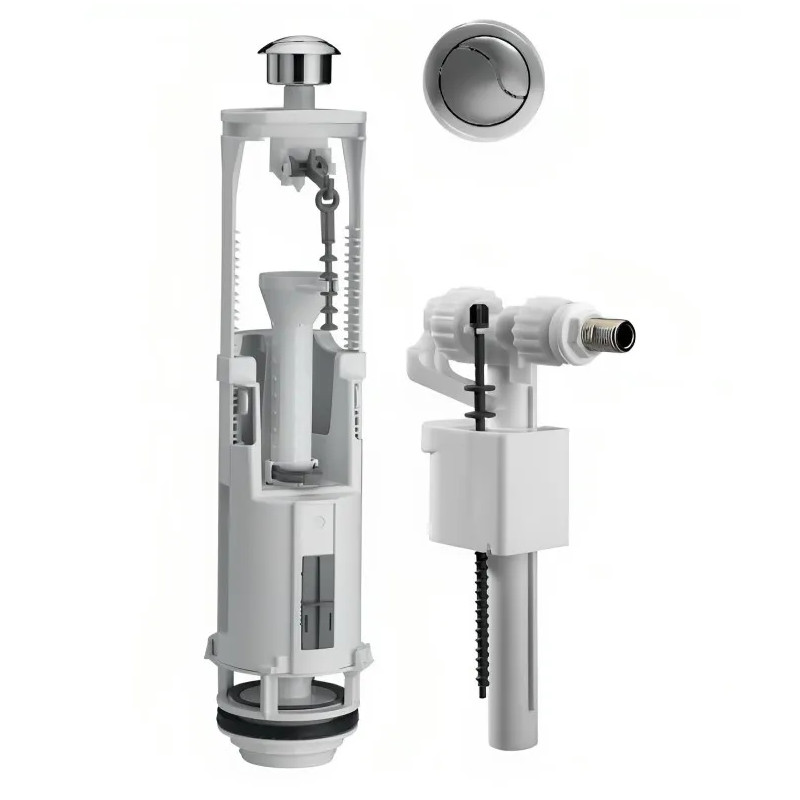

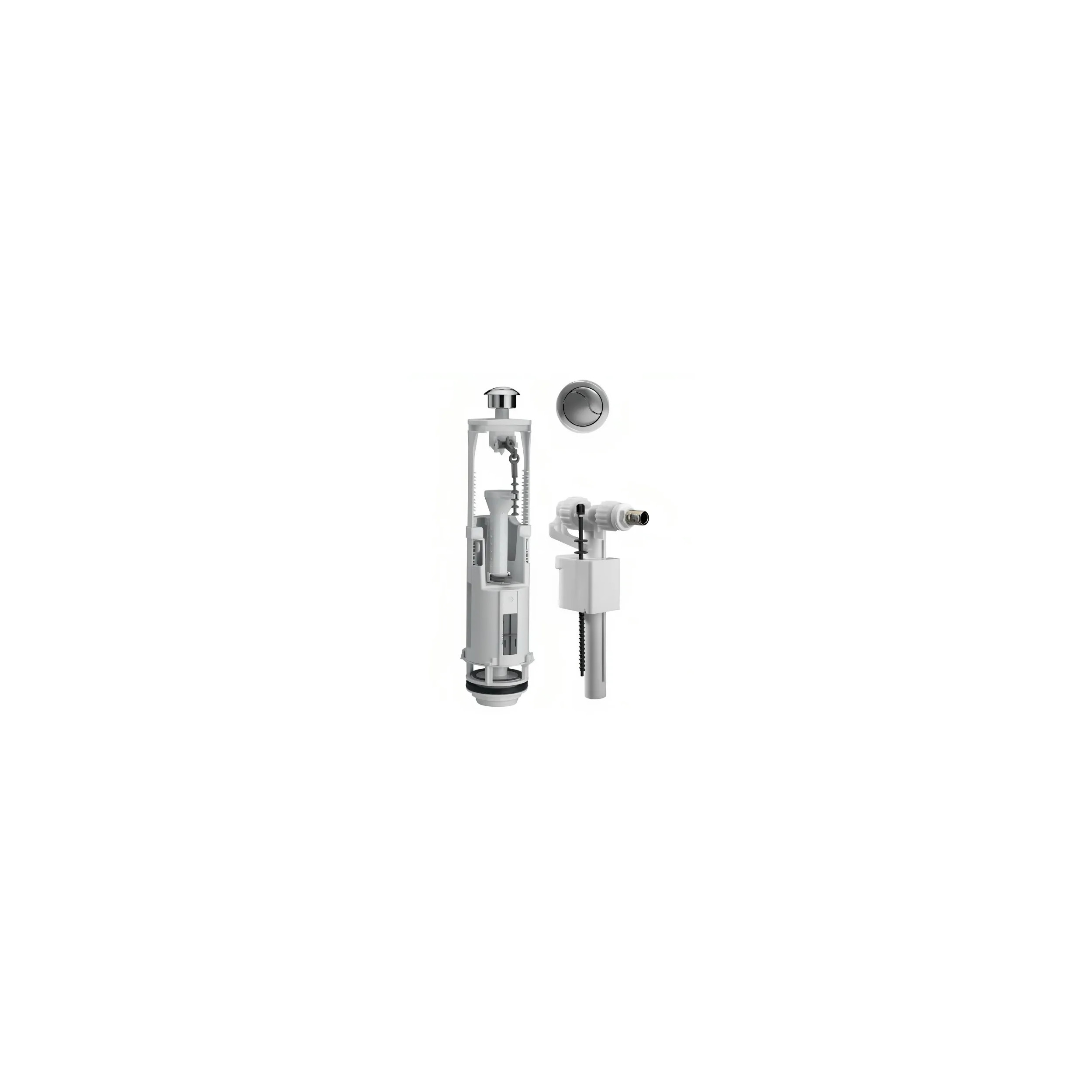

Complete OPTIMA S dual flush mechanism with float 95L
€41.78
Tax Included
(34.82 €HT + Ecotaxe €0.02HT)
Référence Siamp : 37940010
Emplacement magasin : A4-G-032
Complete OPTIMA S dual flush toilet flush mechanism with 95L float reference 37940010.
Safety guarantees
Delivery policy
Returns policy
Utiles avec ce produit :
Complete OPTIMA S dual flush toilet flush mechanism with 95L float reference 37940010.
This flush mechanism is installed on SIAMP drains for renovating old mechanisms or for new installations if the cistern is removed.DESCRIPTION:
- Telescopic overflow: manually adjustable without cutting
- Height-adjustable bracket in 10 mm increments, allows the cistern lid to be held
- Dual flush push button with or without rosette
- Actuation force less than 20N
- Button offset tolerance +/- 15 mm
- Adjustable small flush and residual water level
- Powerful flush flow rate (3.5 l/s)
- Drain: in ABS, very robust
- Flap: in NR/EPDM ensures perfect sealing
- Drain seal: in molded SBS elastomer, its elasticity and shape enhance sealing at the bottom of the cistern
- Bowl seal: in foam, compensates for irregularities in the toilet bowl
Water-saving dual flush compact mechanism certified NF, model with bracket allowing the cistern lid to be fixed with significant offset possible, adjustable small flush and residual water level, adjustable telescopic overflow without cutting, self-adjusting button and chrome cup.
Adjustable height between 282 and 432 mm, lid hole diameter between 16 and 50 mm, evacuation hole diameter between 58 and 72 mm.
Delivered complete with bowl/cistern sealing gasket and cistern fixing screws
Data sheet
- Width (cm):
- 45
- Main color :
- White
- Weight (kg) :
- 0.5
- Packaging:
- 1
- Main materials :
- ABS
Brass
Foam
Thermoplastic
elastomer - Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3247230040544
- EAN-13
- 3247230040544
- Location
- A4-G-032
- Reference to display
- SIAME37950110
- Supplier reference
- 37940010
