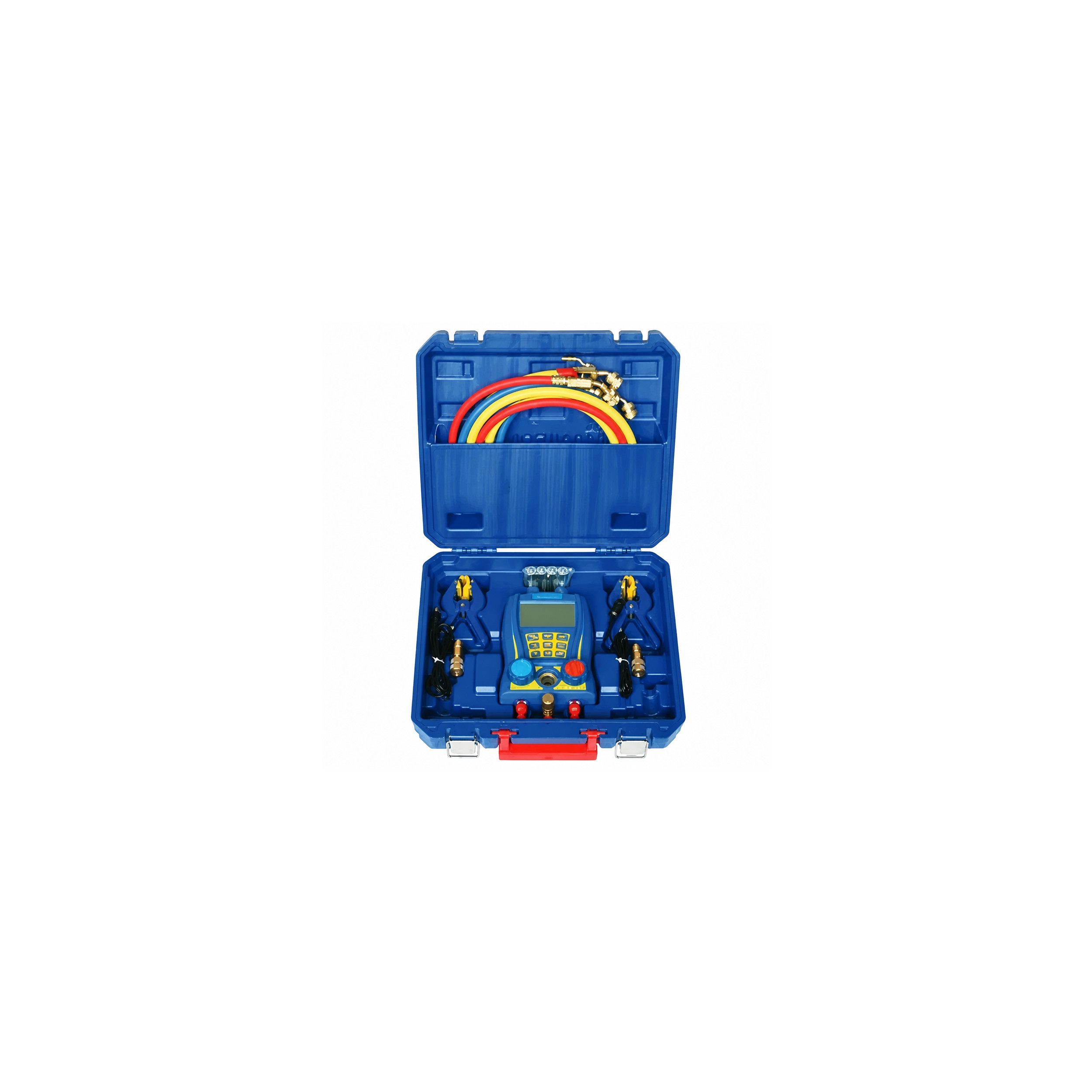

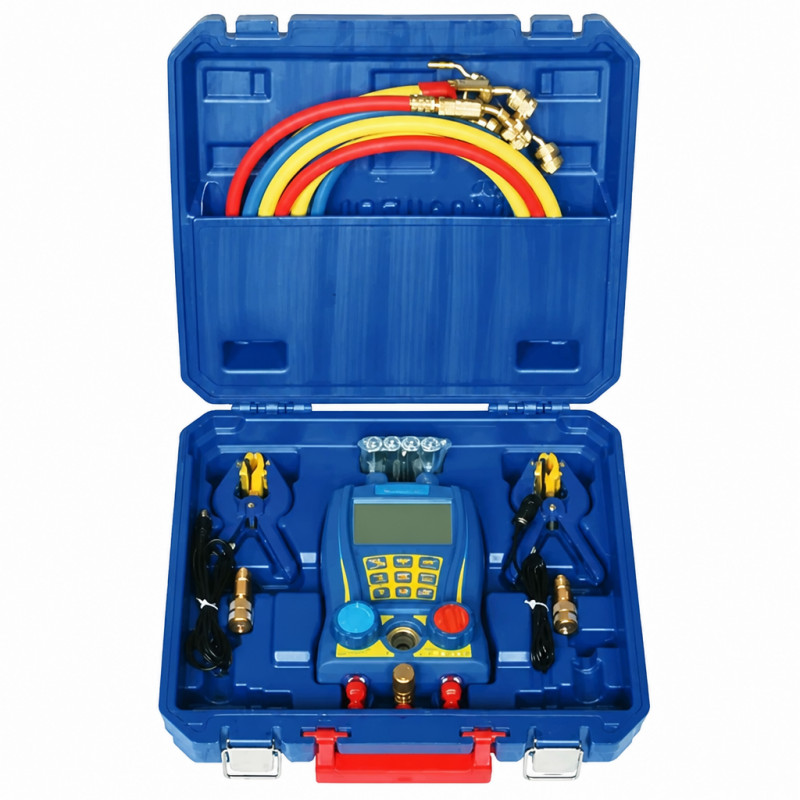

2-way electronic bypass DSZH with case and accessories

2-way electronic BY PASS, in case, with hoses and clamps

The 2-way electronic BY PASS kit, reference DSZH COR15077, is designed for air conditioning applications. It is stored in a robust plastic case, and includes three 1500 mm hoses with 1/4" and 5/16" fittings as well as two swivel fittings. A temperature probe is also included.

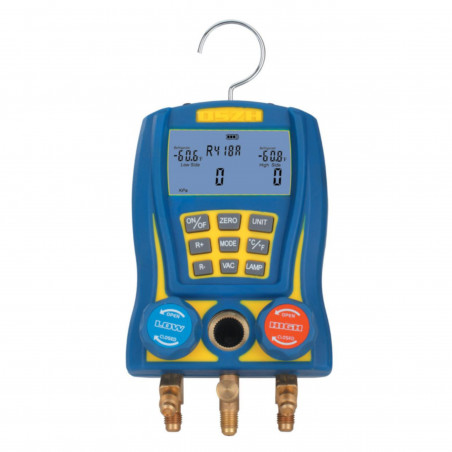

The box is made of shockproof ABS and features a large LCD screen. It can store data for 60 refrigerants in memory. Temperature and pressure measurements can be displayed in Bar, Psi, Mpa, and Kg/cm2. The product is compatible with R407, R410, and R32 refrigerants, and also allows for the reading of negative pressures for drawing or vacuum.

The thermocouple temperature probe measures the current temperature and automatically calculates the subcooling temperature. An additional thermocouple clamp connection allows for reading the current temperature and calculating the superheat.

Technical characteristics

• Packaging: 1
• Warranty: 2 years
• Height (cm): 3
• Width (cm): 1.4
• Origin: made in Europe
• Weight (kg): 6
• Operating temperature: 0° to 50°C
• Autonomy in pressure and temperature reading: 50 hours
• Autonomy in vacuum reading: 4 hours
• Automatic shutdown: 15 min
• Manufacturer: DSZH
• Internal reference: CBMBYCOR15077
