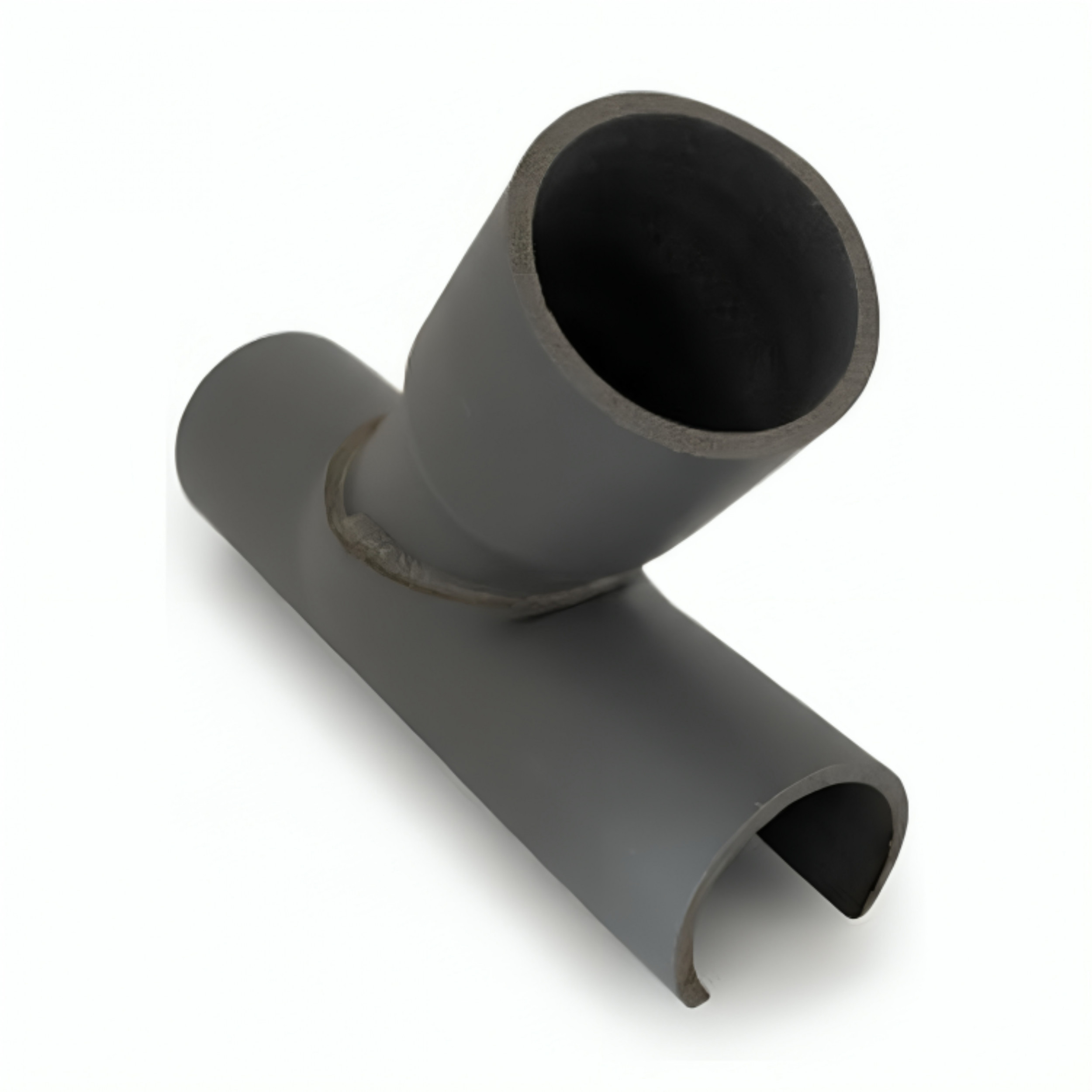

PVC branch saddle 40x40 mm 45 degrees, 15cm long

Handcrafted by cutting, transforming, then assembling and gluing existing materials, our shaped fittings have a more raw and less polished aesthetic than an injected fitting. Their technical quality and resistance are nevertheless tested randomly in our internal laboratory upon production.

The saddle body:

It is made using a standardized PVC Building Tube (NF), cut and trimmed as necessary, to length. This tube has a diameter equivalent to that of the pipeline it will clip onto. The elasticity of the PVC will allow it, during installation, to stretch and then return to its original shape, recovering the play to perfectly fit the support surface.

We intentionally make the body longer than the actual final need, which guarantees you an additional positioning, holding, and gluing surface. However, you can perfectly recut it if necessary.

On some saddles, it may sometimes appear that the diameter of the body is visually smaller than the final diameter, but in reality, this is not the case: indeed, PVC is elastic and naturally contracts during cutting or shaping. Once clipped and in place, the PVC will perfectly regain its initial diameter and fit your pipeline.

The Take-off:

It is also made using a standardized PVC Building Tube (NF) that we thermoform to create a female socket (tulip), allowing you to easily connect your take-off pipe or possibly a male fitting (inspection cap, tee, etc...).

Once positioned hot, the take-off is permanently welded to the body using a specially developed Professional PVC glue that also guarantees watertightness.

During your positioning trials of the saddle before drilling, it may, in some cases, appear to not fully fit the main pipeline. A bit like it is hindered by a roughness. This is completely normal: indeed, the Take-off is sometimes positioned slightly recessed into the body of the saddle, in order to subsequently favor gravitational flows. Once you have made your drilling (preferably a bit wider than the take-off diameter), it will penetrate into the main pipeline and your saddle will thus be perfectly in place.

Installation:

Position the saddle at the intended location and mark the drilling location by passing through the inside of the take-off socket. You can also trace the edges of the saddle to help with repositioning later.

Drill the hole (preferably a bit wider than the initially marked diameter to facilitate subsequent gravitational flow). The dimensions of the saddle body allow for a great margin of maneuver.

Glue the inner part of the body of the saddle with a good PVC GEL glue, then replace the saddle in its final position.
