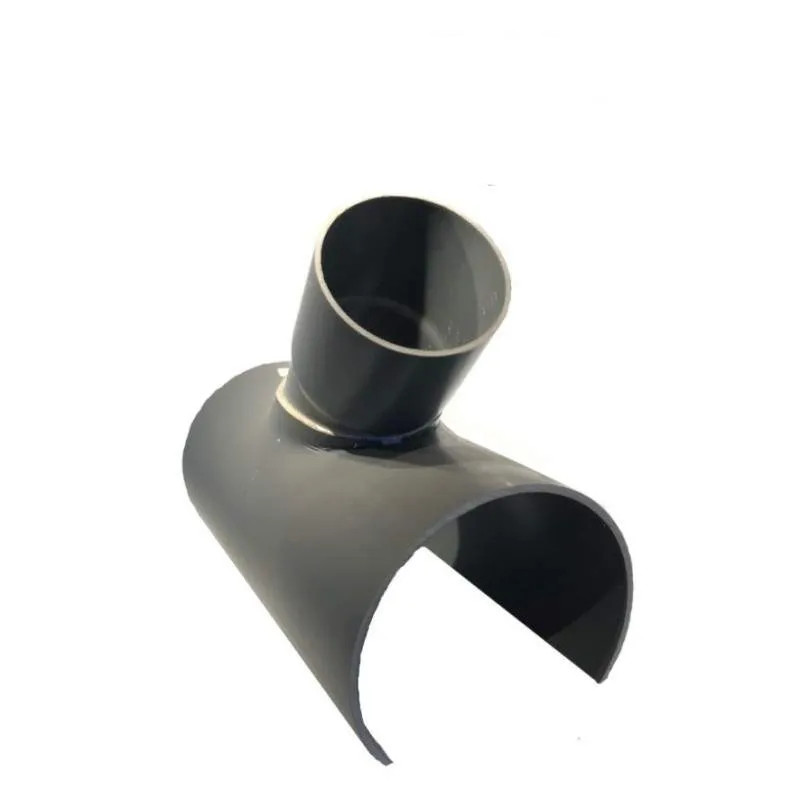

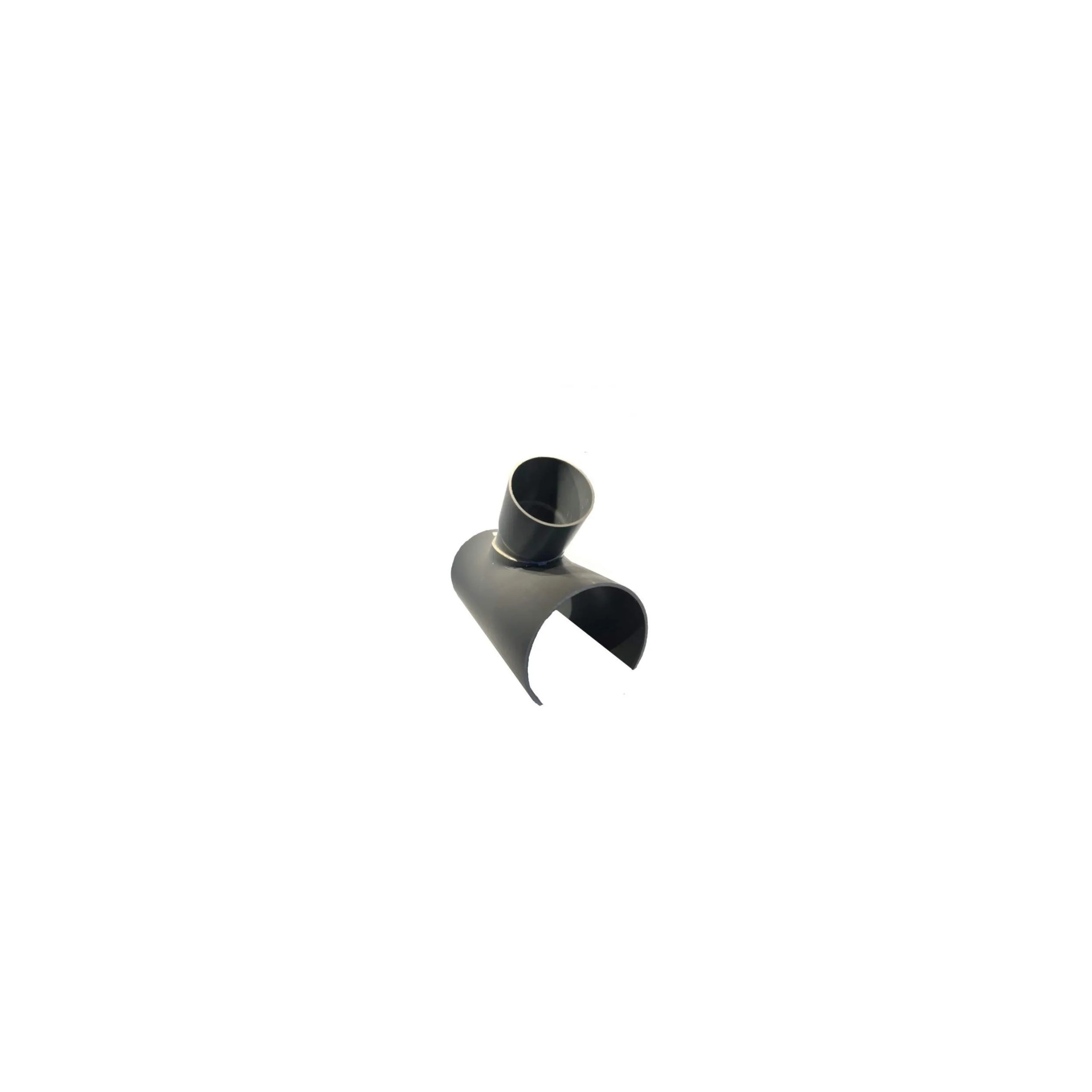

PVC branch saddle 125x125 mm at 45 degrees, 30cm long
€34.56
Tax Included
(28.80 € HT)
Référence ESPINOSA : B221S4125J
Emplacement magasin : B3-D-092
Choose now the branch saddle reference B221S4125J from the brand ESPINOSA.
Safety guarantees
Delivery policy
Returns policy
PVC Branch Saddle 125x125 mm at 45 degrees, 30cm long ESPINOSA reference B221S4125J
Product Type: PVC fitting to glue
Description:
PVC fitting to glue allowing very simple connection of a tube to an existing pipeline.
Saddle body with the same diameter as your main pipeline for better adhesion.
45° tulip-shaped (female) outlet
Principles of a Branch Saddle:
The PVC Branch Saddle is a building fitting allowing easy connection of a drainage tube to a main pipeline without the need to cut, disassemble, or completely modify it.
Very practical in renovation, it allows simple and quick connection of a new element (washbasin, kitchen sink, toilet, etc...) to the main network.
For installation, simply drill the pipeline in place with a hole equal to or slightly larger than the diameter of the tube to be tapped at the desired location, then clip/glue the saddle body by aligning the previously made hole with the tapping. And that's it.
Specificities of Our Shaped Branch Saddles
Manufactured manually by cutting, transforming, then assembling and gluing existing materials, our shaped fittings inevitably have a rougher and less polished aesthetic than an injected fitting. However, their technical quality and resistance are tested randomly at the end of production in our internal laboratory.
The Saddle Body:
It is made using a standardized Building PVC Tube (NF), cut and trimmed as necessary along the length. This tube is of equivalent diameter to the pipeline on which it will clip. The elasticity of the PVC will allow, during installation, to spread and then return to its initial shape by recovering the play to perfectly fit the support surface.
We deliberately make the body longer than the actual final need, which guarantees you an additional positioning, holding, and gluing surface. You can, however, perfectly cut it again if necessary.
On some saddles, it may sometimes seem that the diameter of the body visually appears smaller than the final diameter, but in reality, it is not: indeed, PVC is elastic and naturally contracts during cutting or shaping. Once clipped and in place, the PVC will perfectly regain its initial diameter and fit your pipeline.
The Tapping:
It is also made using a standardized Building PVC Tube (NF) that we thermoform to create a female socket (tulip), allowing you to connect your tapping tube or possibly a male fitting (inspection cap, tee, etc...) with ease.
Once positioned hot, the tapping is permanently welded to the body using a specially developed Professional PVC glue that also guarantees sealing.
During your positioning tests of the saddle before drilling, it may, in some cases, seem not to completely fit the main pipeline. A bit like it is hindered by an asperity. This is quite normal: indeed, the Tapping is sometimes positioned slightly recessed into the saddle body to subsequently favor gravitational flows. Once you have made your drilling (preferably a bit wider than the tapping diameter), it will penetrate the main pipeline, and your saddle will be perfectly in place.
The Installation:
Position the saddle at the intended location and mark the drilling location by passing through the inside of the tapping socket. You can also mark the edges of the saddle to help with repositioning later.
Drill (preferably a bit wider than the initially marked diameter, which then favors gravitational flow). The dimensions of the saddle body allow you a great margin of maneuver.
Glue the inner part of the saddle body with a good PVC GEL glue, then replace the saddle in its final position.
That's it!
Supplier: ESPINOSA
Reference: B221S4125J
3 Items
Data sheet
- Width (cm):
- 13
- Weight (kg) :
- 0.35
- Packaging:
- 1
- Angle and inclination :
- 45
- Main materials :
- PVC
- Warranty:
- 2 years
- Origin:
- made in europe
- Fastening method :
- For gluing
Specific References
- EAN13
- 3661353320008
- EAN-13
- 3661353320008
- Location
- B3-D-092
- Reference to display
- FORSEB221S4125J
- Supplier reference
- B221S4125J
