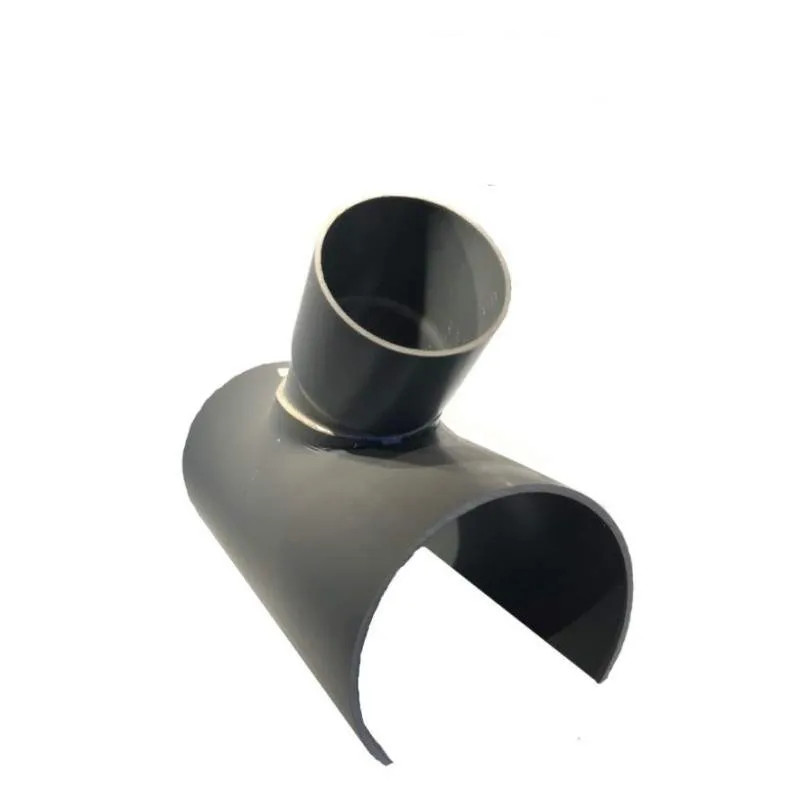

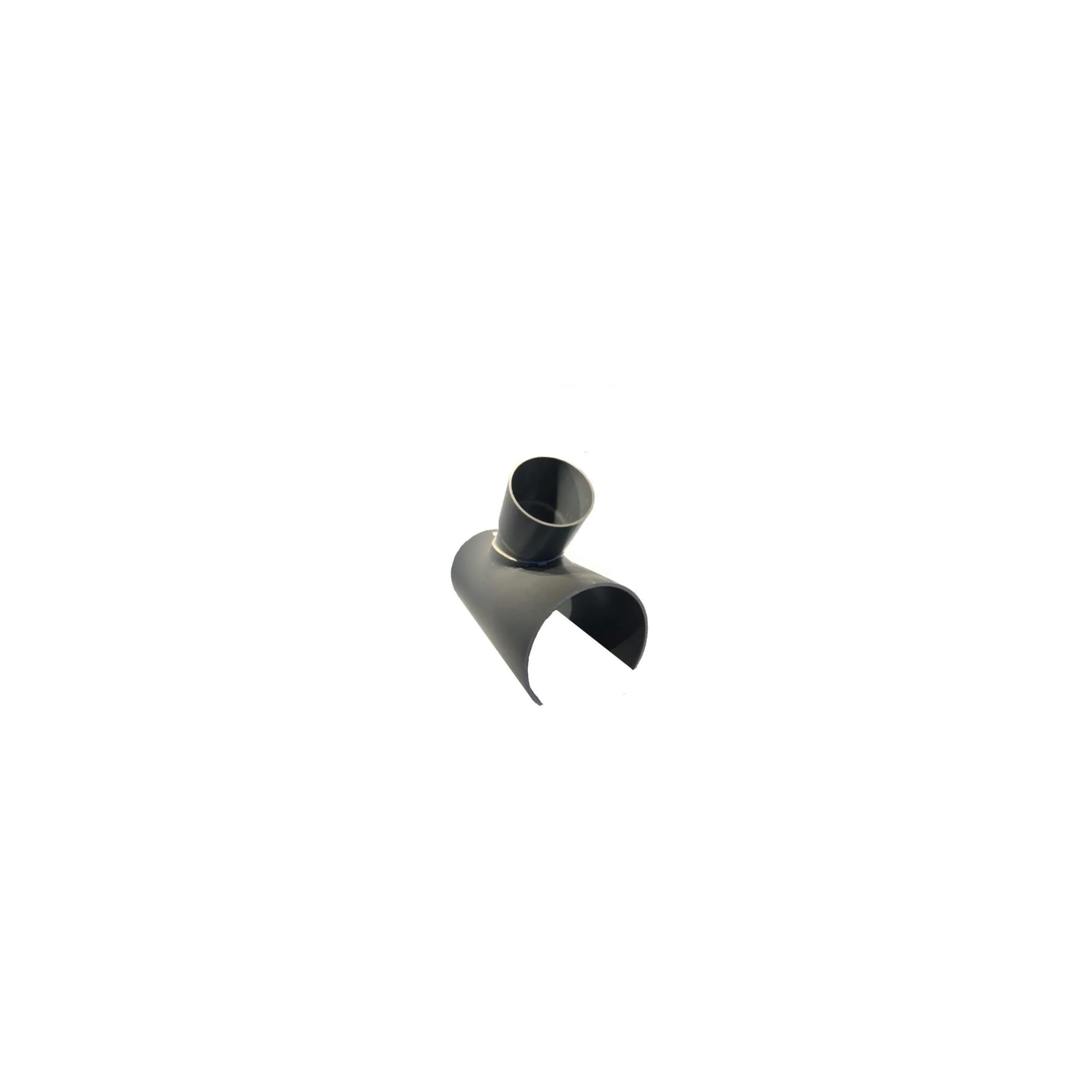

PVC branch saddle 50x50 mm at 45 degrees, 15cm long.
€21.64
Tax Included
(18.03 € HT)
Référence ESPINOSA : B221S4050C
Emplacement magasin : B3-D-092
Opt now for the branch saddle reference B221S4050C from the ESPINOSA brand.
Safety guarantees
Delivery policy
Returns policy
PVC Branch Saddle 50x50 mm at 45 degrees, 15cm long ESPINOSA reference B221S4050C.
Product Type: PVC Fitting to Glue
Description:
PVC fitting to glue allowing very simple connection of a tube to an existing pipeline.
Saddle body of the same diameter as your main pipeline for better adhesion.
45° socket outlet (female)
Principles of a Branch Saddle:
The PVC Branch Saddle is a building fitting allowing easy connection of a drainage tube to a main pipeline without the need to cut, disassemble or completely modify it.
Very practical in renovation, it allows simple and quick connection of a new element (washbasin, kitchen sink, toilet, etc...) to the main network.
For installation, simply drill the pipeline in place with a hole of equal or slightly larger diameter than the tube to be tapped at the desired location, then clip/glue the saddle body by aligning the previously made hole with the tapping. And that's it.
Specificities of Our Shaped Branch Saddles
Manufactured manually by cutting, transforming, then assembling and gluing existing materials, our shaped fittings inevitably have a rougher and less polished aesthetic than an injected fitting. Their technical quality and resistance are nevertheless tested randomly at the end of production in our internal laboratory.
The Saddle Body:
It is made using a Standardized PVC Building Tube (NF), cut and trimmed as necessary along the length. This tube is of equivalent diameter to that of the pipeline on which it will clip. The elasticity of the PVC will allow, during installation, to spread and then return to its initial shape by recovering the play to perfectly fit the support surface.
We deliberately make the body longer than the actual final need, which guarantees you an additional positioning, holding, and gluing surface. You can still perfectly cut it if necessary.
On some saddles, it is sometimes possible that the body diameter seems visually smaller than the final diameter, but in reality, it is not: indeed, PVC is elastic and naturally contracts during cutting or shaping. Once clipped and in place, the PVC will perfectly regain its initial diameter and fit your pipeline.
The Tapping:
It is also made using a Standardized PVC Building Tube (NF) that we thermoform to create a female socket (bell), allowing you to connect your tapping tube or possibly a male fitting (inspection cap, tee, etc...) with ease.
Once positioned hot, the tapping is permanently welded to the body using a specially developed Professional PVC glue that also guarantees tightness.
During your positioning tests of the saddle before drilling, it may, in some cases, seem not to completely fit the main pipeline. A bit like it is hindered by an asperity. This is quite normal: indeed, the Tapping is sometimes positioned slightly recessed into the saddle body, to subsequently favor gravitational flows. Once you have made your drilling (preferably a bit wider than the tapping diameter), it will penetrate into the main pipeline, and your saddle will be perfectly in place.
The Installation:
Position the saddle at the intended location and mark the drilling location by passing through the inside of the tapping socket. You can also mark the edges of the saddle to help with repositioning later.
Drill (preferably a bit wider than the initially marked diameter, which then favors gravitational flow). The dimensions of the saddle body give you a large margin of maneuver.
Glue the inside part of the saddle body with a good PVC GEL glue, then reposition the saddle in its final location.
That's it!
Supplier: ESPINOSA
Reference: B221S4050C
2 Items
Data sheet
- Width (cm):
- 5
- Weight (kg) :
- 0.1
- Packaging:
- 1
- Angle and inclination :
- 45
- Main materials :
- Plastic
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3669583020002
- EAN-13
- 3669583020002
- Location
- B3-D-092
- Reference to display
- FORSEB221S4050C
- Supplier reference
- B221S4050C
