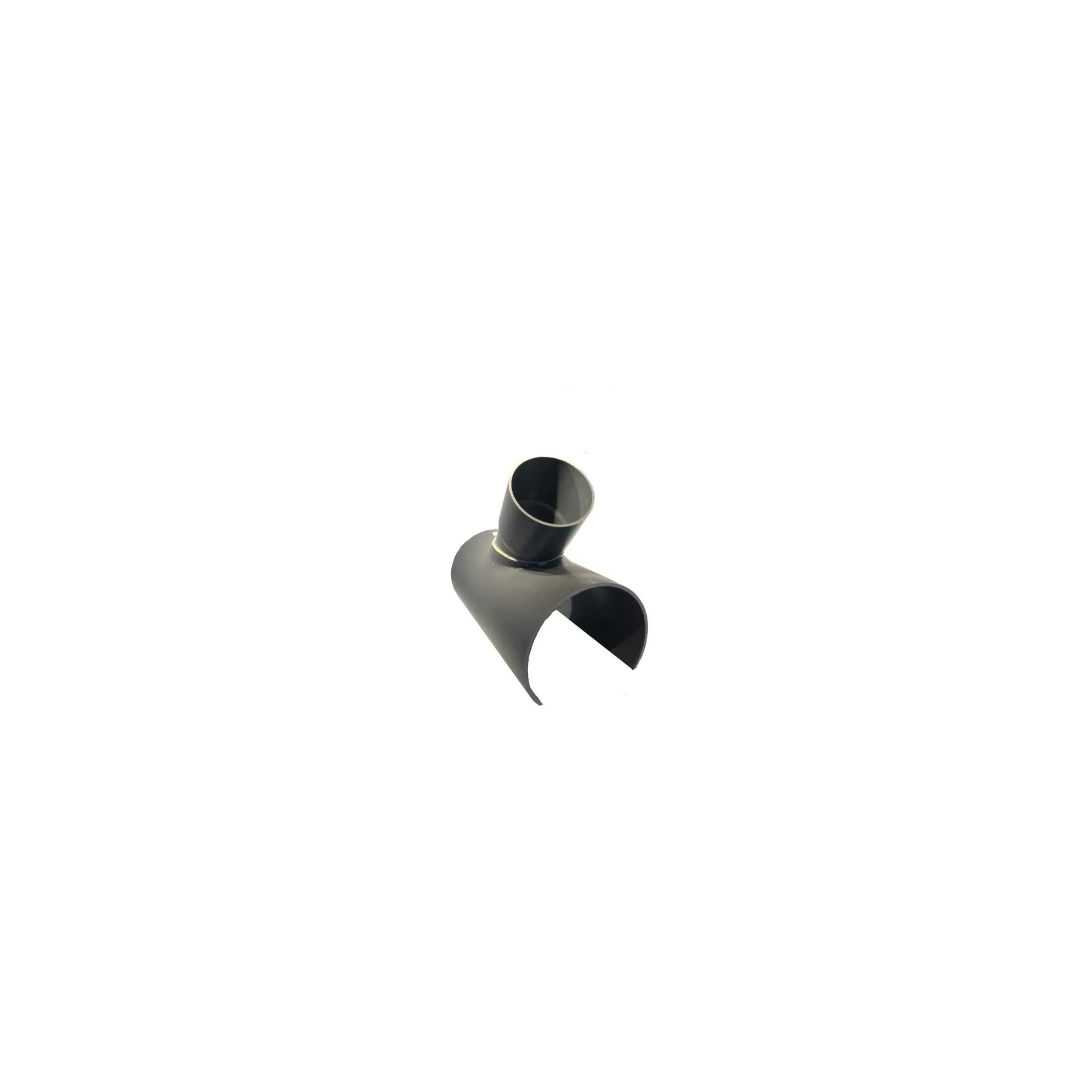

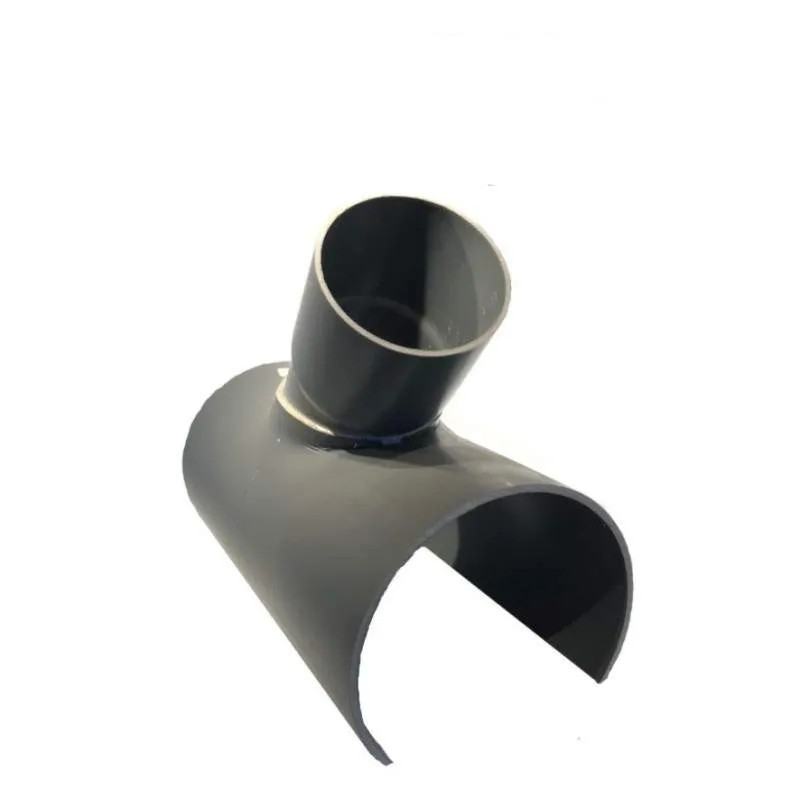

PVC branch saddle 160x140 mm at 45 degrees, length 38cm
€34.56
Tax Included
(28.80 € HT)
Référence ESPINOSA : B221S4160K
Emplacement magasin : B3-D-084
Choose now the branch saddle reference B221S4160K from the brand ESPINOSA.
Safety guarantees
Delivery policy
Returns policy
PVC Branch Saddle 160x140 mm at 45 degrees, 38cm long ESPINOSA reference B221S4160K
Product Type: PVC fitting to glue
Description:
PVC fitting to glue allowing very simply the connection of a tube to an existing pipeline.
Saddle body with a diameter identical to your main pipeline for better adhesion.
45° tulip (female) tapping outlet
Principles of a Branch Saddle:
The PVC Branch Saddle is a building fitting allowing easy connection of a drain tube to a main pipeline without the need to cut, disassemble or completely modify it.
Very practical in renovation, it allows simple and quick connection of a new element (washbasin, kitchen sink, toilet, etc...) to the main network.
For installation, simply drill the pipeline in place with a hole of diameter equal to or slightly larger than the diameter of the tube to be tapped at the desired location, then clip/glue the saddle body by aligning the previously made hole with the tapping. And that's it.
Specificities of Our Shaped Branch Saddles
Manufactured manually by cutting, transforming, then assembling and gluing existing materials, our shaped fittings inevitably have a rougher and less polished aesthetic than an injected fitting. However, their technical quality and resistance are tested randomly at the end of production in our internal laboratory.
The Saddle Body:
It is made using a Standardized PVC Building Tube (NF), cut and trimmed as needed, along the length. This tube is of equivalent diameter to the pipeline on which it will clip. The elasticity of the PVC will allow, during installation, to spread out and then return to its initial shape by recovering the play to perfectly fit the support surface.
We deliberately make the body longer than the actual final need, which guarantees you an additional positioning, holding, and gluing surface. However, you can perfectly cut it again if necessary.
On some saddles, it is sometimes possible that the diameter of the body seems visually smaller than the final diameter, but in reality, it is not: indeed, PVC is elastic and naturally contracts during cutting or shaping. Once clipped and in place, the PVC will perfectly regain its initial diameter and fit your pipeline.
The Tapping:
It is also made using a Standardized PVC Building Tube (NF) that we thermoform to create a female socket (tulip), allowing you to connect your tapping tube or possibly a male fitting (inspection cap, tee, etc...) with ease.
Once positioned hot, the tapping is permanently welded to the body using a specially developed Professional PVC glue that also guarantees sealing.
During your positioning tests of the saddle before drilling, it may, in some cases, seem not to completely fit the main pipeline. A bit as if it were hindered by a roughness. This is quite normal: indeed, The Tapping is sometimes positioned slightly recessed into the saddle body, to subsequently promote gravitational flows. Once you have made your drilling (preferably a little wider than the tapping diameter), it will penetrate into the main pipeline, and your saddle will be perfectly in place.
The Installation:
Position the saddle at the intended location and mark the drilling location by passing through the inside of the tapping socket. You can also mark the edges of the saddle to help with repositioning later.
Drill (preferably a little wider than the initially marked diameter, which then promotes gravitational flow). The dimensions of the saddle body give you a large margin of maneuver.
Glue the inner part of the saddle body with a good PVC GEL glue, then replace the saddle in its final position.
That's it!
Supplier: ESPINOSA
Reference: B221S4160K
2 Items
Data sheet
- Weight (kg) :
- 0.5
- Packaging:
- 1
- Angle and inclination :
- 45
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3662412630007
- EAN-13
- 3662412630007
- Location
- B3-D-084
- Reference to display
- FORSEB221S4160K
- Supplier reference
- B221S4160K
