Grille motorisée mono bouche 75m3/h, blanc

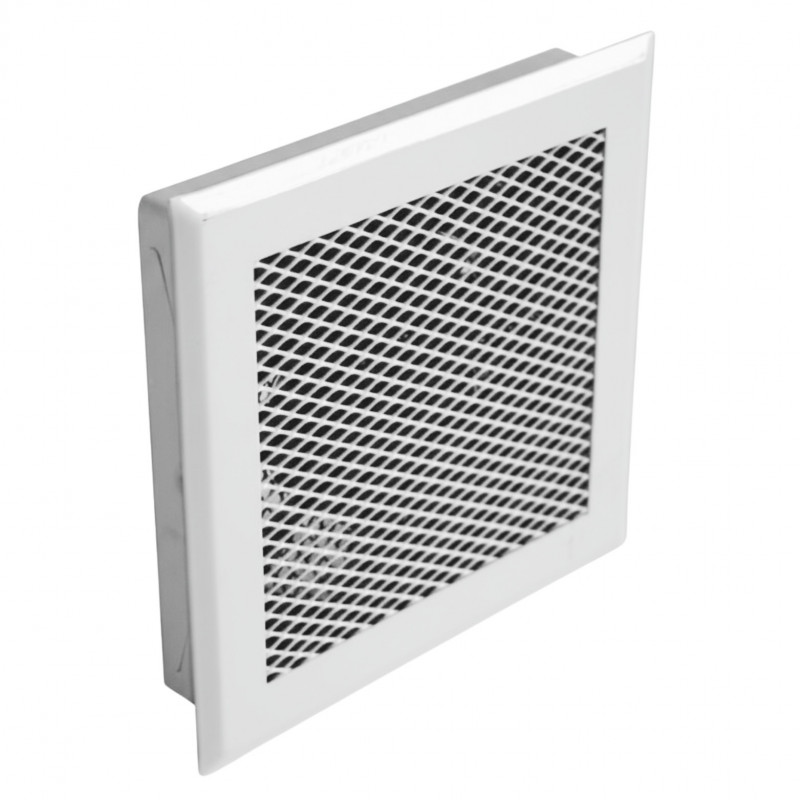

Motorized blowing grille single outlet 75m3/h, white AUTOGYRE - Reference 92195

The motorized blowing grille single outlet 75 m3/h white AUTOGYRE MONO RAC is an essential accessory for a closed fireplace. It allows the warm air from the hood to be distributed in the room, homogenizes the temperature, optimizes the efficiency of the fireplace, and limits the accumulation of heat in the hood. Its neat design, compactness, and low thickness facilitate its integration.

Equipped with a high-temperature axial motor placed directly in the airflow, it reduces bulk. Its high-efficiency motor ensures low consumption and very low noise level. Delivered ready to install, it features a self-supporting clip-on structure and a low weight contributing to the stability of the hood. A 2 m high-temperature pre-wiring is provided to route the power supply into the volume of the chimney and connect the unit to the mains.

Designed for a hood with a temperature not exceeding 120 °C, it must be used with a closed fireplace installed in accordance with DTU 24.2, particularly with convection air inlets of at least 400 cm2 and hot air outlet from the hood of at least 500 cm2, values that may be higher according to the manufacturer's recommendations for the fireplace. The MONO RAC does not replace a hot air outlet grille from the hood and its air passage area should not be considered in the sizing of the convection system.

• Product type: Motorized blowing grille for closed fireplace
• Model: Single outlet
• Injected flow: 75m3/h
• Overall dimensions (L x H x D): 172 x 172 x 30 mm
• Recessed dimensions (w x h): 154 x 154 mm
• Power supply and electrical power: 230 V - 50 Hz - 9 W
• Noise level at 3 m: 24 dB(A)
• Automatic On/Off: Factory preset (on at 40°C and off at 30°C)
• Operating temperature: 120°C
• Material: Galvanized steel with epoxy coating
• Supplied accessories: 2 m high-temperature cable
• Color: White
• Manufacturer: Autogyre
• Reference: 92195
