Jetly 010150

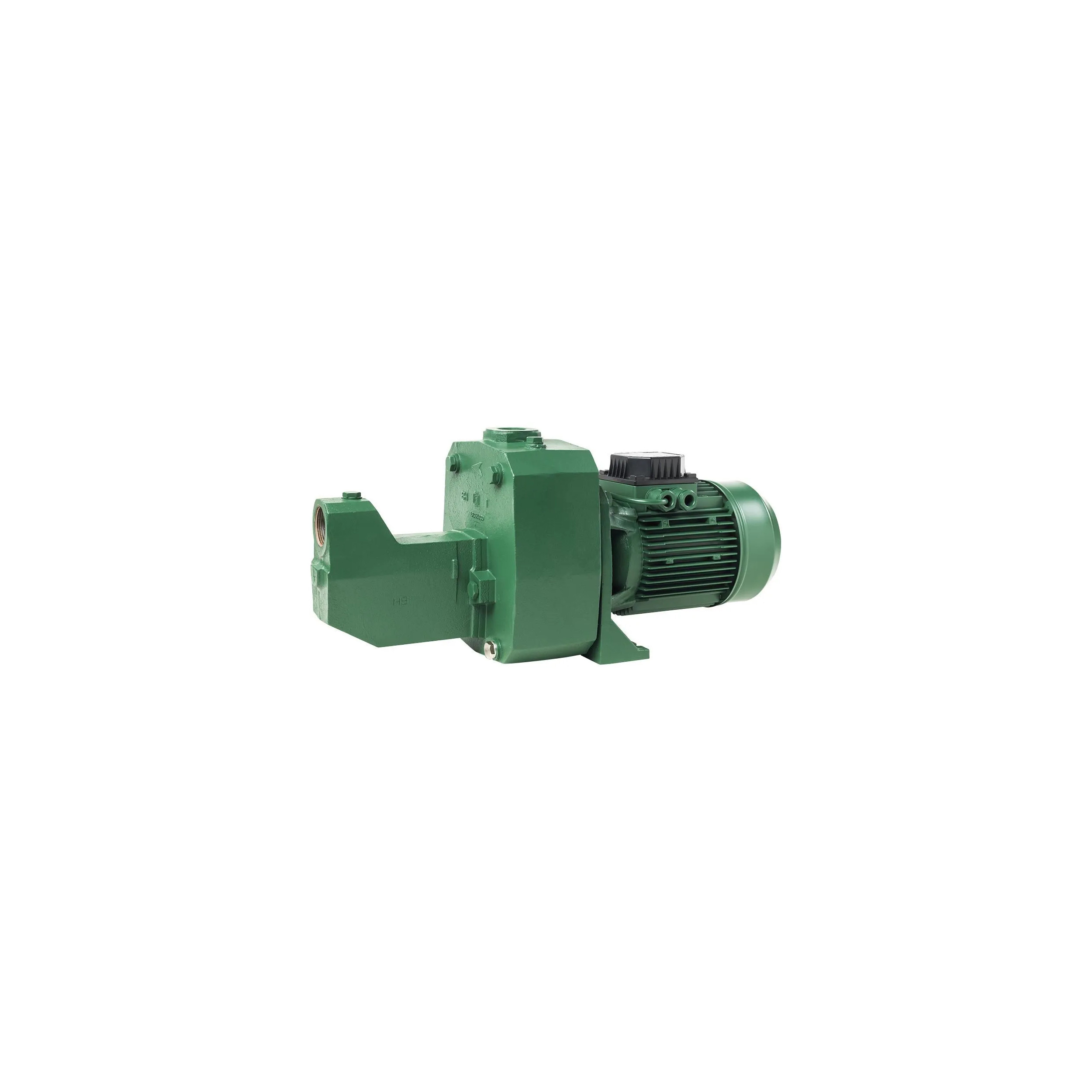

Jet 151 Mono surface pump
General characteristics:
Self-priming centrifugal pumps with built-in JET system (venturi injector), with high suction capacity,
even in the presence of water containing air bubbles.
Particularly suitable for domestic, agricultural and industrial pressure boosting with bladder tanks.
They are indispensable when it comes to sucking on artesian wells.
TWO-STAGE JET 151-251 SINGLE-STAGE JET 200-300
Pump
Pump body and motor support in treated cast iron
anti-corrosion even on the internal surface.
Impeller, diffuser, venturi tube and injector made of
Technopolymer A (2 turbines on JET 151-251).
Shaft and wheel arch ringed in stainless steel.
Carbon/Ceramic mechanical seal.
Engine
Asynchronous, closed type, with cooling
by external fan.
Rotor mounted on ball bearings, greased for life
and selected to guarantee duration and silence.
Fan cover in galvanized and painted sheet metal.
Thermo-amperometric protection and capacitor
permanent incorporated in the single-phase version.
User chargeable protection for the three-phase version
according to the standards in force.
Construction according to IEC 2 - 3 / IEC 61 - 69
(EN 60335-2-41).
Motor protection class: IP 44.
Terminal box protection rating: IP 55.
Insulation class: F.
Standard voltages: single-phase 220/240 V - 50 Hz,
three-phase 230/400 V - 50 Hz.
IE 2 high efficiency three-phase motor from 0.75 kW.

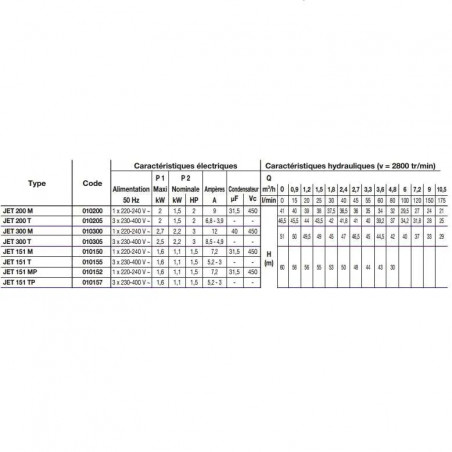

Technical specifications:
Range of use: from 0.6 to 10.5 m3
/h with height
up to 62 meters W.C.
Pumped liquid: clean, without solids or abrasives,
non-viscous, non-aggressive, non-crystallised and chemically
neutral, close to the characteristics of water.
Liquid temperature range :
0 °C to + 35 °C for domestic use (EN 60335-2-41).
0 °C to + 40 °C for other applications.
Maximum ambient temperature: + 40 °C.
Maximum working pressure: 8 bar (800 kPa).
Installation: fixed in horizontal position.
Item code | 010150 |
---|---|
Power supply voltage in Volts | Mono 230 |
Power KW (Unit.) | 1,1 |
Absorbed unit amperage (A.) | 7,2 |
Flow rate/pressure (M3h./bars) | 3.6 / 4.3 |
Capacitor in µF. | 31,5 |
Suction diameter | F.1" 1/4 |
Discharge diameter | F.1" |

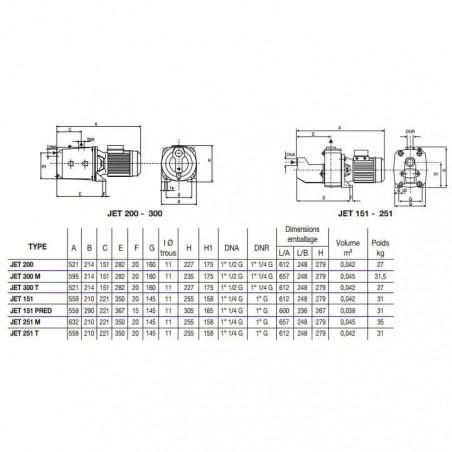

Length in mm | 558 |
Width in mm | 210 |
Height in mm | 255 |
Gross weight (KG.-Packed) | 23 |
+ More info. on our documents | Yes, see attached list |
Factory colour code | Green RAL 6001 |
