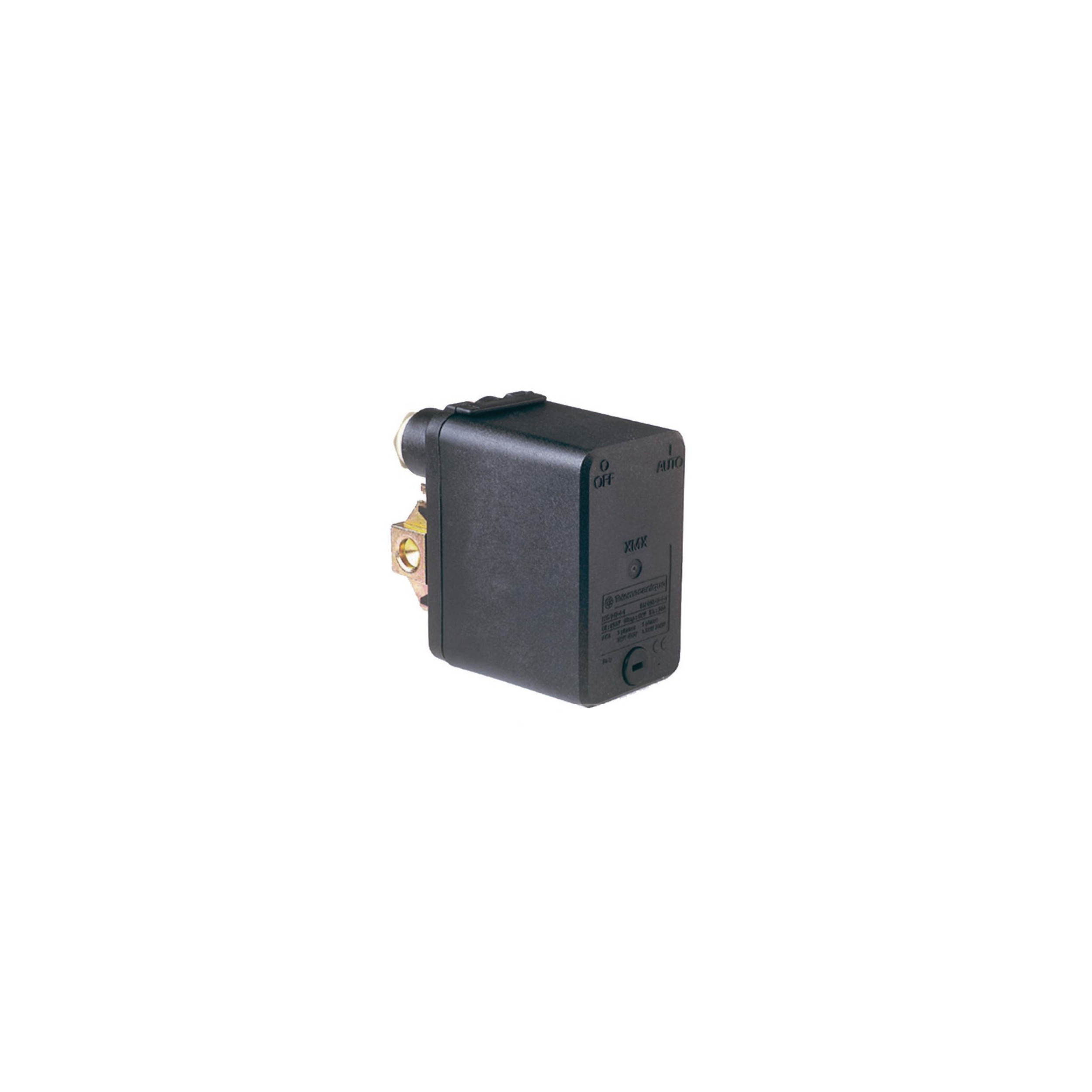

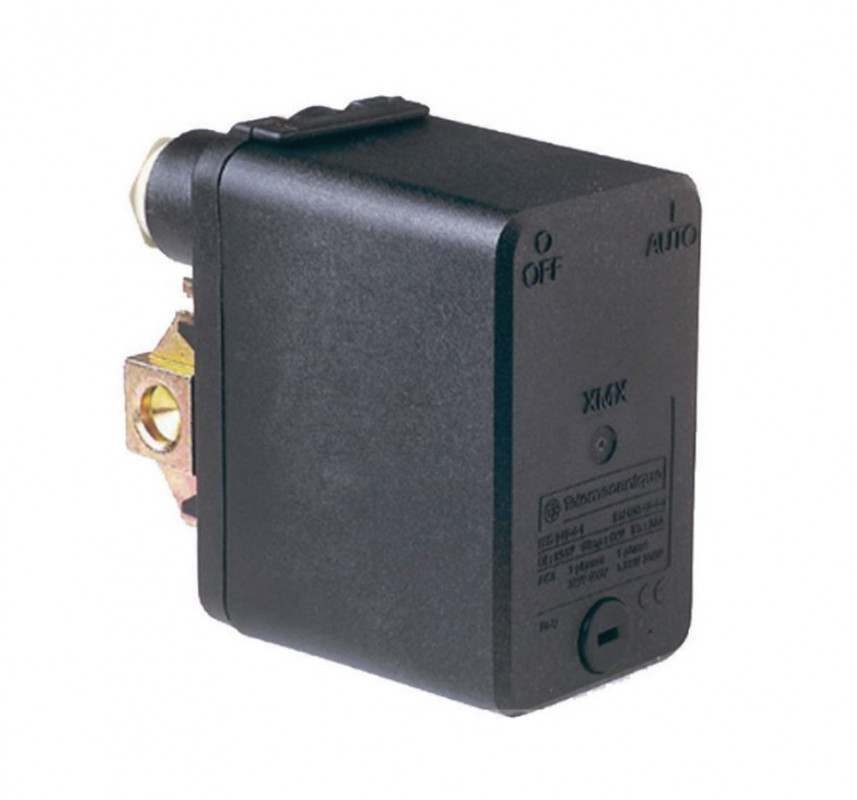

XMX inverted pressure switch with pressure gauge connection

XMX inverted pressure switch with JETLY manometer socket part no. 412560

- Product type: pumping system accessory, XMX inverted pressure switch.

- Description:

The XMX pressure switch is an adjustable-gap control circuit pressure switch used to control water and air pressure up to 6 or 11 bar.

It enables an electric pump to be switched on and off at a set pressure between two switch-on and switch-off thresholds.

The XMX pressure switch is referred to as reversed because it is fitted with a changeover contact, it is used in water shortage safety and stops the pump in the event of a lack of pressure in the suction pipework of a booster set connected to the mains water supply.

- General characteristics :

IP 54 glass-filled polycarbonate housing.

Nitrile fabric membrane.

1 single-pole "O - F" snap-action contact.

Complies with CE standards IEC/EN 60947-4-1.

Pressure gauge connection.

Equipped with 2 pre-set cable glands and supplied in individual box with operating instructions.

- Technical specifications :

Ambient air temperature : - 25 to + 70°C.

Fluids controlled: air, fresh water, seawater (-25 to +70°C).

All-position operation.

Operating frequency: 600 operations/hour.

Minimum insulation voltage: 500 V.

For remote control use only. Direct control prohibited: use DRT LE1, PROTEC 2... control box.

Electrical connection on screw clamp terminals.

Hydraulic connection: F1/4" on MCS 11 and MCS22 , F1/2" on XMX.

Max engagement: 4.8 bar.

Min engagement: 0.2 bar.

Max tripping: 6 bar.

Min. trip: 1 bar.

Max deviation: 4.2 bar.

Min. deviation: 0.8 bar.

Factory settings: 0.5 - 1.5 bar.

- Supplier : JETLY.

- Reference : 412560.
