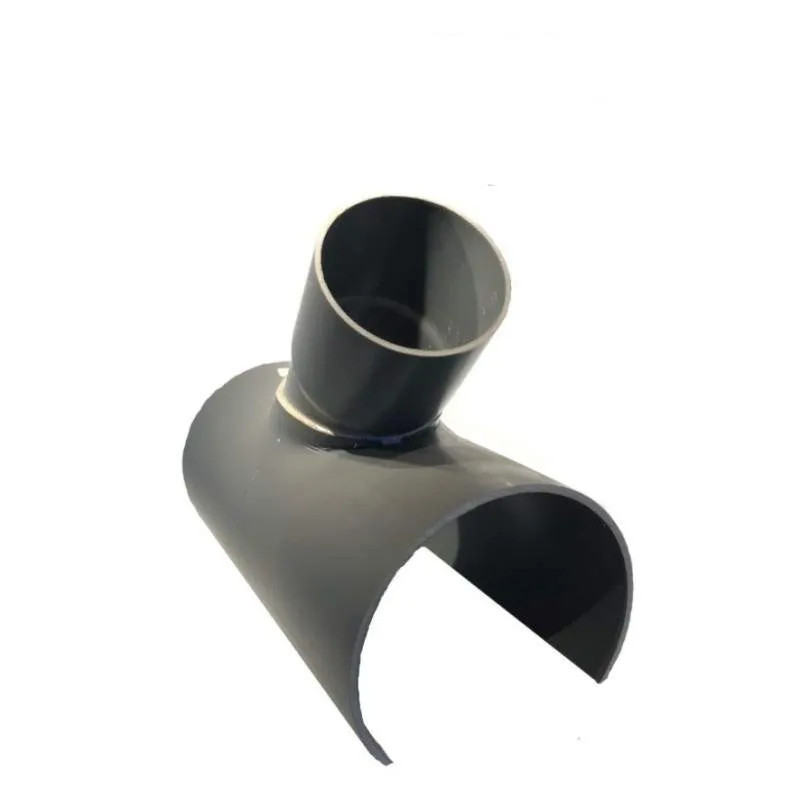

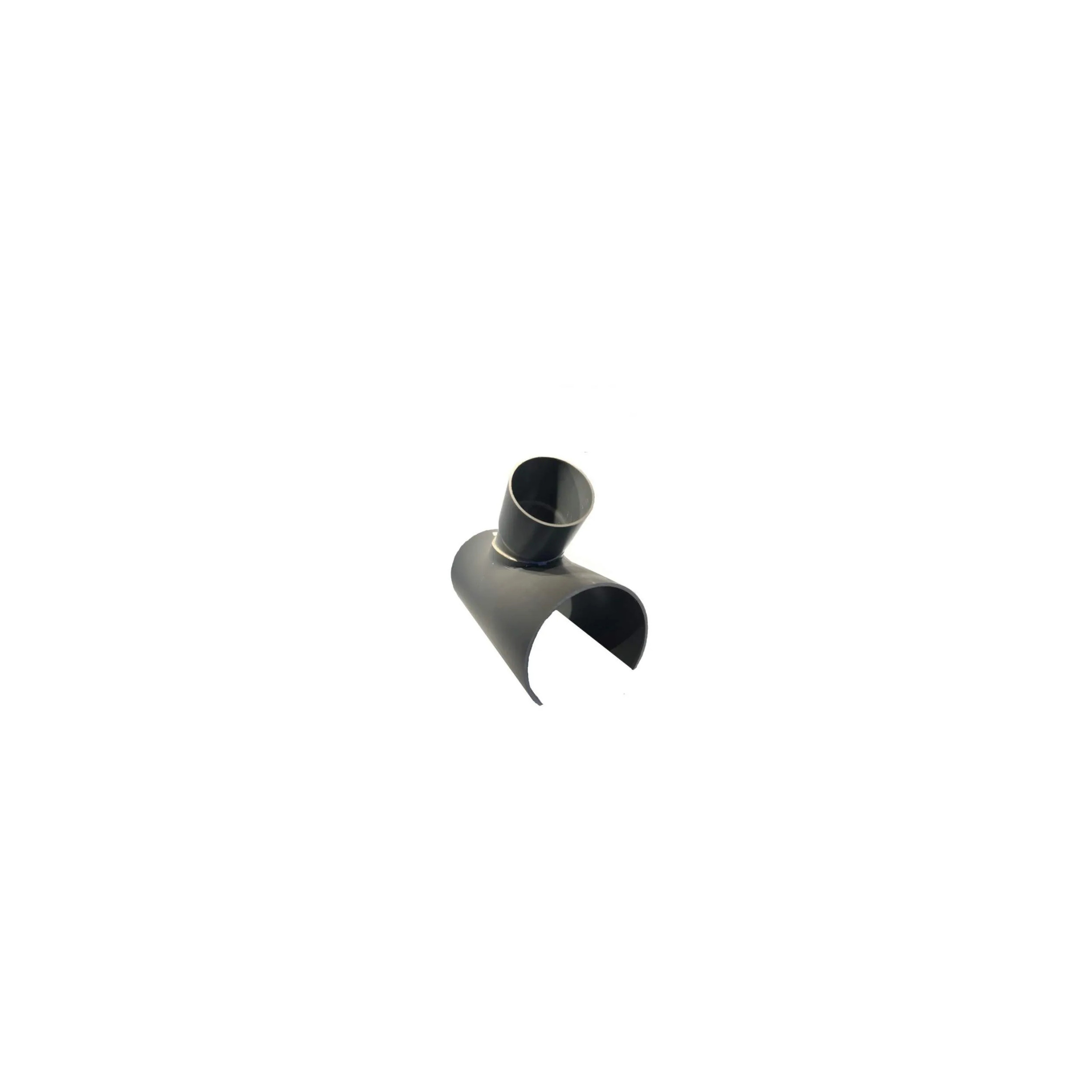

PVC saddle branch 100x100 mm at 45 degrees, 30cm long
€30.01
Tax Included
(25.01 € HT)
Référence ESPINOSA : B221S4100H
Emplacement magasin : B3-D-094
Choose now the branch saddle reference B221S4100H from the brand ESPINOSA.
Safety guarantees
Delivery policy
Returns policy
PVC Branch Saddle 100x100 mm at 45 degrees, 30cm long ESPINOSA reference B221S4100H
Product Type: PVC glue fitting
Description:
PVC glue fitting allowing very simple connection of a tube to an existing pipeline.
Saddle body with a diameter identical to your main pipeline for better adhesion.
45° tulip-shaped (female) tapping outlet
Principles of a Branch Saddle:
The PVC Branch Saddle is a building fitting allowing easy connection of a drainage tube to a main pipeline without the need to cut, disassemble, or completely modify it.
Very practical in renovation, it allows simple and quick connection of a new element (washbasin, kitchen sink, toilet, etc...) to the main network.
For installation, simply drill the pipeline in place with a hole of equal or slightly larger diameter than the tube to be tapped at the desired location, then clip/glue the saddle body by aligning the previously made hole with the tapping. And that's it.
Specificities of Our Shaped Branch Saddles
Manufactured manually by cutting, transforming, then assembling and gluing existing materials, our shaped fittings naturally have a rougher and less polished aesthetic than an injected fitting. Their technical quality and resistance are nevertheless tested randomly at the end of production in our internal laboratory.
The Saddle Body:
It is made using a Standardized Building PVC Tube (NF), cut and trimmed as necessary along the length. This tube is of a diameter equivalent to that of the pipeline on which it will clip. The elasticity of the PVC will allow, during installation, to spread out and then return to its original shape by recovering the play to perfectly fit the support surface.
We deliberately make the body longer than the actual final need, which guarantees you an additional positioning, holding, and gluing surface. You can still perfectly cut it back if necessary.
On some saddles, it is sometimes possible that the diameter of the body seems visually smaller than the final diameter, but in reality, it is not: indeed, PVC is elastic and naturally contracts during cutting or shaping. Once clipped and in place, the PVC will perfectly regain its initial diameter and fit your pipeline.
The Tapping:
It is also made using a Standardized Building PVC Tube (NF) that we thermoform to create a female socket (tulip), allowing you to connect your tapping tube or possibly a male fitting (inspection cap, tee, etc...) with ease.
Once positioned hot, the tapping is permanently welded to the body using a specially developed Professional PVC glue that also guarantees tightness.
During your positioning tests of the saddle before drilling, it may, in some cases, seem not to completely fit the main pipeline. A bit like it is hindered by a roughness. This is perfectly normal: indeed, the Tapping is sometimes positioned slightly recessed into the saddle body to subsequently promote gravitational flows. Once you have made your drilling (preferably a bit wider than the tapping diameter), it will penetrate the main pipeline, and your saddle will be perfectly in place.
The Installation:
Position the saddle at the intended location and mark the drilling location by passing through the inside of the tapping socket. You can also mark the edges of the saddle to help with repositioning later.
Drill (preferably a bit wider than the initially marked diameter, which then promotes gravitational flow). The dimensions of the saddle body allow you great maneuverability.
Glue the inner part of the saddle body with good PVC GEL glue, then reposition the saddle in its final location.
That's it!
Supplier: ESPINOSA
Reference: B221S4100H
6 Items
Data sheet
- Weight (kg) :
- 0.3
- Packaging:
- 1
- Angle and inclination :
- 45
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3667006400004
- EAN-13
- 3667006400004
- Location
- B3-D-094
- Reference to display
- FORSEB221S4100H
- Supplier reference
- B221S4100H
